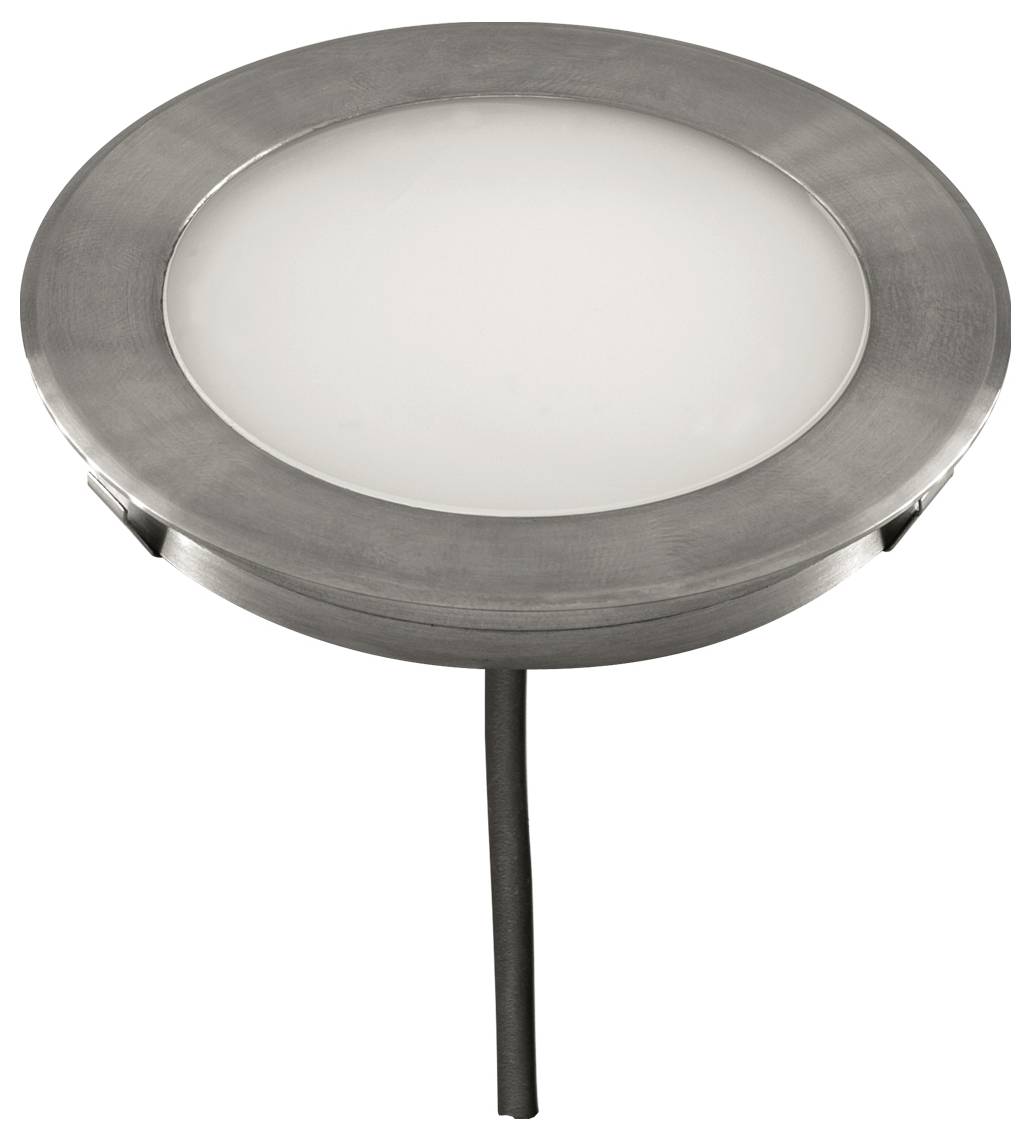

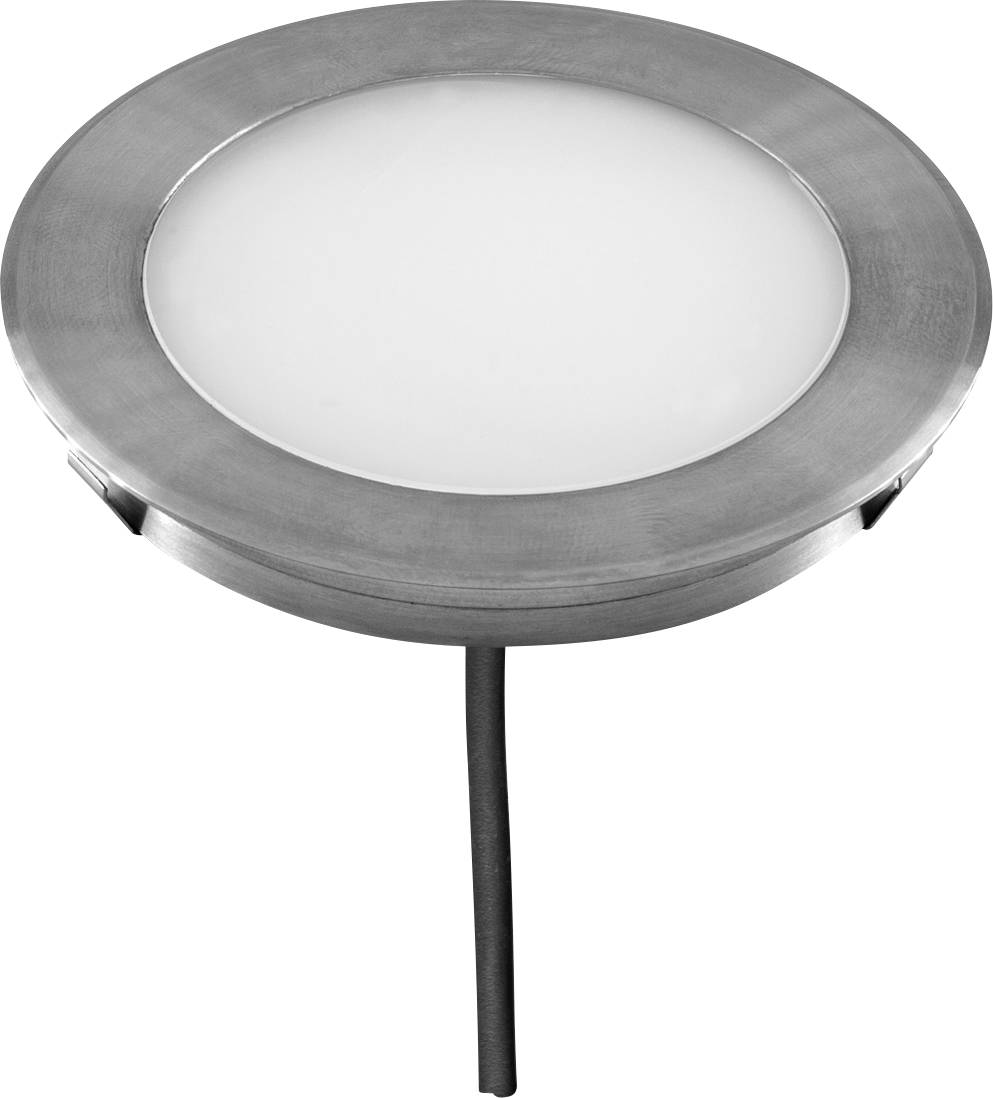

EVN L67101502 L67101502 Recessed floor light Built-in LED LED (monochrome) 1.5 W Stainless steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED sunken ground light, IP67
- Power= 1.5 W
- Total luminous flux= 47 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Product type
Recessed floor light
- Operating voltage
12 V DC

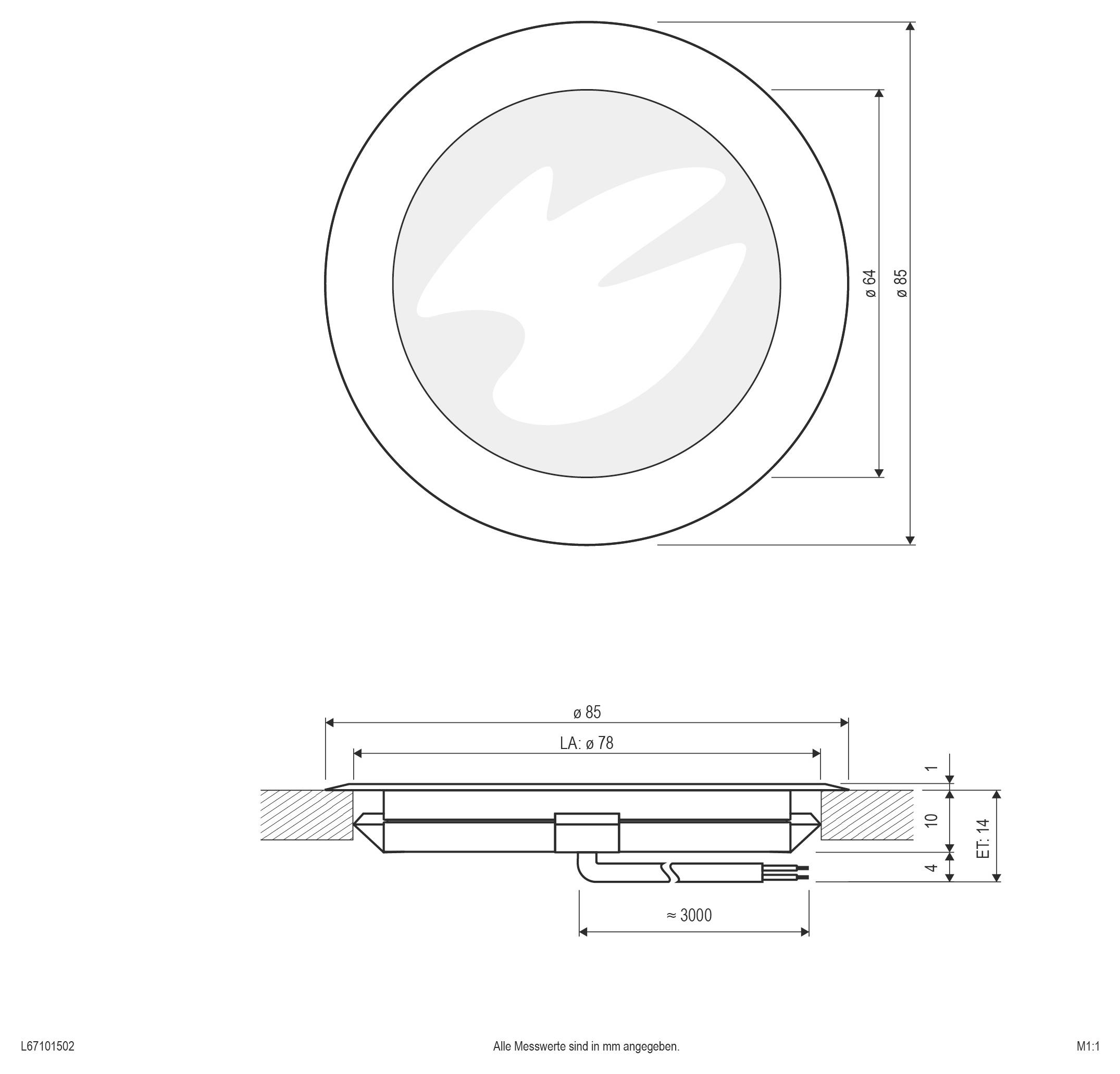

- Outside Ø
85 mm
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
1.5 W
1.5 W
3000 K
- Colour
Warm white
47 lm
- Total luminous flux
47 lm
- Recess diameter
78 mm
- Recess depth
14 mm
- Light features
Dimmable
- Protection class
III
IP67
- Factory colour
Stainless steel
- Material
Steel (stainless)
- Feed length
3 m
n.rel.
- Radiation angle
80°
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
15 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483864 EVN L67101502 L67101502 Recessed floor light Built-in LED LED (monochrome) 1.5 W Stainless steel
User & Safety Instructions
User & Safety Instructions 2483864 EVN L67101502 L67101502 Recessed floor light Built-in LED LED (monochrome) 1.5 W Stainless steel
Description
Both the lamp body and the lamp head are made of V4A stainless steel. Due to the given power, the lamp is perfectly suitable for orientation lighting, patio lighting and much more. Due to the extremely flat design and the low installation depth associated with it, as well as THE MM marking, the lamp is perfectly suitable for use e.g. in terrace panels. Since the LED chip is permanently installed, there is no additional cost for bulbs. A 3M long connection cable with free wire ends is attached to the lamp. The beam angle is 120°. The type of dimming depends on the power supply used.
