Name: EVN LA120125 LA120125 LED ceiling light LED (monochrome) 12 W White
Brand: EVN
SKU: 2483869

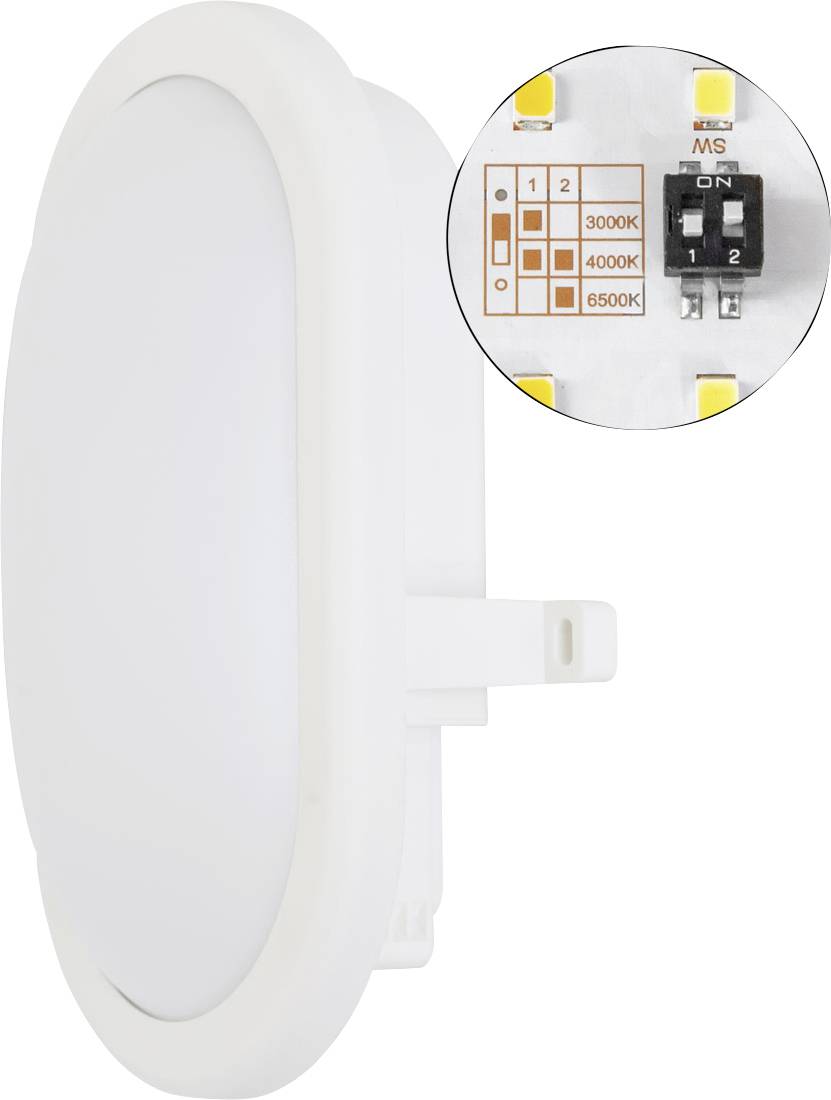

Round white recessed LED panel light with inset image showing a 2-switch color temperature selector labeled 3000K, 4000K, and 6500K.

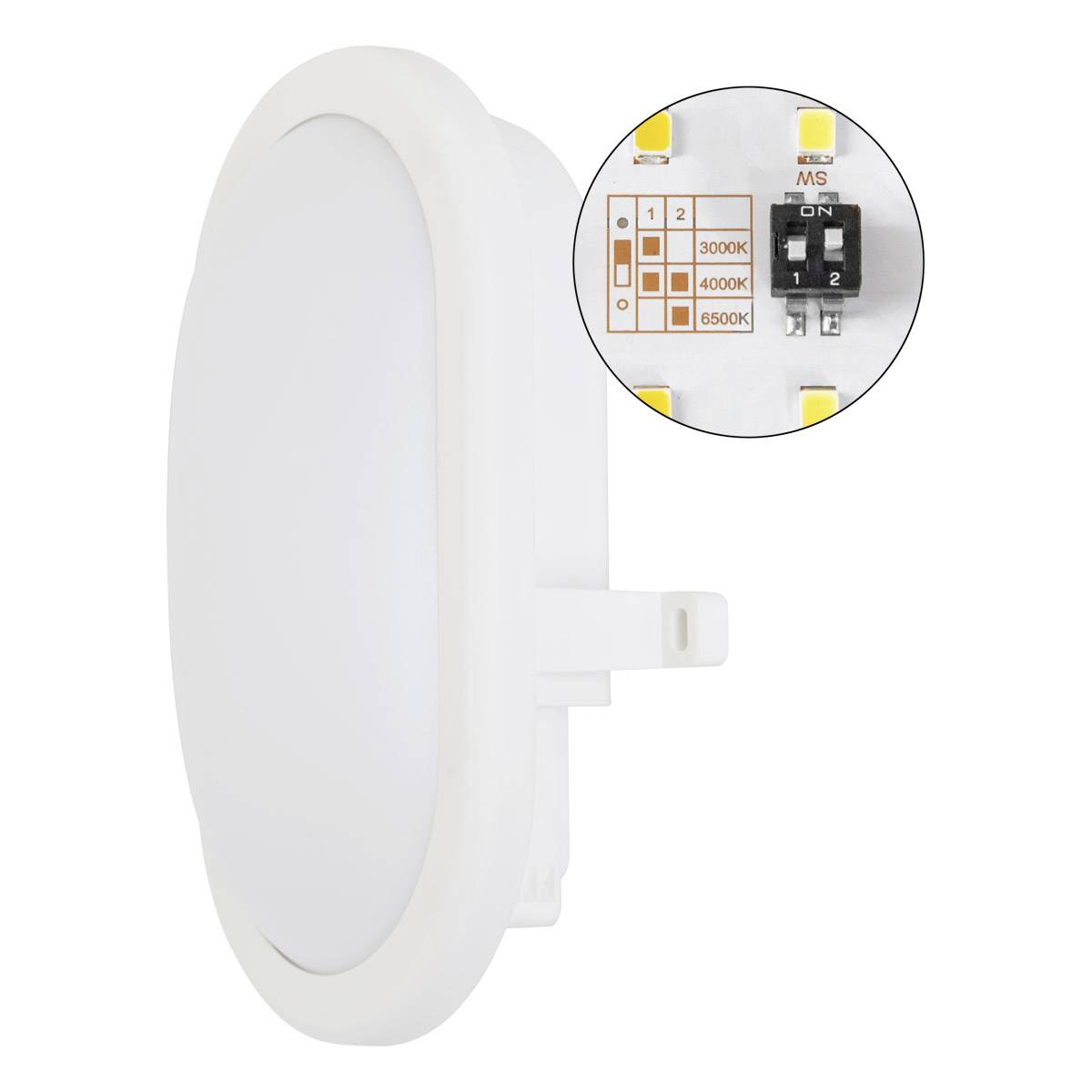

An oval white LED lamp with an inset showing a switch for color temperature settings: 3000K, 4000K, 6500K.

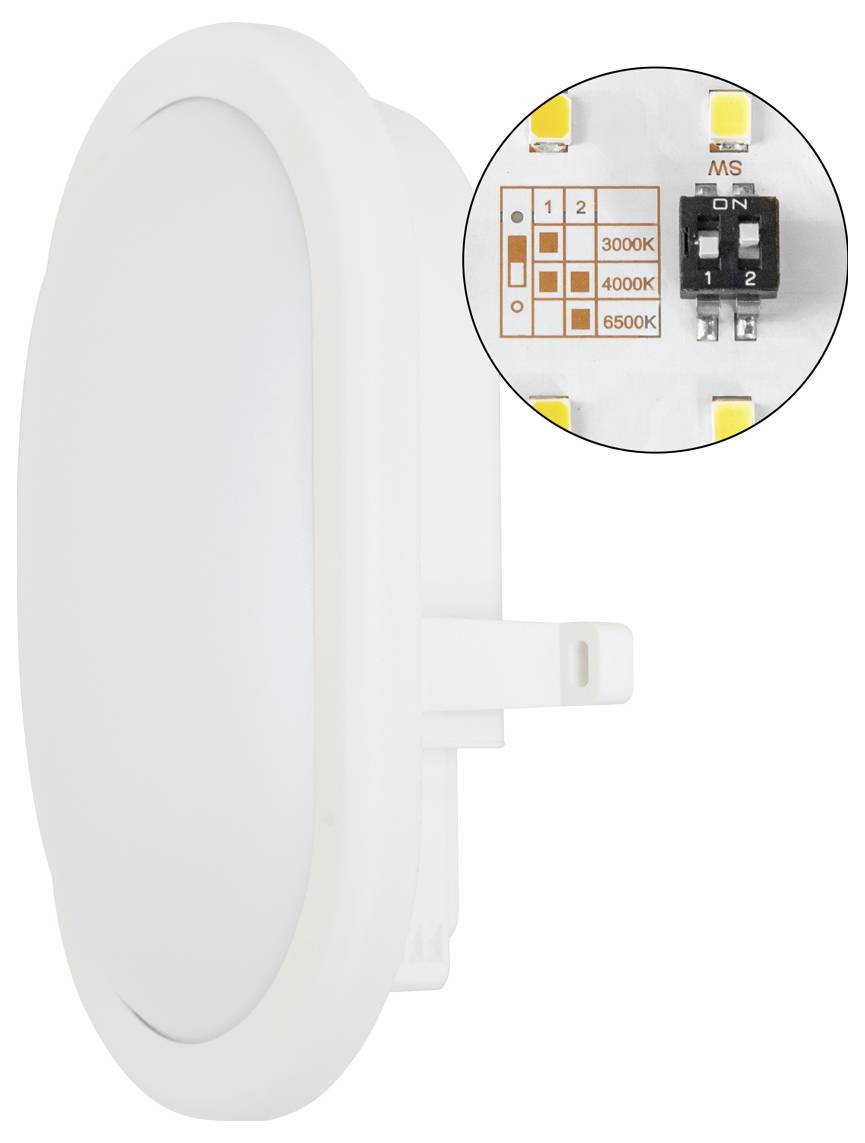

White round LED panel light with side spring clip and inset showing adjustable color temperature switch labeled 3000K, 4000K, 6500K.

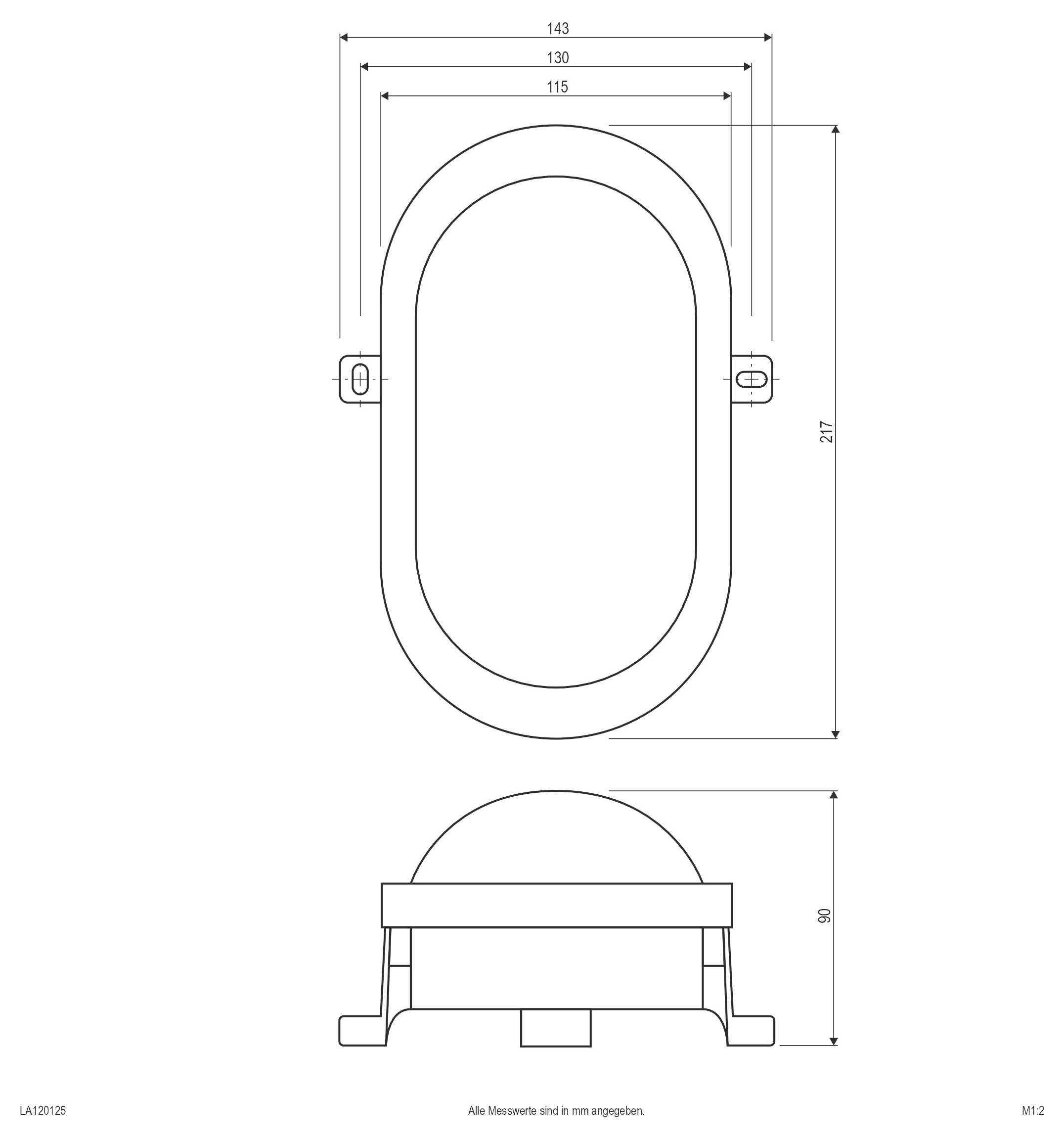

Technical drawing of an oval fixture showing top and side views with dimensions in millimeters: 143 wide, 217 high, 90 deep.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Oval LED-mounted lamp, IP54

Power= 12 W
Total luminous flux= 965 lm
Colour temperature= 6500 K
Warm white to daylight white

Technical specifications

Dim: (L x W x H) 217 x 143 x 79 mm

Operating voltage: 220 V
240 V

Product type: LED ceiling light

Width: 143 mm

Bulb type: LED (monochrome)

Height: 79 mm

Length: 217 mm

Rating per bulb: 12 W

: 12 W

Light features: Suitable for wall mounting

Protection class: II

: IP54
IK06

Factory colour: White

Material: Plastic

: n.rel.

Colour: Warm white to daylight white

Light bulb included: Yes

: 6500 K

Colour temperature (max.): 6500 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 6500 K

Total luminous flux: 965 lm

: 965 lm

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Bulb type

Dim

Factory colour

Light features

Power

Product type

EVN AL20100102 AL20100102 LED ceiling light LED (monochrome) 10 W White

Item no:2483542

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 80 mm x 130 mm

White

Dimmable

10 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL20100902 AL20100902 LED ceiling light LED (monochrome) 10 W Black

Item no:2483543

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 80 mm x 130 mm

Black

Dimmable

10 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL20180902 AL20180902 LED ceiling light LED (monochrome) 18 W Black

Item no:2483545

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 80 mm x 160 mm

Black

Dimmable

18 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL54100102 AL54100102 LED ceiling light LED (monochrome) Built-in LED 10 W White

Item no:2483546

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x H) 70 mm x 100 mm

White

10 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL54101502 AL54101502 LED ceiling light LED (monochrome) Built-in LED 10 W Anthracite

Item no:2483547

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x H) 70 mm x 100 mm

Anthracite

10 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54130125 ALG54130125 LED ceiling light LED (monochrome) 13 W White

Item no:2483548

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x H) 213 mm x 129 mm

White

Incl. switch

13 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54131525 ALG54131525 LED ceiling light LED (monochrome) 13 W Anthracite

Item no:2483549

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x H) 213 mm x 129 mm

Anthracite

Colour-changing

13 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54250125 ALG54250125 LED ceiling light LED (monochrome) 25 W White

Item no:2483550

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 213 mm x 129 mm

White

Incl. switch

25 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54251525 ALG54251525 LED ceiling light LED (monochrome) 25 W Anthracite

Item no:2483551

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 213 mm x 129 mm

Anthracite

Colour-changing

25 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALQ250102 ALQ250102 LED ceiling light LED (monochrome) 12 W White

Item no:2483552

Unavailable

Conrad Electronic

LED (monochrome)

(L x W x H) 250 x 250 x 33 mm

White

Suitable for wall mounting

12 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2483869 EVN LA120125 LA120125 LED ceiling light LED (monochrome) 12 W White

User & Safety Instructions

User & Safety Instructions 2483869 EVN LA120125 LA120125 LED ceiling light LED (monochrome) 12 W White

Description

The LED wall light is completely made of plastic and is provided with a large plastic frosted glass cover. Due to the degree of protection, it can be used in all rooms, even in damp rooms. The switch on the rear side can be used to set one of three possible color temperatures. The possible color temperatures and resulting lumen are: 3000K (920lm), 4000K (965lm) and 6500K (940lm). For easier installation when using several lights, these have three openings for through-wiring.
