EVN LD3102 LD3102 Recessed floor light Bulb cannot be changed LED (monochrome) 0.2 W Stainless steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED light point for indoor and outdoor, IP68
- Power= 0.2 W
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Product type
Recessed floor light
- Operating voltage
12 V DC

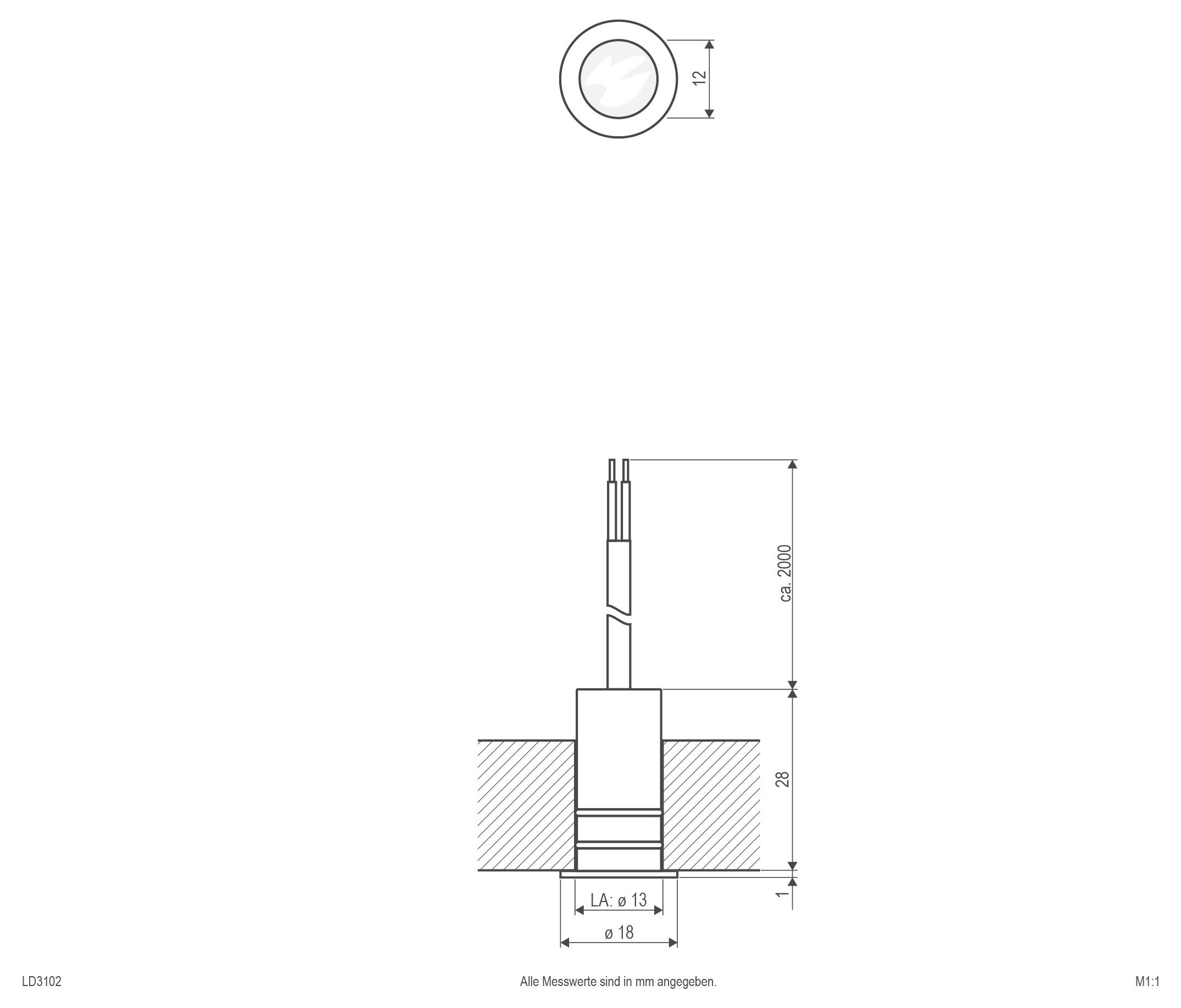

- Outside Ø
18 mm
- Bulb type
LED (monochrome)
Bulb cannot be changed
- Rating per bulb
0.2 W
0.2 W
3000 K
- Colour
Warm white
- Recess diameter
13 mm
- Recess depth
33 mm
- Protection screen
Textured
- Protection class
III
IP68
- Factory colour
Stainless steel
- Material
Steel (stainless)
- Feed length
2 m
n.rel.
- Radiation angle
80°
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
29 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483890 EVN LD3102 LD3102 Recessed floor light Bulb cannot be changed LED (monochrome) 0.2 W Stainless steel
User & Safety Instructions
User & Safety Instructions 2483890 EVN LD3102 LD3102 Recessed floor light Bulb cannot be changed LED (monochrome) 0.2 W Stainless steel
Description

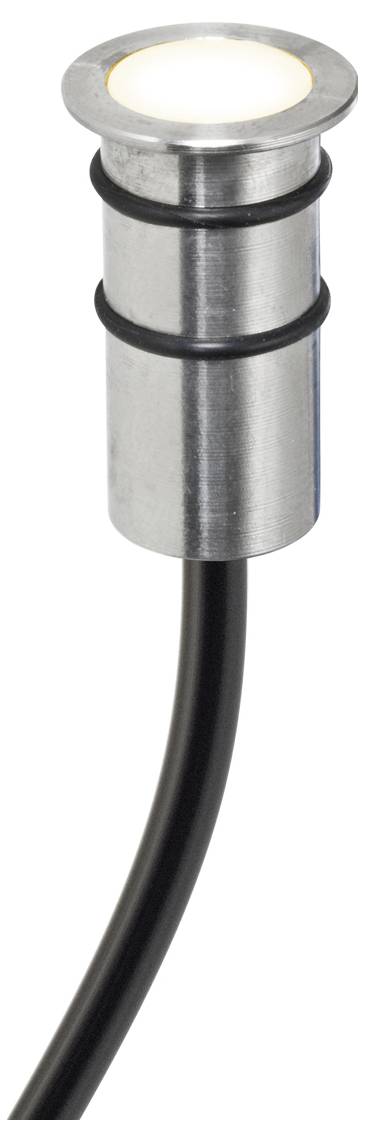

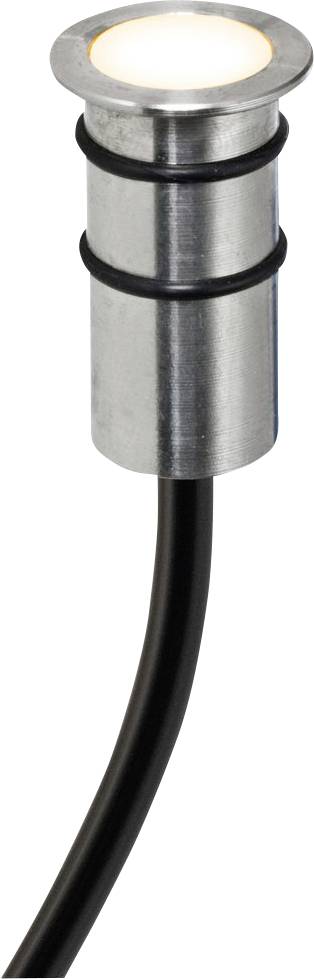

Small light point for various applications in indoor and outdoor areas. DUE to THE MM marking, this can even be used in furniture construction. Extremely low power consumption and still enough luminosity to set optical accents, such as Sidewalls of stairs, in the terrace floor and much more. The light point is completely made of stainless steel and has a 2m long connection cable with free wire ends. The type of dimming depends on the power supply used.
