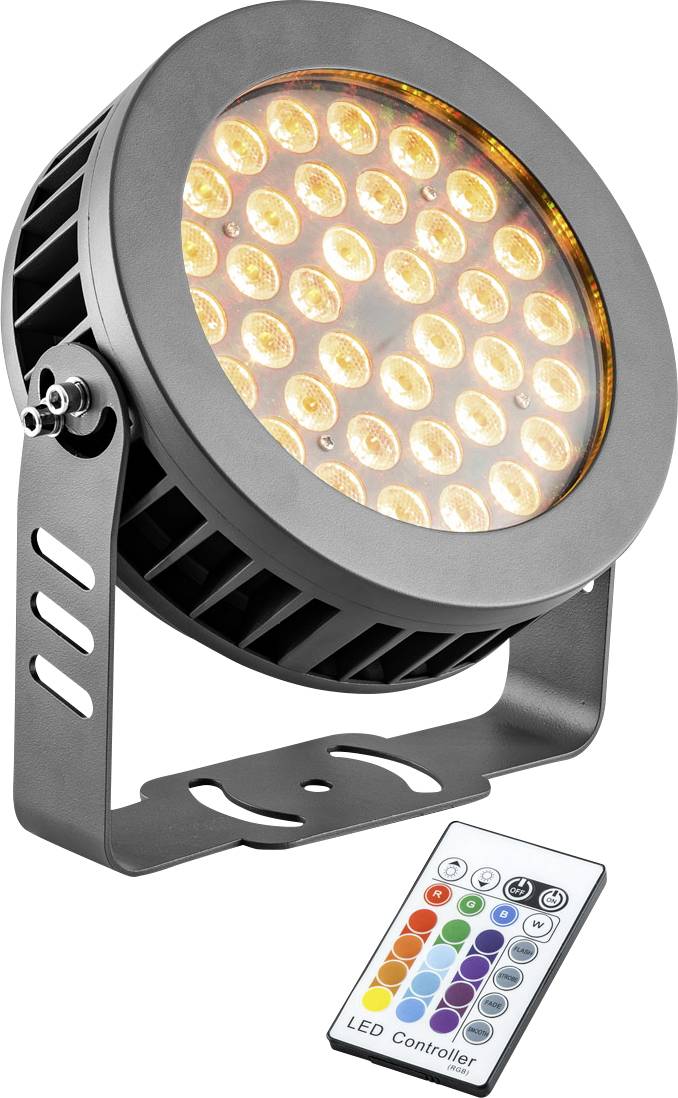

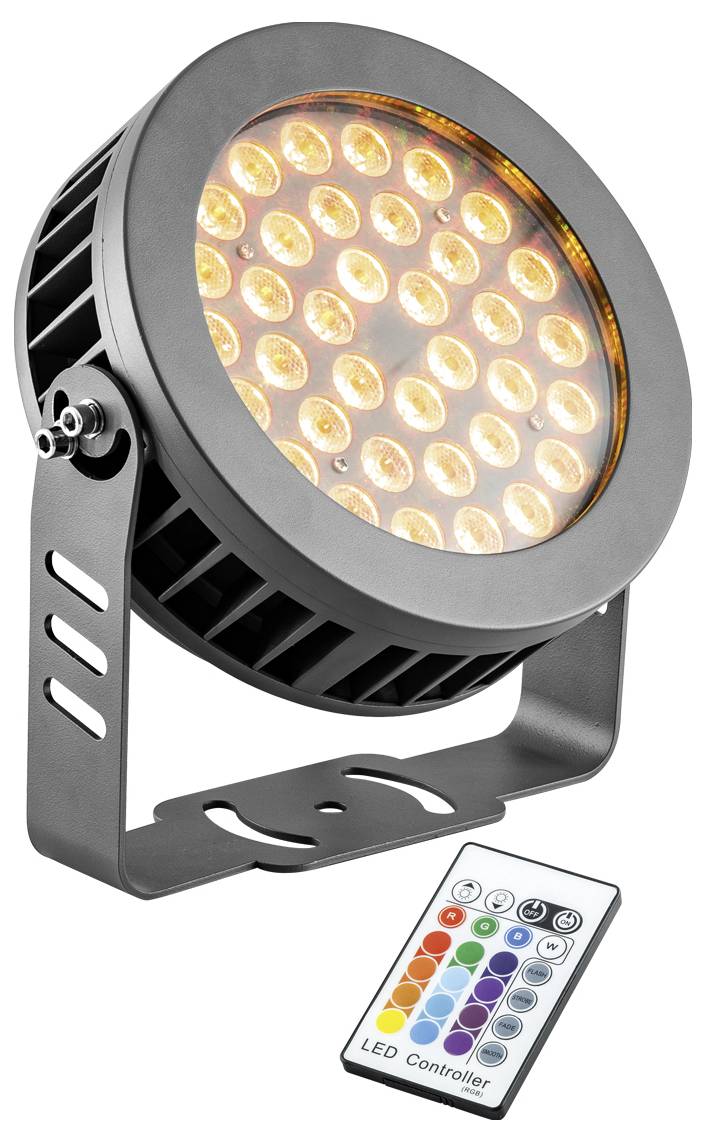

EVN LF65361599 LF65361599 LED floodlight 36 W Colours (LEDs): RGB
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
RGB-LED WallPainter incl. hand-held radio transmitter, IP65
- Power= 36 W
- Total luminous flux= 1275 lm
- RGB
Technical specifications
- Product type
LED floodlight
- Operating voltage
100 V
265 V
- No. of bulbs
36
- Bulb type
LED (monochrome)
36 W
- Colour
RGB
- Total luminous flux
1275 lm
- Light features
Colour-changing
- Swivel range (max.)
180°
- Radiation angle
20°
40°
- Protection class
I
IK06
IP65
- Factory colour
Anthracite
- Material
Aluminium

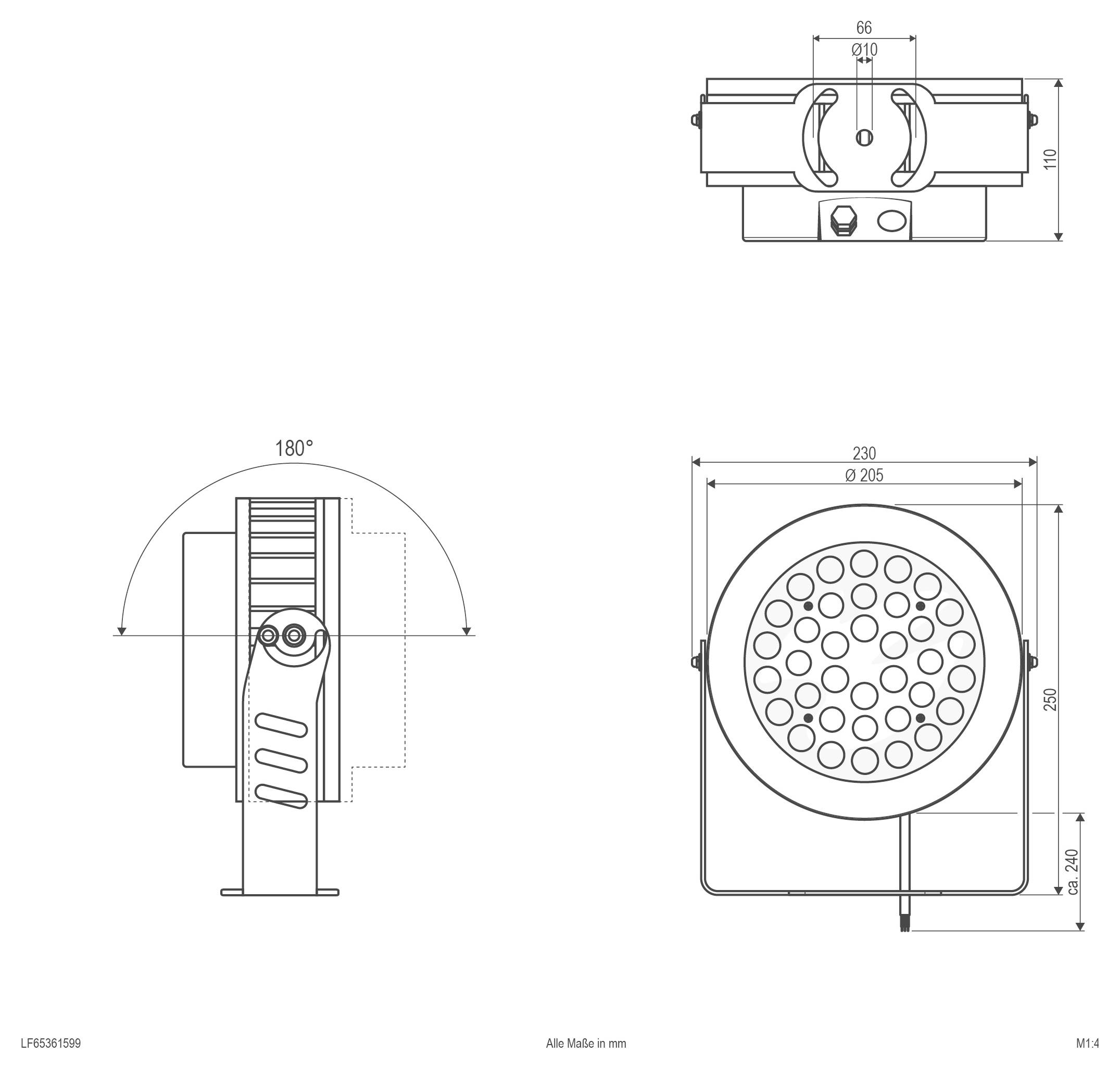

- Dim
(Ø x H) 205 mm x 250 mm
n.rel.
- Light bulb included
Yes
- Width
230 mm
- Height
250 mm
- Length
110 mm
- (Ø)
205 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483893 EVN LF65361599 LF65361599 LED floodlight 36 W Colours (LEDs): RGB
User & Safety Instructions
User & Safety Instructions 2483893 EVN LF65361599 LF65361599 LED floodlight 36 W Colours (LEDs): RGB
Description
The RGB-LED Wallpointer can be used for different lighting tasks in outdoor and indoor areas. Due to the 36 integrated multi-color LED chips, a very uniform and homogeneous light pattern is achieved, thus even large areas can be optimally illuminated. The floodlight has a swivel range of 180°. To prevent condensation, the wallwasher has a self-venting vent valve on the rear. Since both the ballast and the controller are integrated, the floodlight can be connected directly to the 230V supply line. The wireless hand-held transmitter (433.2 MHz) is powered by a 1x CR2025 3V battery (not included). The light yield is 291lm (red), 764lm (green), 245lm (blue), 1275lm (white).
