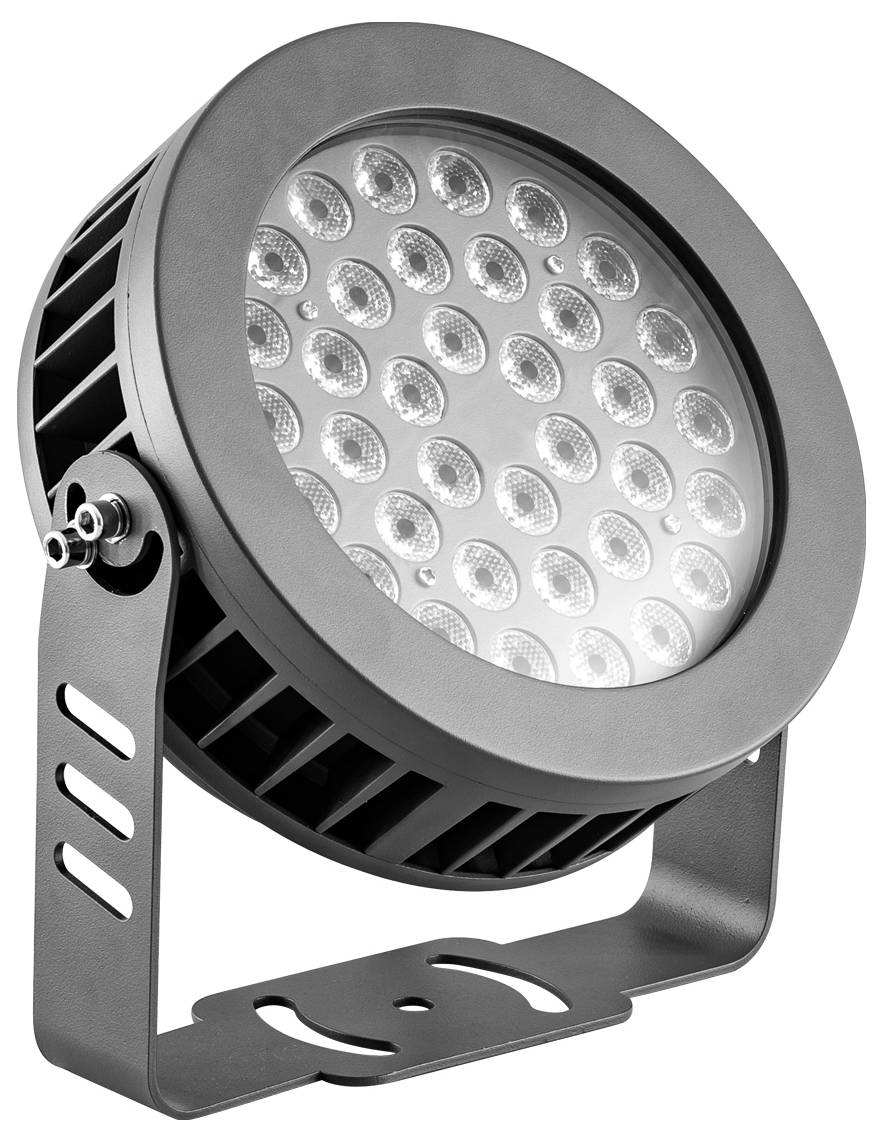

EVN LF6536159902 LF6536159902 LED floodlight 36 W Colours (LEDs): RGBW
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
RGBW-LED WALLPOINTER 24V/DC, IP65
- Power= 36 W
- Total luminous flux= 2533 lm
- Colour temperature= 3000 K
- RGBW
Technical specifications
- Product type
LED floodlight
- Operating voltage
24 V DC
- No. of bulbs
36
- Bulb type
LED (monochrome)
Built-in LED
36 W
3000 K
- Colour
RGBW
- Total luminous flux
2533 lm
- Light features
Swivelling
- Swivel range (max.)
180°
- Radiation angle
20°
40°
- Protection class
III
IK06
IP65
- Factory colour
Anthracite
- Material
Aluminium

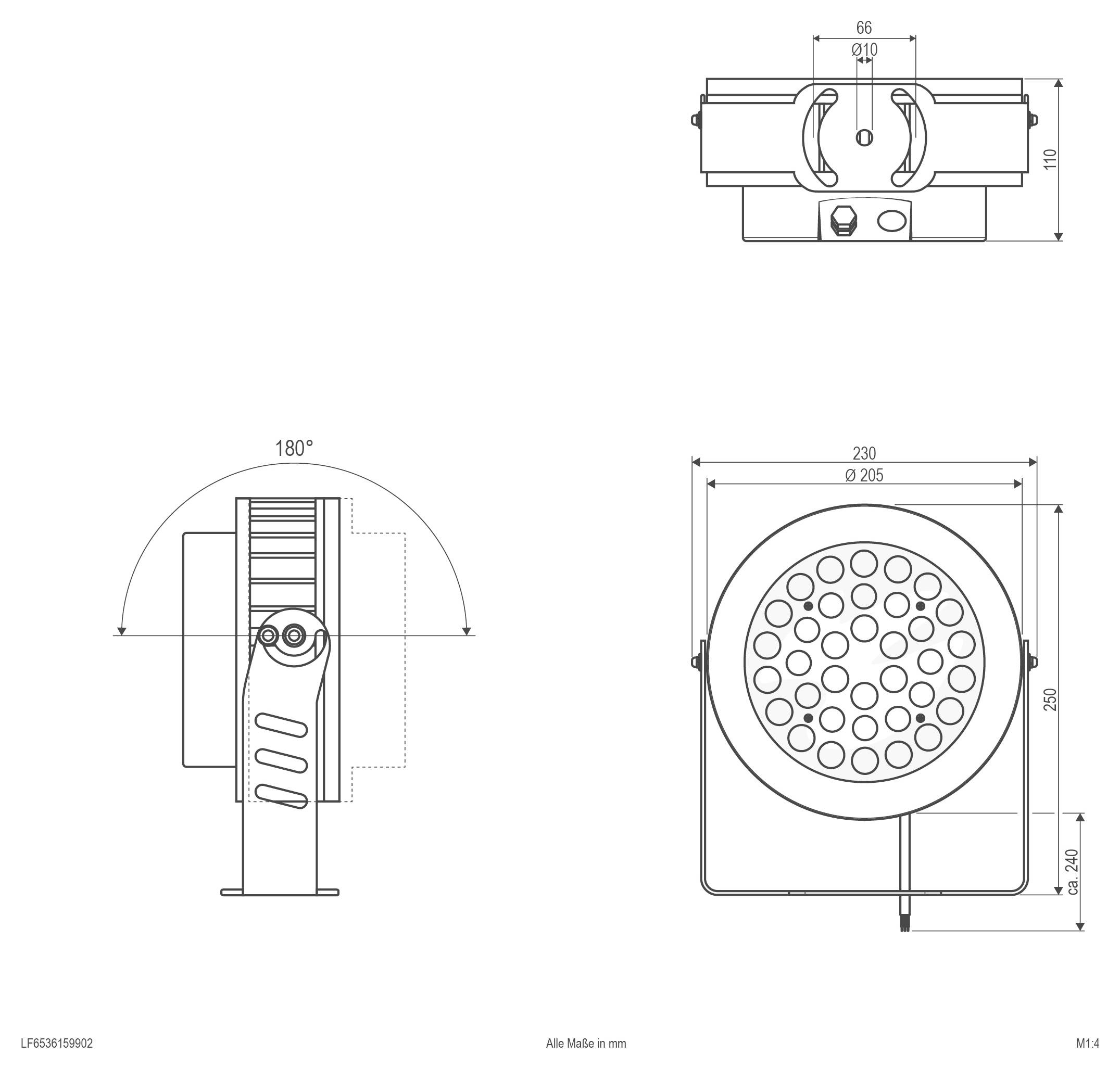

- Dim
(Ø x H) 205 mm x 250 mm
n.rel.
- Light bulb included
Yes
- Width
230 mm
- Height
250 mm
- Length
110 mm
- (Ø)
205 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483894 EVN LF6536159902 LF6536159902 LED floodlight 36 W Colours (LEDs): RGBW
User & Safety Instructions
User & Safety Instructions 2483894 EVN LF6536159902 LF6536159902 LED floodlight 36 W Colours (LEDs): RGBW
Description
The RGBW LED WallPainter can be used for a wide range of outdoor and indoor lighting tasks. Due to the 36 built-in multicolor LED chips, a very uniform and homogeneous light pattern is achieved, so that even large areas can be optimally illuminated. The floodlight has a swivel range of 180°. To prevent condensation, the wallwasher has a self-venting vent valve on the rear. Since the WallPainter is operated via an external power supply and an external control, several wallPainter can be controlled synchronously. Both the power supply unit and the RGBW controller are available separately. The light yield is 382lm (red), 1188lm (green), 367lm (blue), 731lm (white), 2533lm (RGBW).
