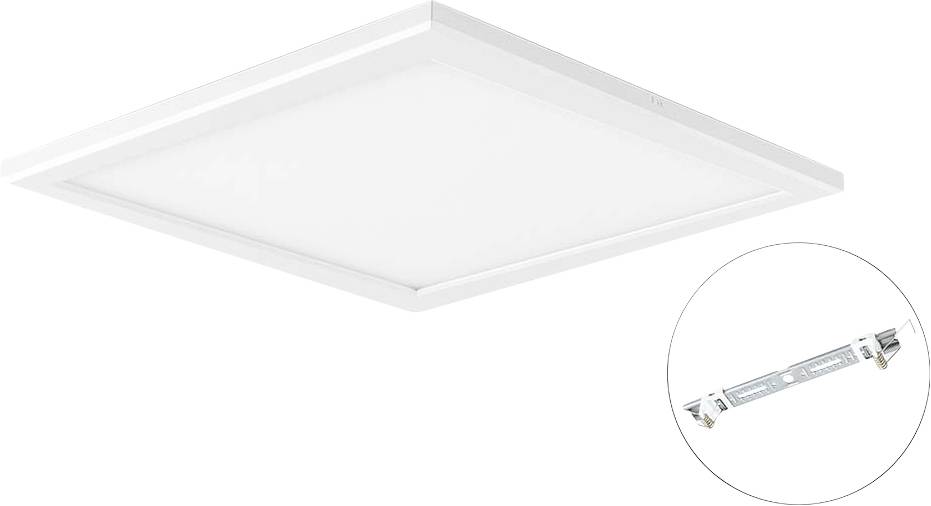

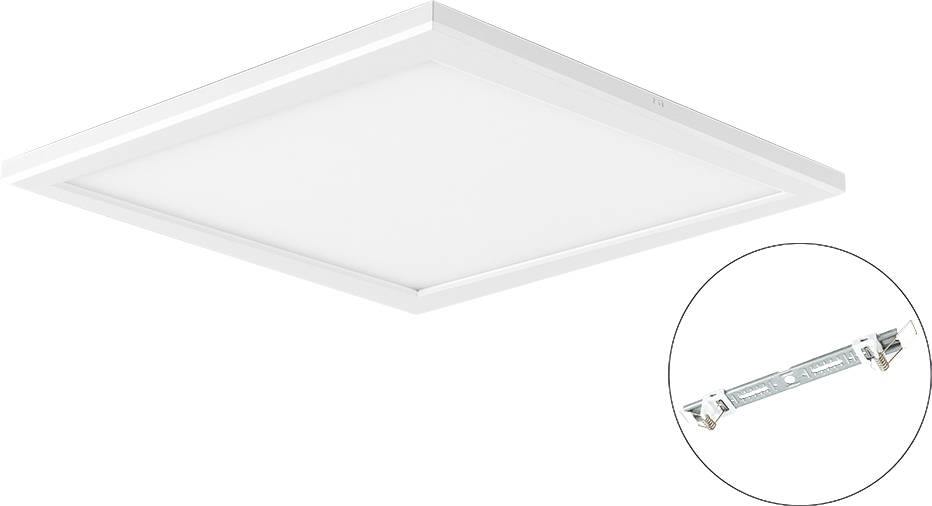

EVN LPQV290125 LPQV290125 LED recessed panel LED (monochrome) 24 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EVN Light technology LED-Panel LPQV290125
- Power= 24 W Total luminous flux= 2311 lm White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Housing material: Plastic
- Housing color: White
- Cover material: Plastic opal
- Voltage type AC
- Nominal voltage 200..240 V
- Nominal current: 120 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming of phase section: Yes
- Dimming of leading edge: Yes
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: No.
- Without dimmer function: No.
- Light distribution: Symmetric
- Radiation angle: Extremely wide radiation >80°
- Light emission: Direct
- Rated life L80/B10 at 25 °C: 35000 h
- Light current decline at medium. Service life 35,000 h at 25 °C surrounding temperature: 20 %
- Protection class (IP) IP20
- Impact strength: IK05
- Protection class: II
- Lamp with limited surface temperature "D-sign": No.
- Rated ambient temperature according to IEC62722-2-1: -20..40°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Max. System power 24 W
- Light output 96 lm/W
- Rated light current according to IEC 62722-2-1: 2311 lm
- Light color: White
- Colour temperature 3000..6000 K
- Color Rendering Index CRI: 80-89
- Constant luminous flux regulation: No.
- Width 292 mm
- Height/depth 30 mm
- Length: 292 mm
- Installation height/depth 15 mm
- Installation diameter 55 mm
- Number of poles: 2
- Connection type: Other
- Colour temperature adjustable: Levels
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED recessed panel
- Operating voltage
230 V
- Bulb type
LED (monochrome)
24 W
- Total luminous flux
2311 lm
- Colour
White
- Recess diameter
55 mm
- Recess depth
15 mm
IP20
- Protection class
II
- Factory colour
White
- Material
Plastic
n.rel.
- Dim
(L x W x H) 292.00 x 292.00 x 30.00 mm
- Light bulb included
Yes
- Colour temperature (max.)
6000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 6000 K
- Width
292.00 mm
- Height
30.00 mm
- Length
292.00 mm
- Rated luminous flux
2311 lm
- Colour rendering index
80-89
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3152067 EVN LPQV290125 LPQV290125 LED recessed panel LED (monochrome) 24 W White
User & Safety Instructions
User & Safety Instructions 3152067 EVN LPQV290125 LPQV290125 LED recessed panel LED (monochrome) 24 W White
Description

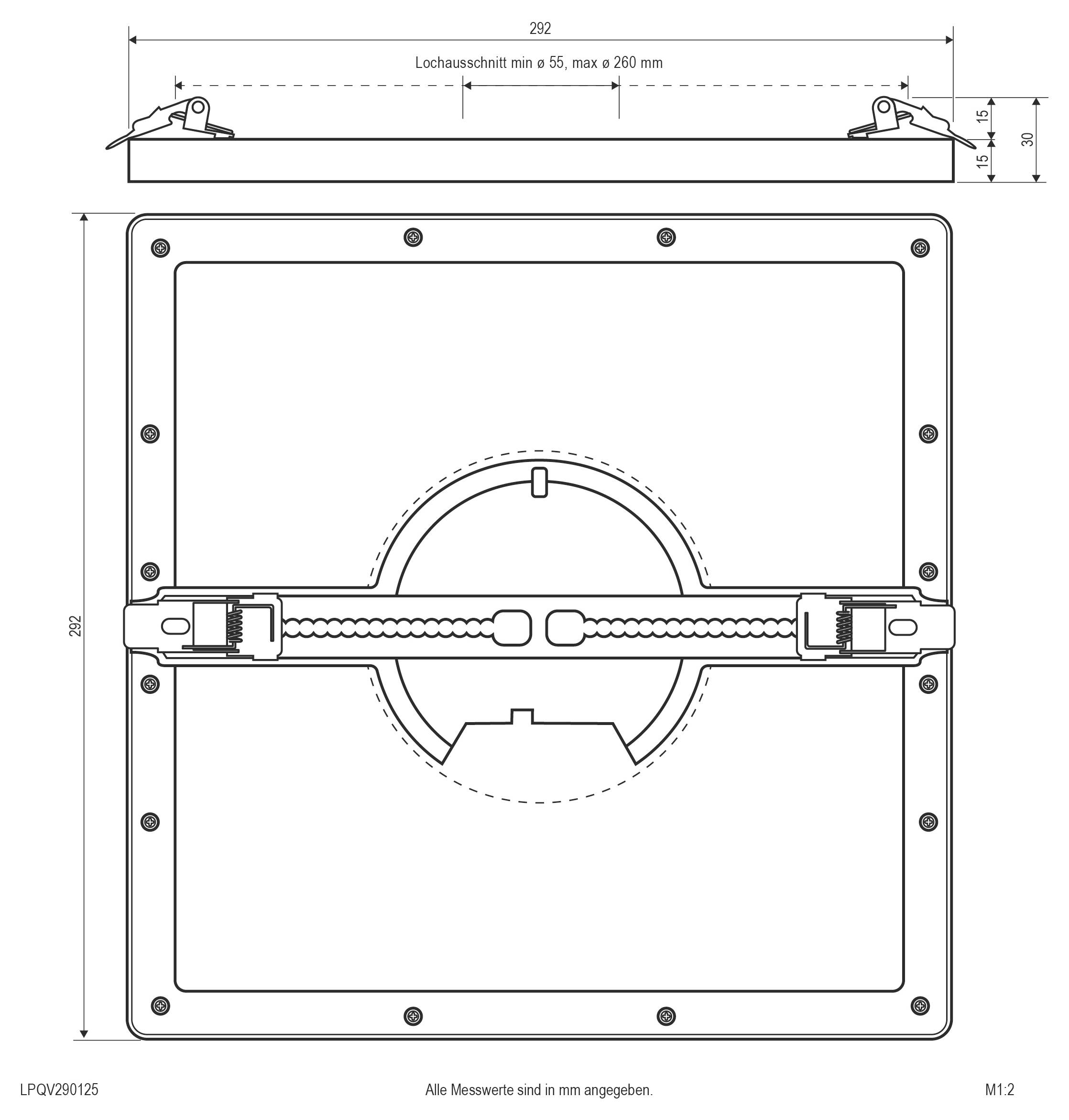

LED installation and mounting panel for different application areas, like for instance comprehensive, but also effective lighting in corridors, living room, office, and much more. The panel is suitable only for indoor use. The retaining springs can be adjusted by various grid points on the holding rail, whereby the cut-out dimension can be adjusted from 55mm to 260mm. One of the three possible color temperatures can be set with the switch on the back. The possible color temperatures and the resulting lumens are: 3000K (2022lm), 4000K (2311lm) and 6000K (2079lm). The power supply unit is installed in the panel. The overall height is 15mm.
