EVN LPRV220125 LPRV220125 LED panel 18 W Warm white to daylight white White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

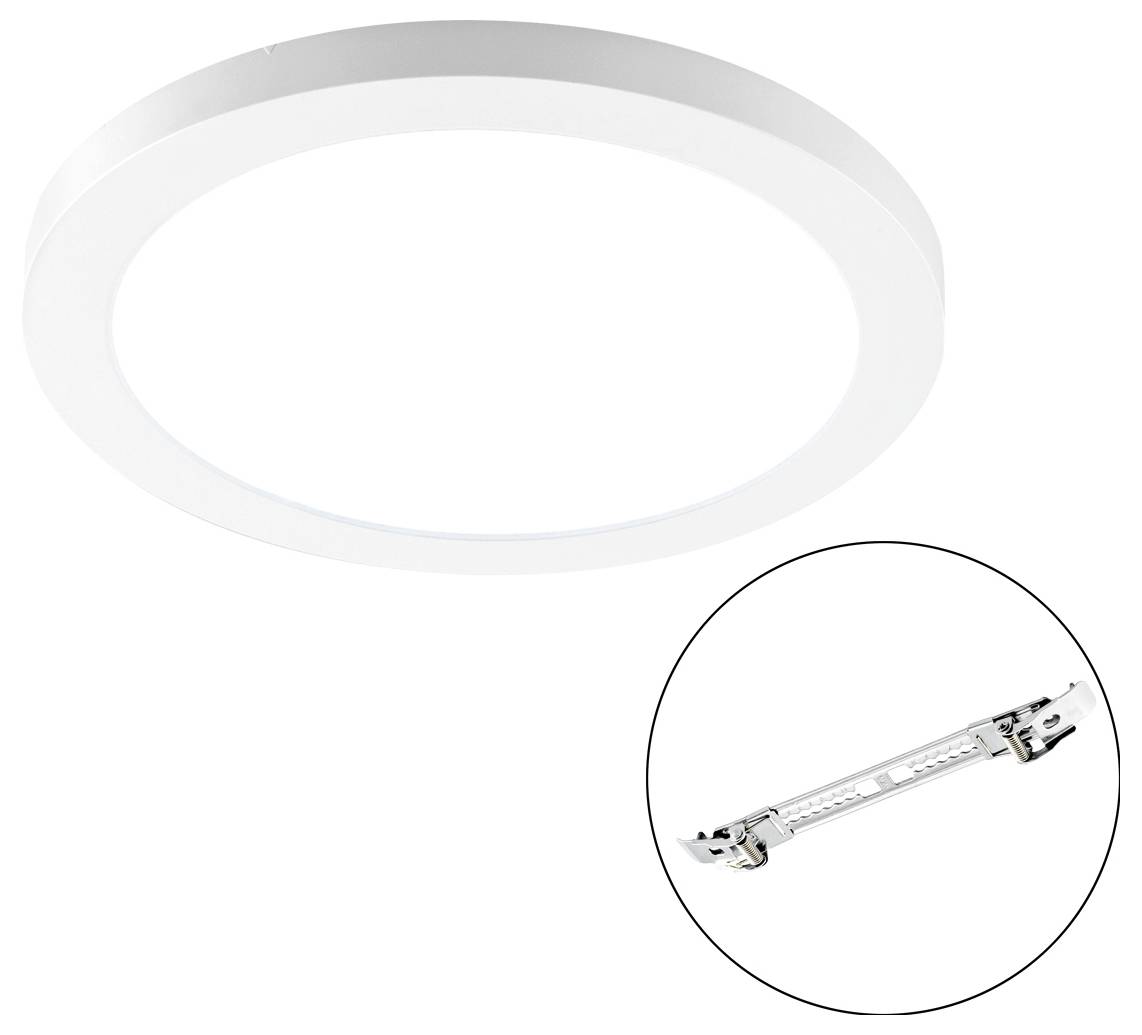

LED panel with adjustable hole cut-out
- Power= 18 W
- Total luminous flux= 1631 lm
- Colour temperature= 6000 K
- Warm white to daylight white
Technical specifications
- Product type
LED panel
- Operating voltage
200 V
240 V
Built-in LED
18 W
6000 K
- Colour
Warm white to daylight white
- Total luminous flux
1631 lm
- Max. capacity
85 mA
- Light features
Selectable colour
Ceiling mount option
Suitable for wall mounting
- Radiation angle
80°
- Protection class
II
IP20
IK05
- Factory colour
White
- Material
Plastic
- Height
30 mm
- (Ø)
218 mm
n.rel.
- Light bulb included
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483934 EVN LPRV220125 LPRV220125 LED panel 18 W Warm white to daylight white White
User & Safety Instructions
User & Safety Instructions 2483934 EVN LPRV220125 LPRV220125 LED panel 18 W Warm white to daylight white White
Description

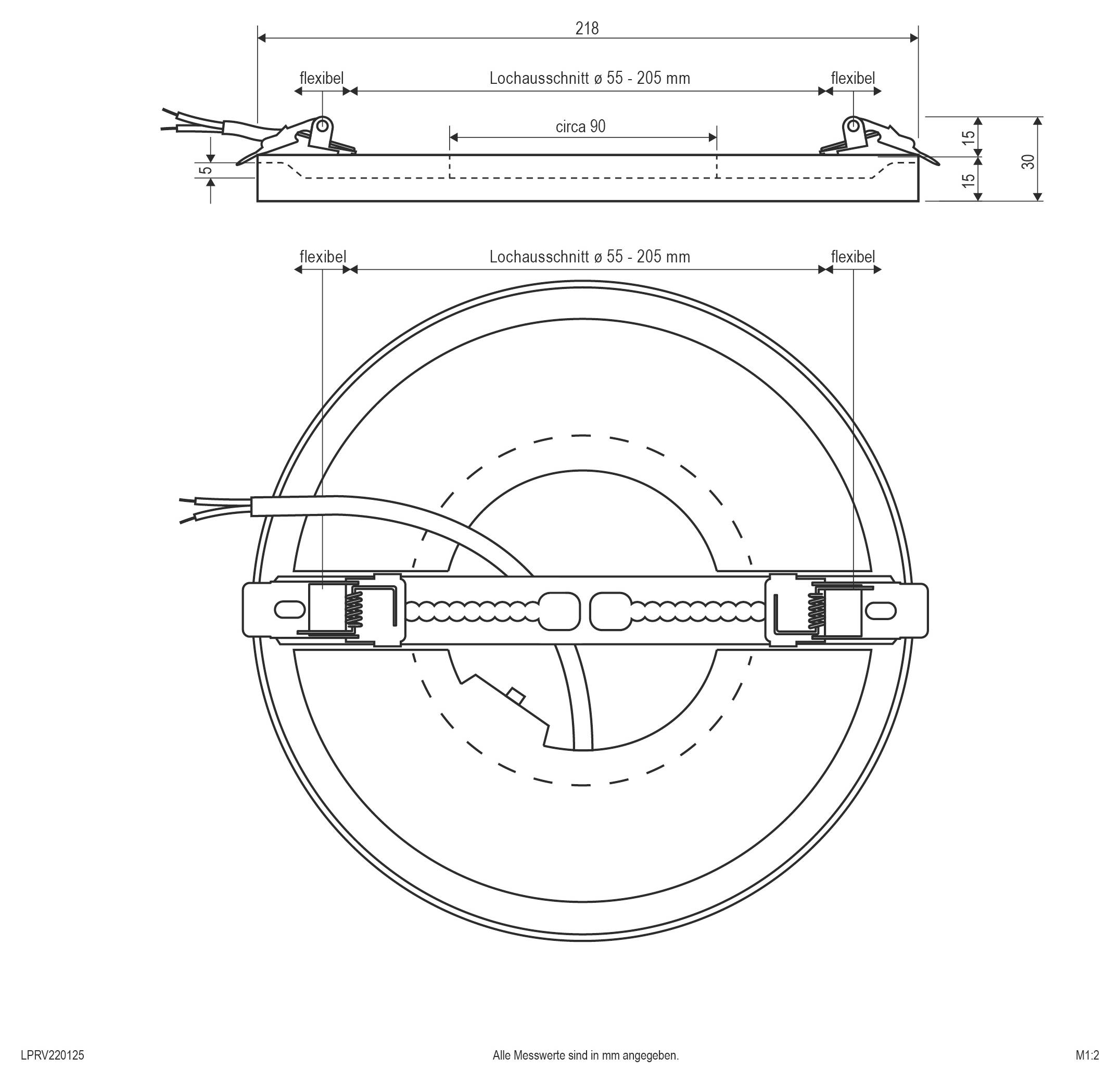

LED panel for various applications, such as comprehensive, but also effective lighting in hall, living room, office, and much more. The panel is only suitable for indoor use. The retaining springs can be adjusted by different grid points on the retaining rail, with the following cutting dimensions possible: 55mm, 65mm, 75mm, 90mm, 102mm, 115mm, 126mm, 140mm, 154mm, 165mm. The switch on the rear side can be used to set one of three possible color temperatures. The possible color temperatures and resulting lumen are: 3000K (1512lm), 4000K (1631lm) and 6000K (1462lm). The power supply unit is installed in the panel. Degree of physiological blinding: UGR less than 25.
This text is machine translated.
