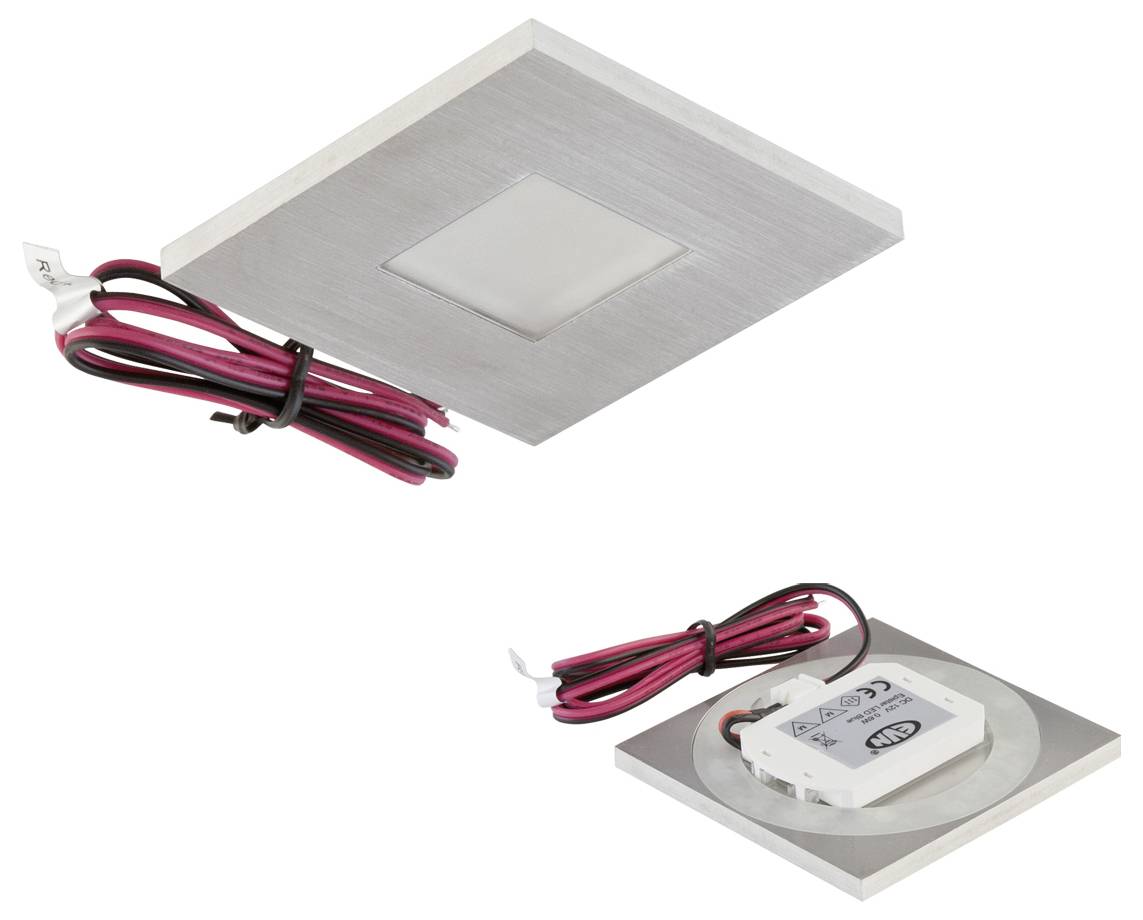

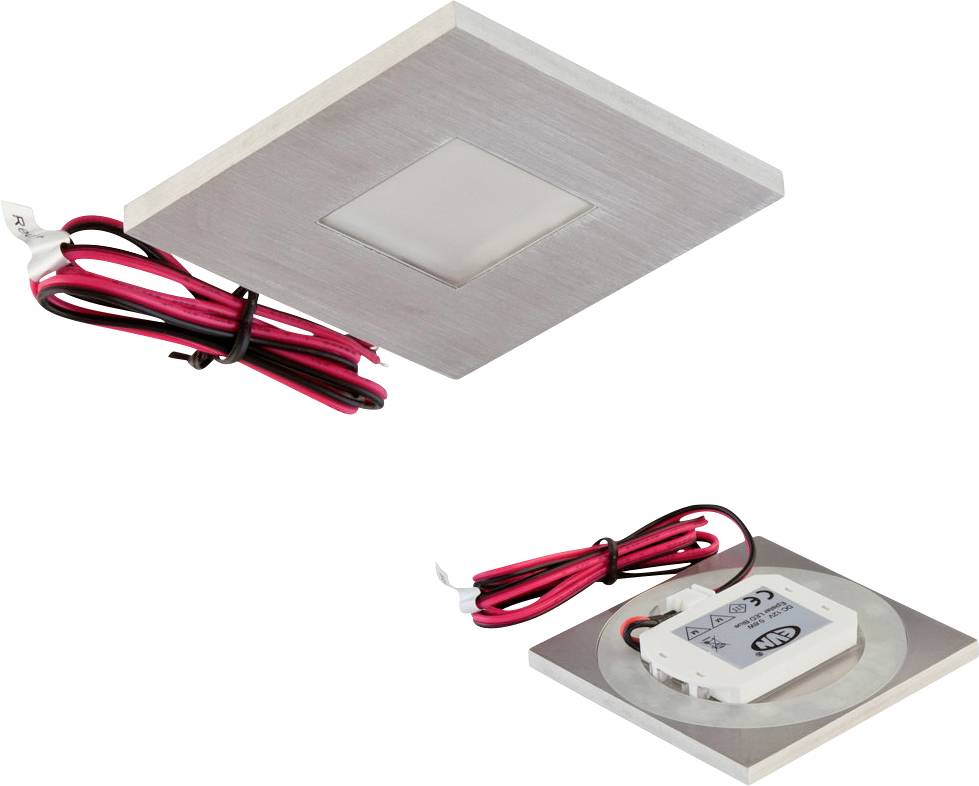

EVN LQ4601 LQ4601 LED recessed wall light LED (monochrome) Built-in LED 0.6 W Stainless steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED recessed wall light, IP44
- Power= 0.6 W Colour temperature= 6000 K Daylight white
Technical specifications
- Product type
LED recessed wall light
- Operating voltage
12 V DC
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
0.6 W
0.6 W
6000 K
- Colour
Daylight white
- Light features
Incl. ballast
- Recess diameter
55 mm
- Recess depth
7 mm
IP44
- Protection class
III
- Factory colour
Stainless steel
- Material
Stainless steel
n.rel.
- Dim
(L x W x H) 76 x 76 x 10 mm
- Light bulb included
Yes
- Colour temperature range
6000 K
- Width
76 mm
- Height
10 mm
- Length
76 mm
- Rated luminous flux
36 lm
- Number of pins
2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483958 EVN LQ4601 LQ4601 LED recessed wall light LED (monochrome) Built-in LED 0.6 W Stainless steel
User & Safety Instructions
User & Safety Instructions 2483958 EVN LQ4601 LQ4601 LED recessed wall light LED (monochrome) Built-in LED 0.6 W Stainless steel
Description

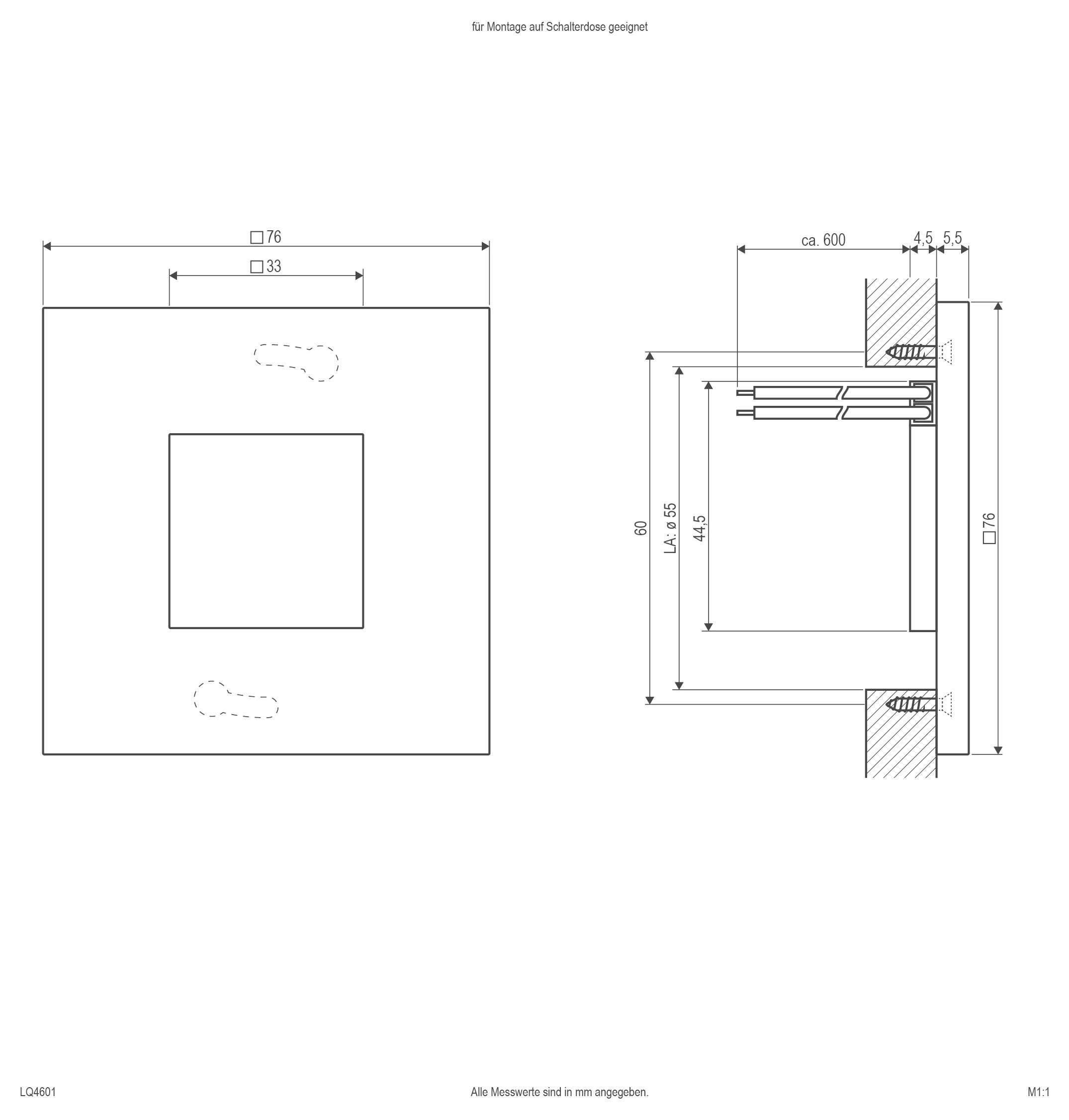

The LED wall mounted light fixture is designed in such a way that it can be mounted either directly in the wall with two screws or alternatively in switch boxes. The screws are covered by the magnetically removable stainless steel frame. Due to its design and power, the lamp is perfectly suitable as an orientation lamp. Thanks to THE MM marking, the lamp can also be used in furniture construction. Several lights can be operated via one operating device, which allows different light groups to be switched within a room. The rear-mounted seal ensures that the lamp achieves IP44 degree of protection during installation. The lamp has a 0.6m long connection cable.
