EVN LR44083540 LR44083540 LED recessed panel 5 W Neutral white White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED installation panel, IP44
- Power= 5 W
- Total luminous flux= 400 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Product type
LED recessed panel
- Type
Planar
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
5 W
5 W
4000 K
- Colour
Neutral white
- Total luminous flux
400 lm
- Max. capacity
350 mA
- Light features
Ceiling mount option
Suitable for wall mounting
- Radiation angle
80°
- Protection class
III
IP44
IK03
- Factory colour
White
- Material
Aluminium

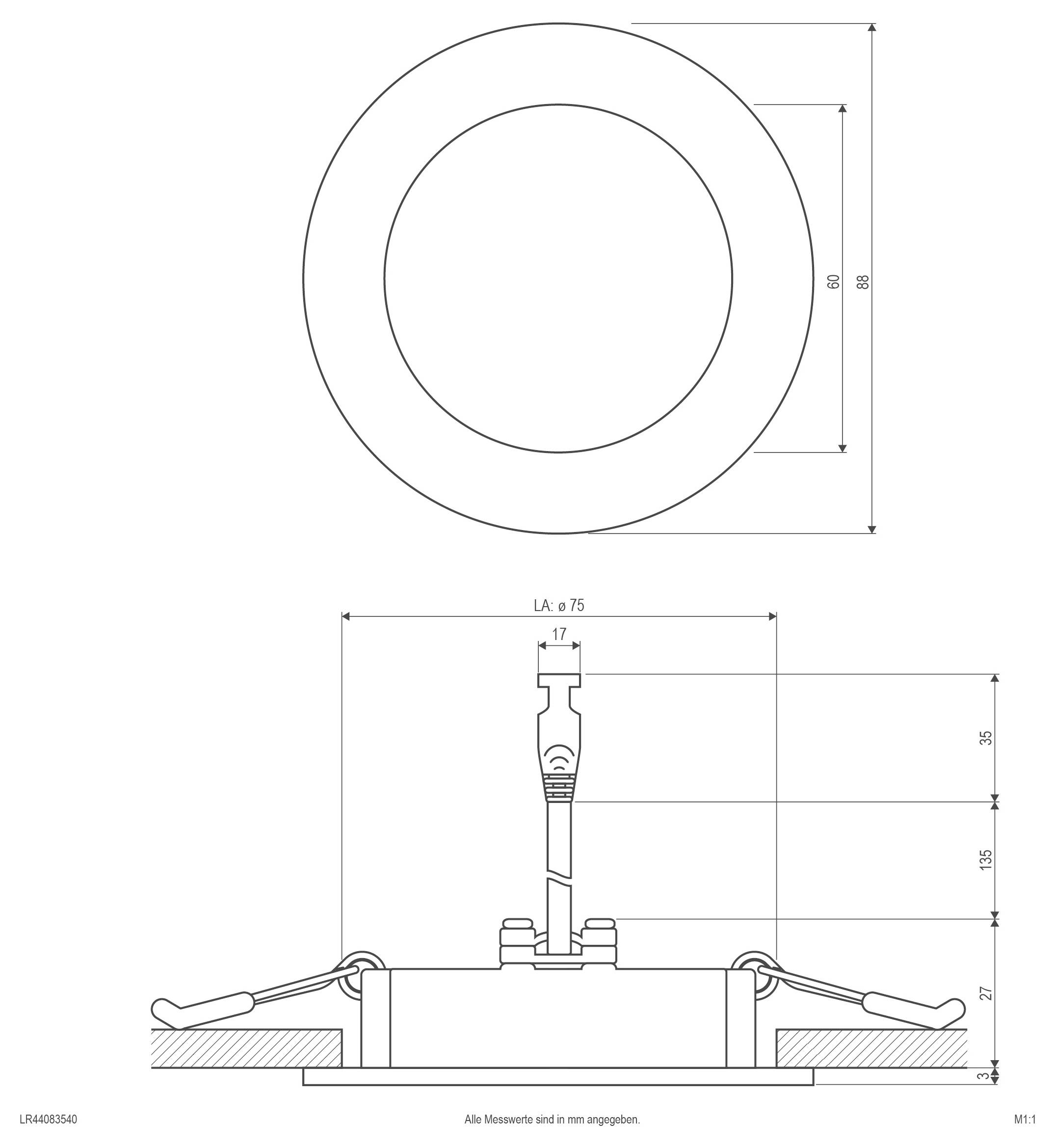

- Height
30 mm
- (Ø)
88 mm
n.rel.
- Light bulb included
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483971 EVN LR44083540 LR44083540 LED recessed panel 5 W Neutral white White
User & Safety Instructions
User & Safety Instructions 2483971 EVN LR44083540 LR44083540 LED recessed panel 5 W Neutral white White
Description
LED installation panel for different application areas, such as covering area, but also effective lighting in hall, living room, office, and much more. Due to the given degree of protection, the panel can also be used in damp rooms such as Bathroom and even in the protected outdoor area. Due to the low installation depth, the panel can also be used with e.g. suspended ceilings with simple planking, but also walls without problems. Through the large-area light emission, a very homogeneous illumination of the room is always achieved.
