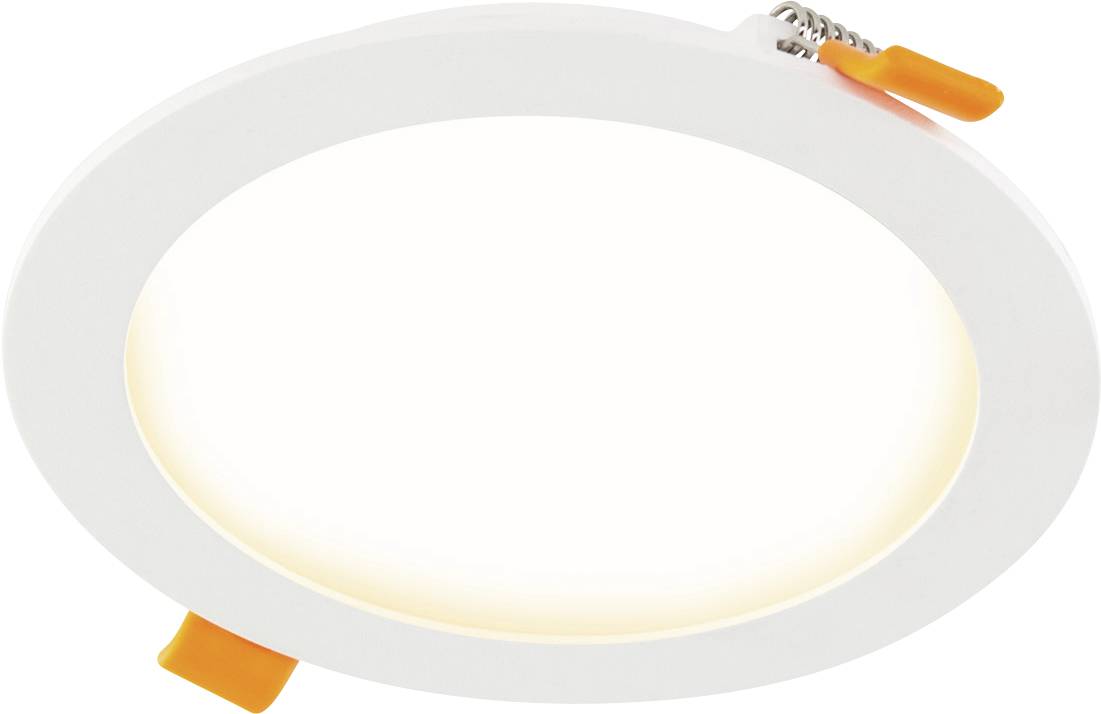

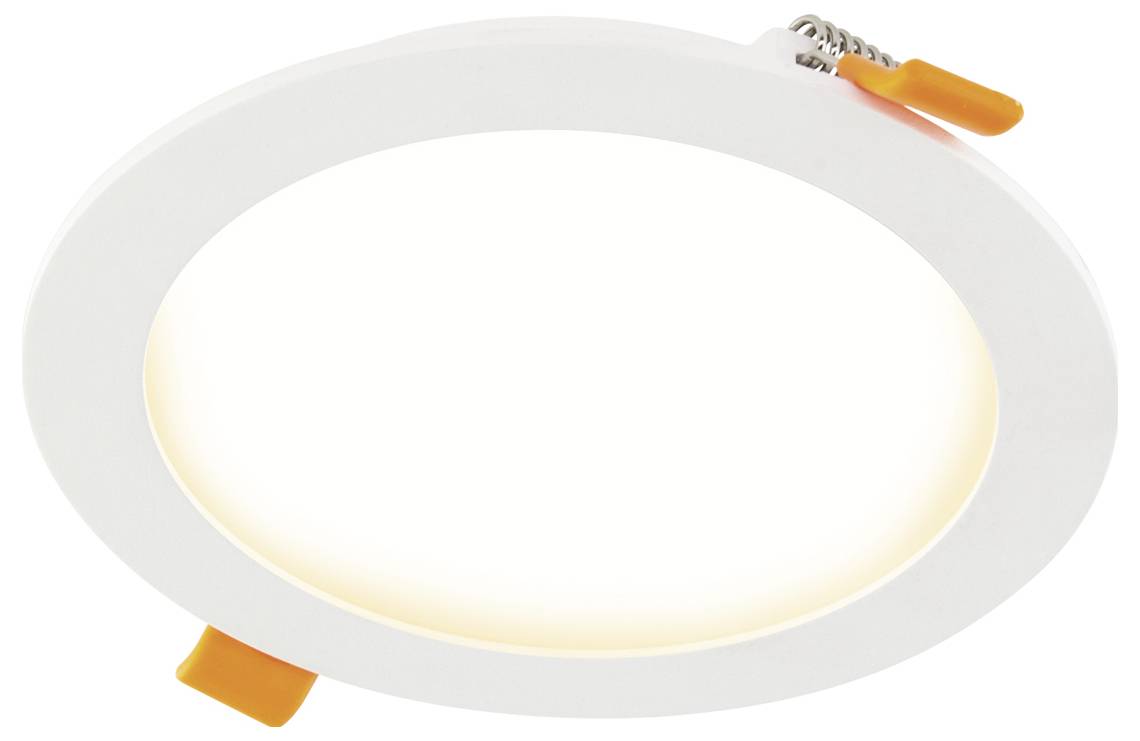

EVN LR44143502 LR44143502 LED recessed panel 12 W Warm white White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED installation panel, IP44
- Power= 12 W
- Total luminous flux= 900 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Product type
LED recessed panel
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
12 W
12 W
3000 K
- Colour
Warm white
900 lm
- Total luminous flux
900 lm
- Max. capacity
350 mA
- Light features
Ceiling mount option
Suitable for wall mounting
- Radiation angle
80°
- Protection class
III
IP44
IK03
- Factory colour
White
- Material
Aluminium
- Height
30 mm
- (Ø)
145 mm
n.rel.
- Light bulb included
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483972 EVN LR44143502 LR44143502 LED recessed panel 12 W Warm white White
User & Safety Instructions
User & Safety Instructions 2483972 EVN LR44143502 LR44143502 LED recessed panel 12 W Warm white White
Description
LED installation panel for different application areas, such as covering area, but also effective lighting in hall, living room, office, and much more. Due to the given degree of protection, the panel can also be used in damp rooms such as Bathroom and even in the protected outdoor area. Due to the low installation depth, the panel can also be used with e.g. suspended ceilings with simple planking, but also walls without problems. Through the large-area light emission, a very homogeneous illumination of the room is always achieved.
