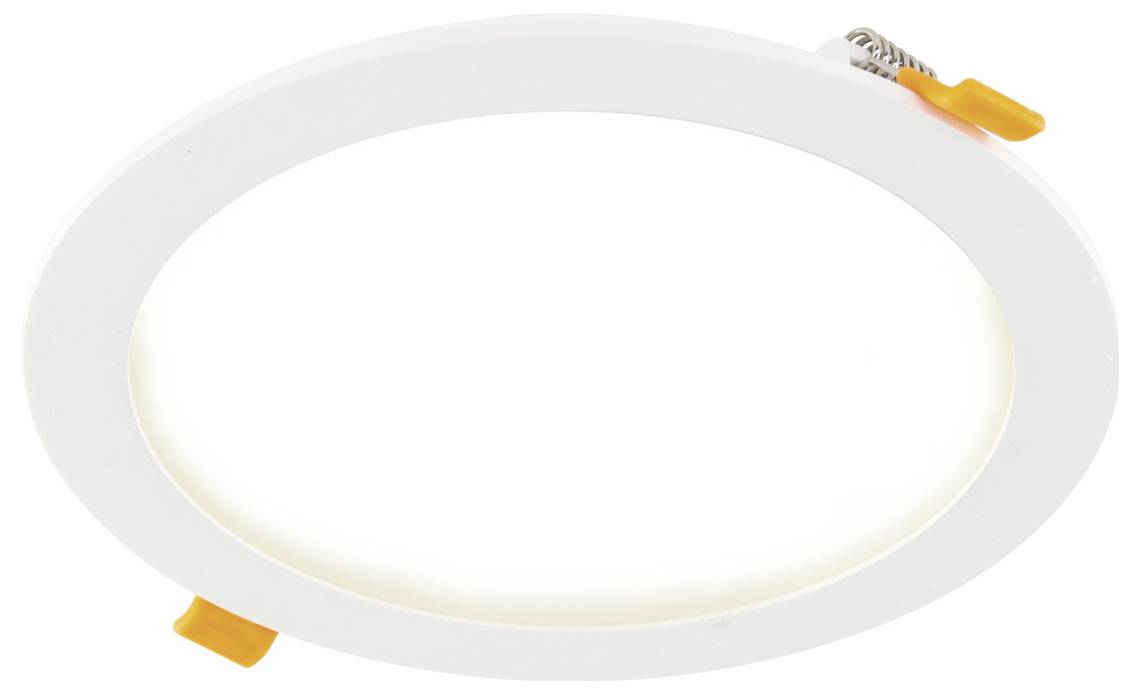

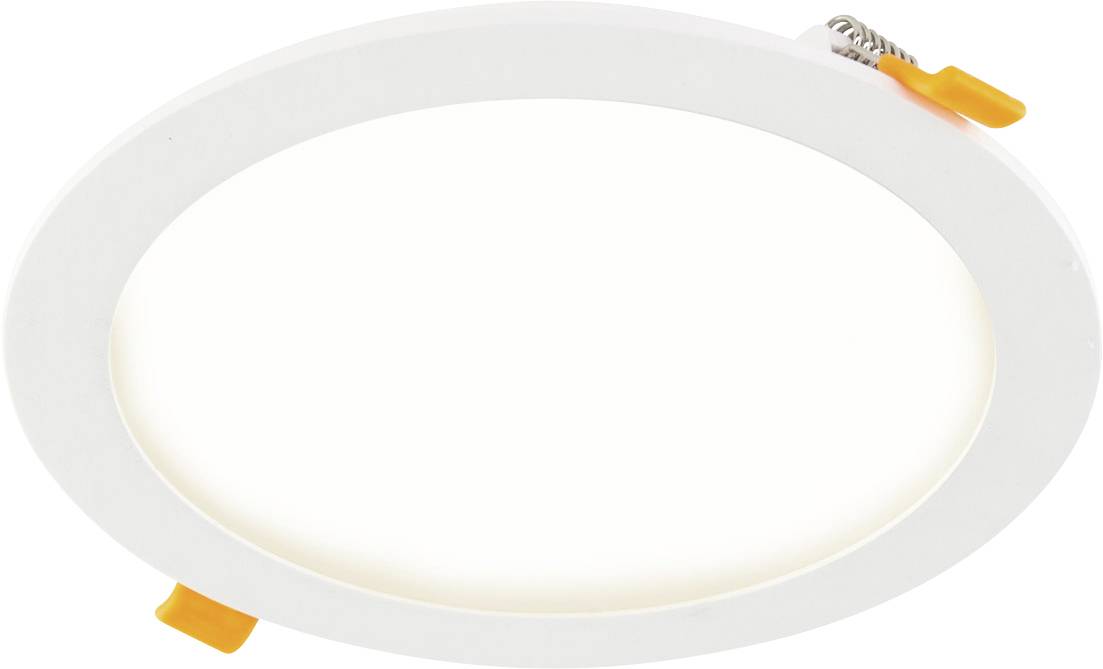

EVN LR44183540 LR44183540 LED recessed panel 16.5 W Neutral white White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED installation panel, IP44
- Power= 16.5 W
- Total luminous flux= 1320 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Product type
LED recessed panel
- Type
Planar
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
16.5 W
16.5 W
4000 K
- Colour
Neutral white
1320 lm
- Total luminous flux
1320 lm
- Max. capacity
350 mA
- Light features
Ceiling mount option
Suitable for wall mounting
- Radiation angle
80°
- Protection class
III
IP44
IK03
- Factory colour
White
- Material
Aluminium

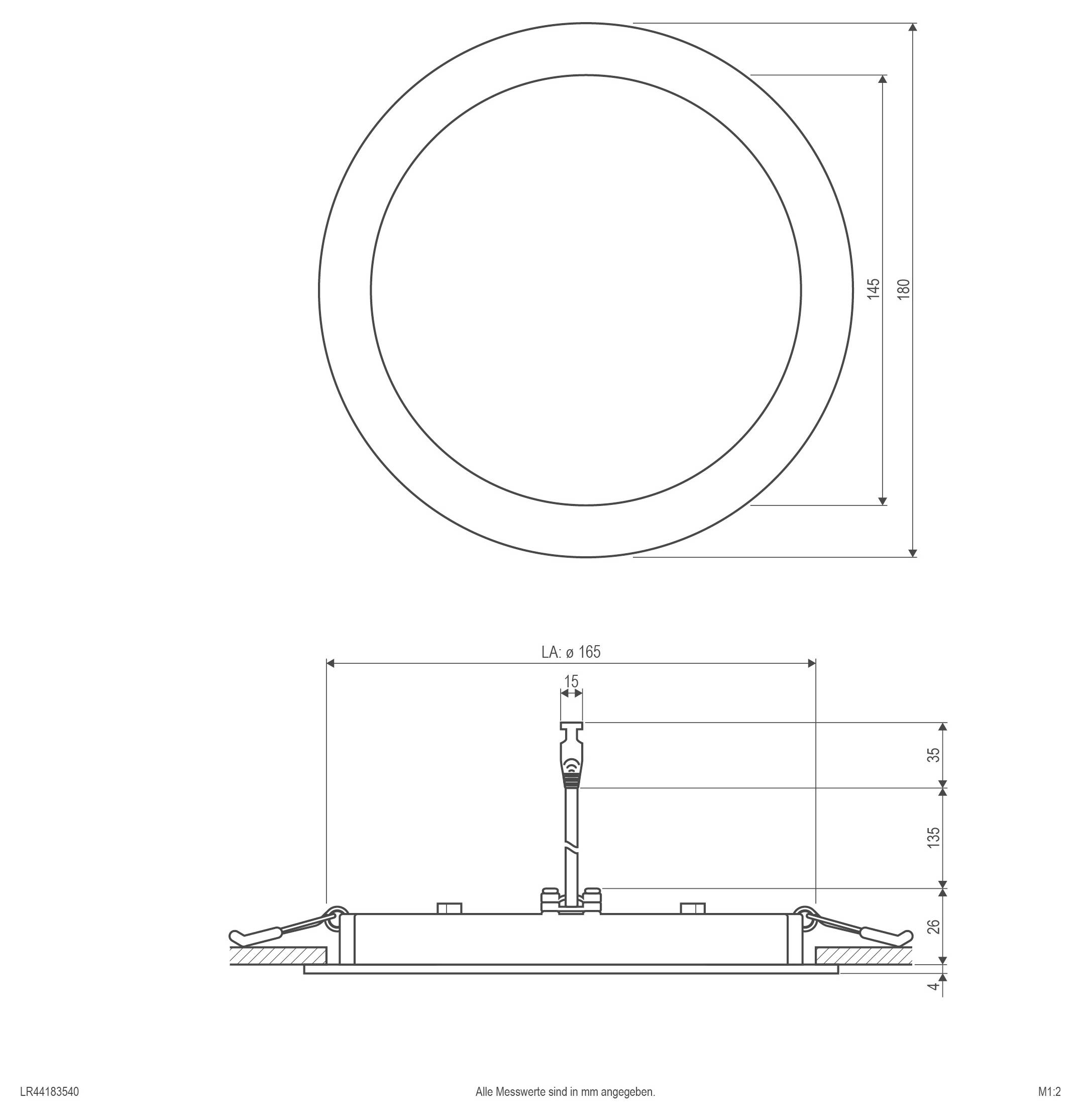

- Height
30 mm
- (Ø)
180 mm
n.rel.
- Light bulb included
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483975 EVN LR44183540 LR44183540 LED recessed panel 16.5 W Neutral white White
User & Safety Instructions
User & Safety Instructions 2483975 EVN LR44183540 LR44183540 LED recessed panel 16.5 W Neutral white White
Description
LED installation panel for different application areas, such as covering area, but also effective lighting in hall, living room, office, and much more. Due to the given degree of protection, the panel can also be used in damp rooms such as Bathroom and even in the protected outdoor area. Due to the low installation depth, the panel can also be used with e.g. suspended ceilings with simple planking, but also walls without problems. Through the large-area light emission, a very homogeneous illumination of the room is always achieved.
