1/3
EVN P68123501-3 P681235013 LED garden spotlight set LED (monochrome)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EVN LED Garden Light Set 3 pc Mini-Spot 12V 3.5W noble cold white
Technical specifications
- Product type
LED garden spotlight set
- No. of bulbs
3
- Bulb type
LED (monochrome)
- Light features
Incl. ground spike
- Swivel range (max.)
60°
- Protection class
IP44
- Feed length
1.8 m
n.rel.
Documents & Downloads
Datasheet
Datasheet 3034985 EVN P68123501-3 P681235013 LED garden spotlight set LED (monochrome)
User & Safety Instructions
User & Safety Instructions 3034985 EVN P68123501-3 P681235013 LED garden spotlight set LED (monochrome)
Description

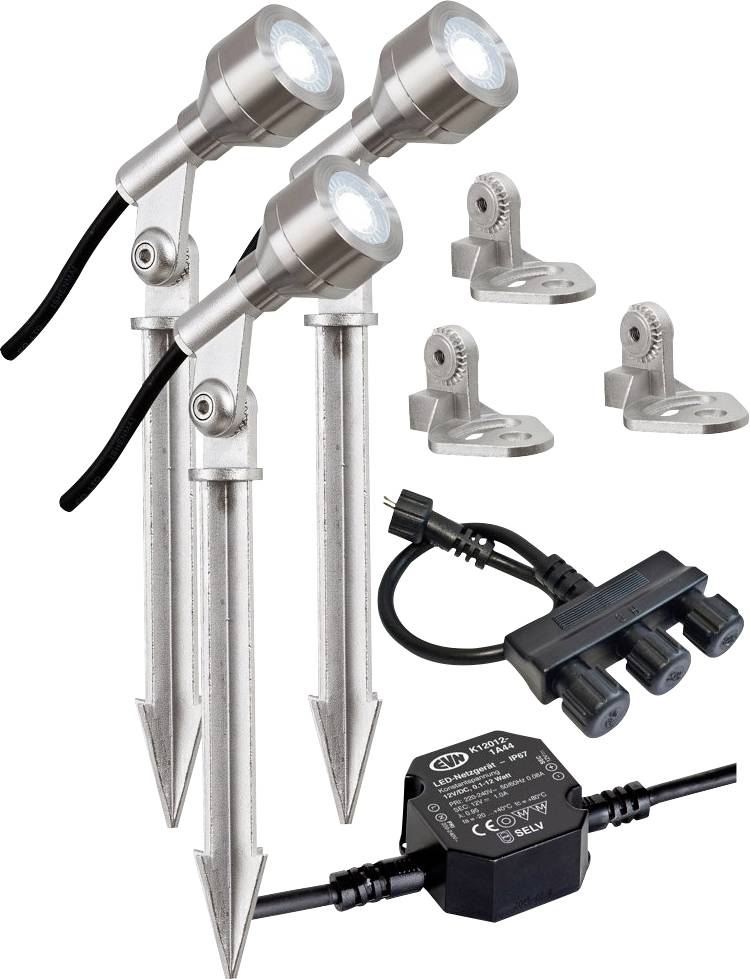

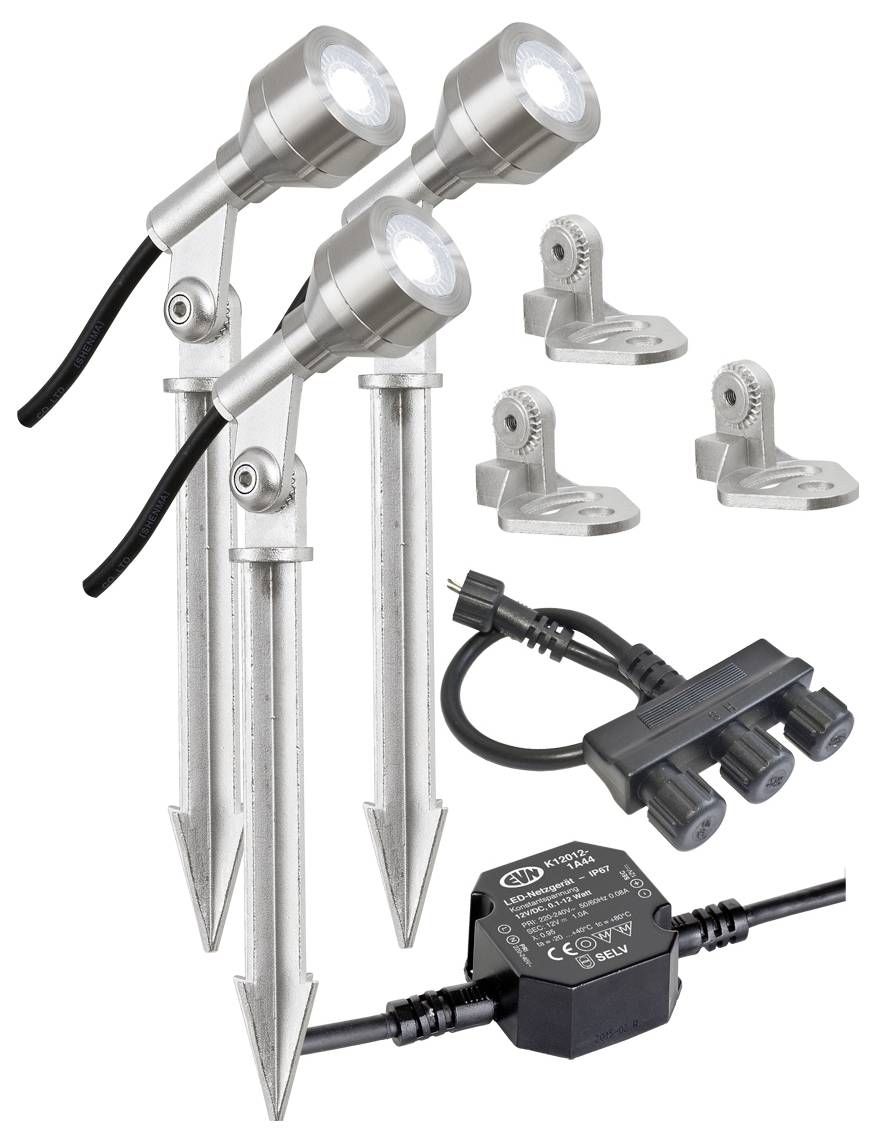

The solid LED spotlights can be used for various applications. As the delivery package for each Spot includes a stand (mounting base) as well as a ground spike, the spots can be installed almost anywhere. Due to the given protection class, even use under water with a diving depth of up to 1.5m is possible. The complete set is easily cabled via the IP44-plug system. A 5m long connecting cable is present at each Spot. In addition, the set contains a 3-way distributor, as well as the ballast, which has a 1.8 m long supply cable with plug. Both the ground spike and the stand have a fine tooth grid to prevent any undesired swiveling of the spot. The slewing angle is 60°. Of course, the supplied LED illuminants can be replaced at any time if required. The technical data refer to a Spot.
