EVN PAS541502 PAS541502 Solar outdoor free standing light (+ motion detector) LED (monochrome) 1.6 W Anthracite
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED solar wall light IP54
- Power= 1.6 W Total luminous flux= 150 lm Colour temperature= 3000 K Warm white
Technical specifications
- Product type
Solar outdoor free standing light (+ motion detector)
- Operating voltage
3.7 V
- Bulb type
LED (monochrome)
- Rating per bulb
1.6 W
1.6 W
3000 K
- Colour
Warm white
150 lm
- Total luminous flux
150 lm
- Adjustable on-time (min.)
8 s
- Adjustable on-time (max.)
8 min
- Swivel range (max.)
180°
- Protection class
III
IP54
IK06
- Factory colour
Anthracite
- Material
Aluminium
- Dim

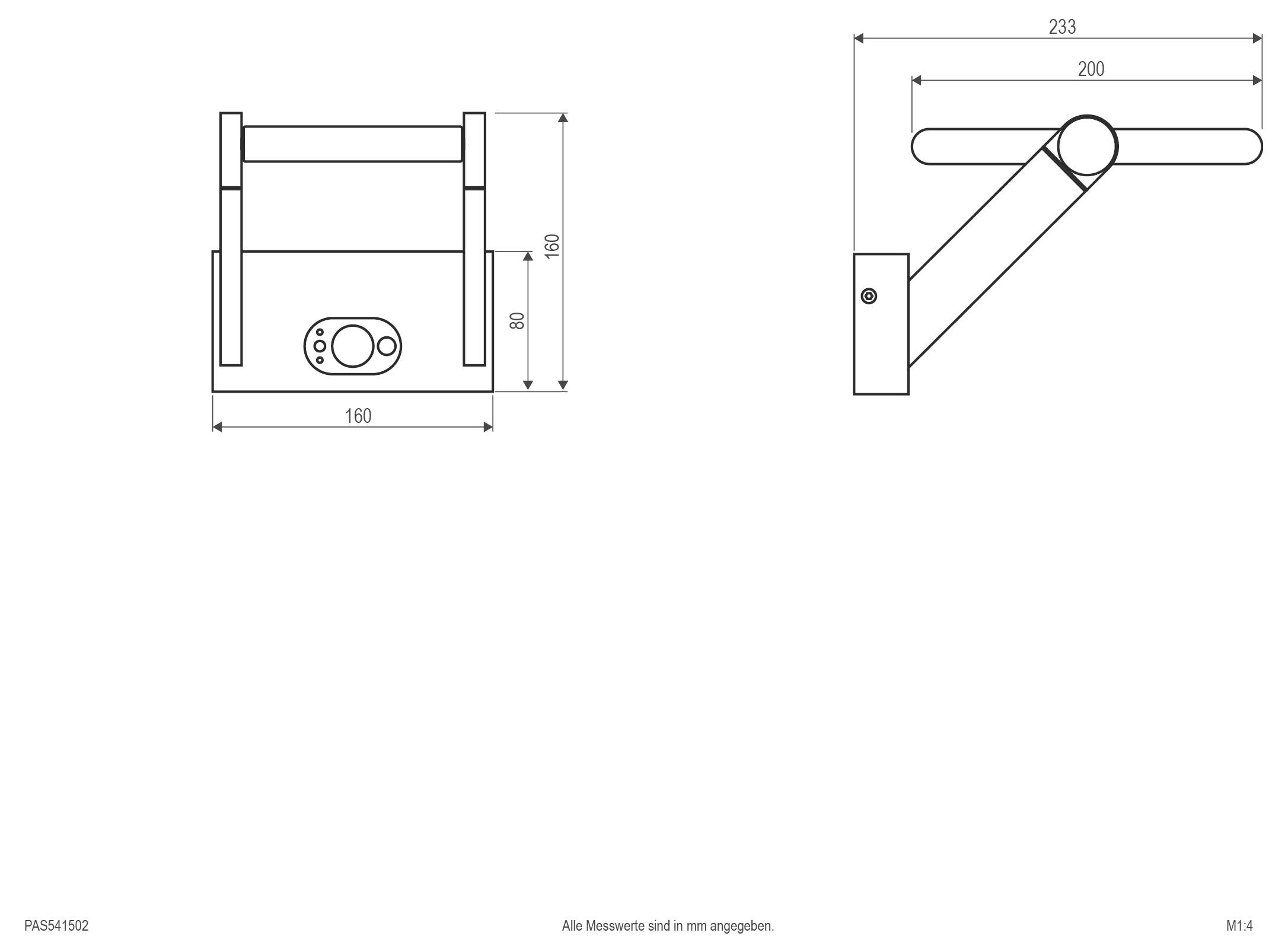

(L x W x H) 152 x 162 x 240 mm
n.rel.
- Light bulb included
Yes
- Width
162 mm
- Height
240 mm
- Length
152 mm
- Depth
20 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2484010 EVN PAS541502 PAS541502 Solar outdoor free standing light (+ motion detector) LED (monochrome) 1.6 W Anthracite
User & Safety Instructions
User & Safety Instructions 2484010 EVN PAS541502 PAS541502 Solar outdoor free standing light (+ motion detector) LED (monochrome) 1.6 W Anthracite
Description

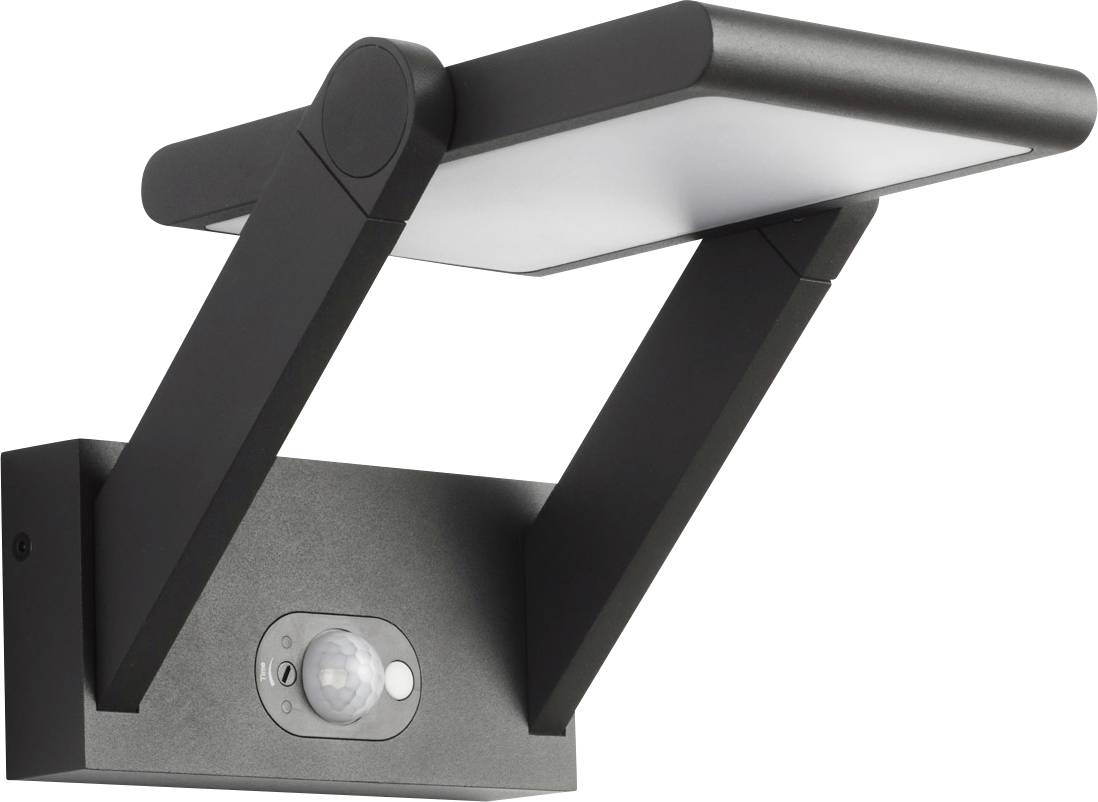

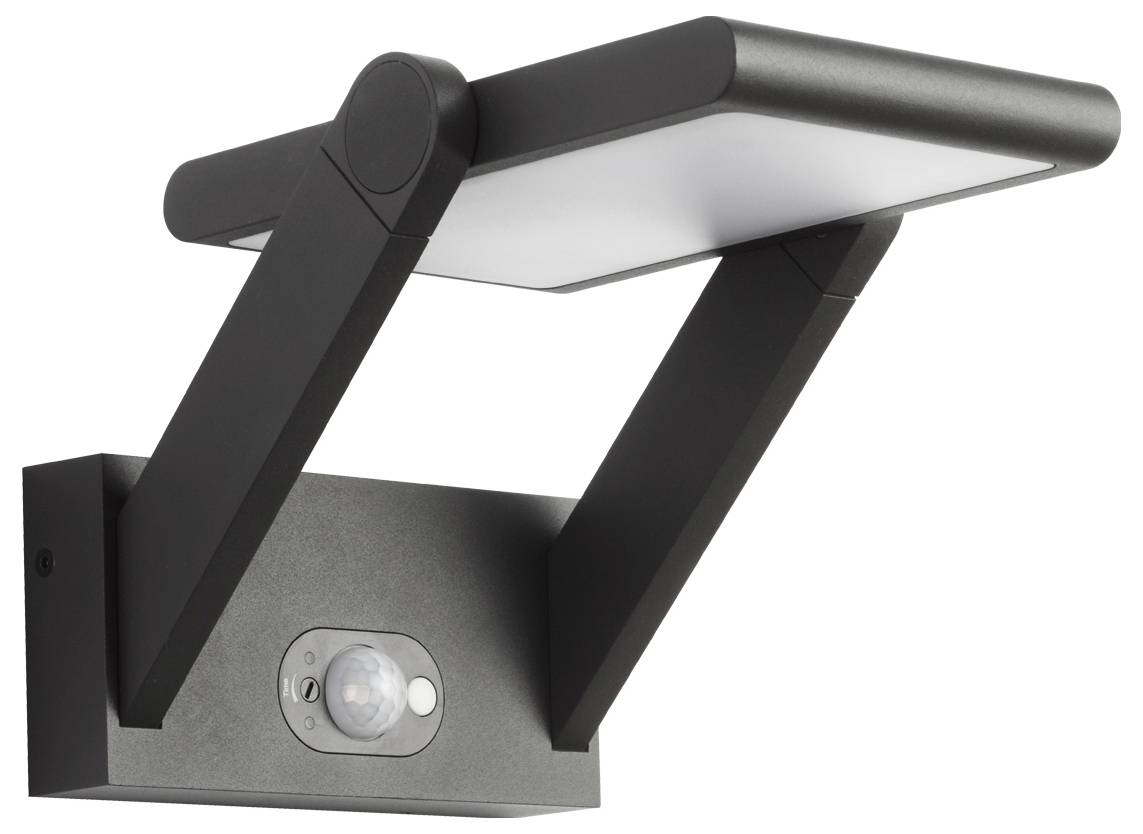

Solar wall light with integrated twilight and motion sensor for outdoor use. The swiveling head has a swivel range of 180°. Since no power connection is necessary, it can be easily moved at any time. Depending on the location, the lamp takes 5-6 hours until the battery is fully charged. When the battery is fully charged, an operating time of max. 12 hours is possible. Through the twilight and motion sensor, the lamp switches on only as soon as it falls below 20 Lux, whereby you can select between two operating modes. Operating mode A: After dark, the lamp lights up continuously with 15% of the total power, as soon as the sensor registers a movement, the lamp lights up at full power. Operating mode B: After dark, the light only lights up when the sensor detects movement. The respective light duration can be set from 8 seconds to 8 minutes. Battery type 18650 3.7V 2200mAh. The road light (PLS541502) is suitable for the wall light. The head has the dimensions LxWxD: 200x124x20mm.
