EVN PC670101140 PC670101140 Recessed floor light Bulb cannot be changed LED (monochrome) 11 W Stainless steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

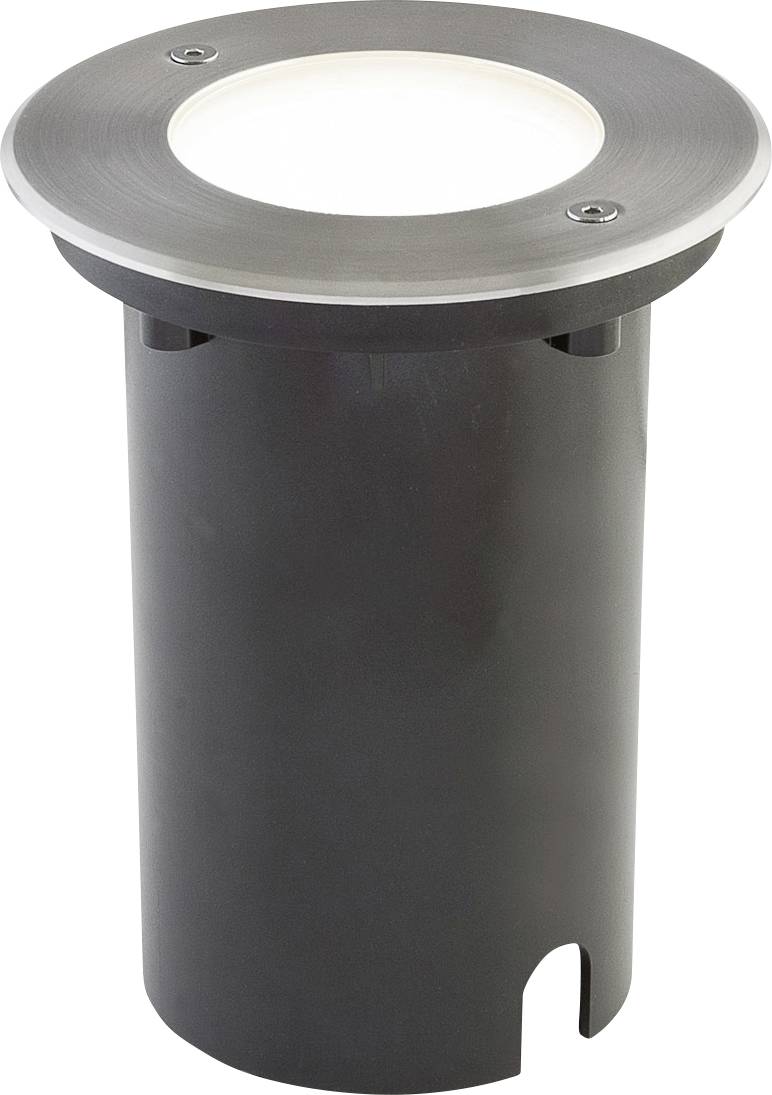

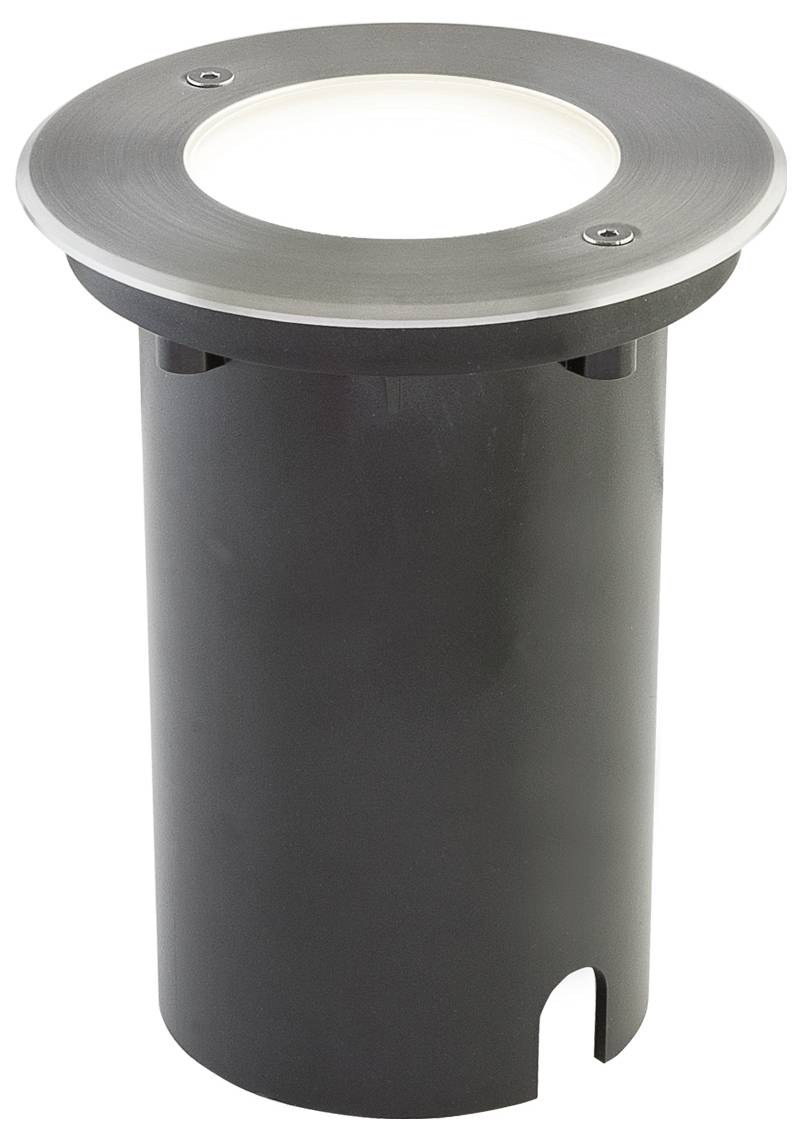

Power-LED sunken ground light, IP67
- Power= 11 W
- Total luminous flux= 880 lm
- Colour temperature= 4000 K
- Neutral white
Technical specifications
- Product type
Recessed floor light
- Operating voltage
100 V AC
240 V AC
- Outside Ø
125 mm
- Bulb type
LED (monochrome)
Bulb cannot be changed
- Rating per bulb
11 W
11 W
4000 K
- Colour
Neutral white
880 lm
- Total luminous flux
880 lm

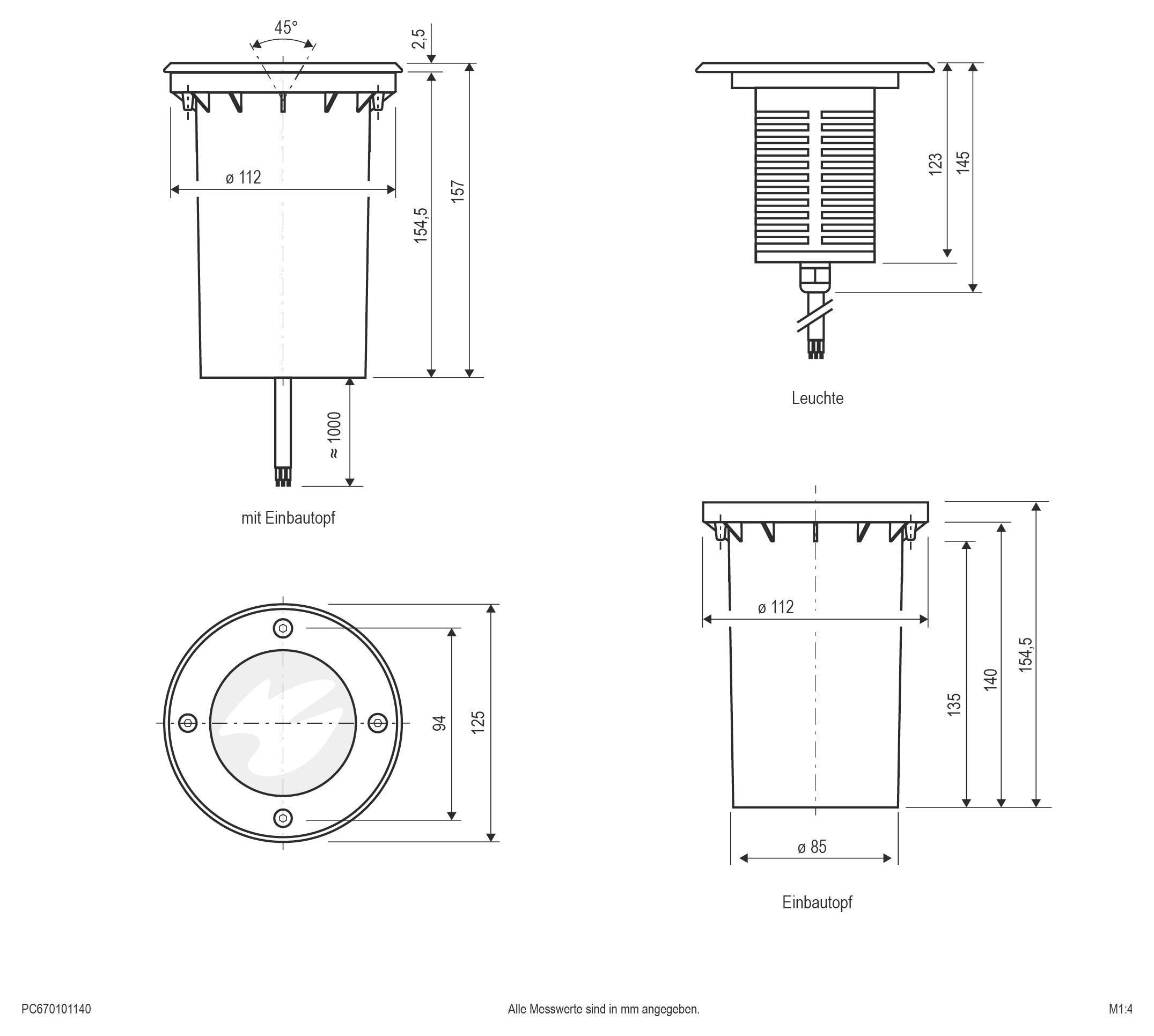

- Recess diameter
112 mm
- Recess depth
154 mm
- Protection screen
Textured
- Protection class
I
IP67
- Factory colour
Stainless steel
- Material
Aluminium
n.rel.
- Radiation angle
40°
80°
- Light bulb included
Yes
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Height
157 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2484135 EVN PC670101140 PC670101140 Recessed floor light Bulb cannot be changed LED (monochrome) 11 W Stainless steel
User & Safety Instructions
User & Safety Instructions 2484135 EVN PC670101140 PC670101140 Recessed floor light Bulb cannot be changed LED (monochrome) 11 W Stainless steel
Description
The lamp body of the sunken ground light is made of solid aluminum, the upper cover ring is made of V4A stainless steel and can be used for a variety of outdoor applications. The installation is done by means of the plastic mounting sleeve included in the delivery. The specified hole cut-out refers to the upper part of the mounting sleeve, which, after an offset of 20mm, is reduced to 88mm. Since the COB LED chip is permanently installed, there is no additional cost for bulbs. Likewise, there is no additional cost for a ballast, since the connection is made directly to the 230V supply line. The maximum overtravel speed is 20km/h.
