EVN PC67102402 PC67102402 Recessed floor light LED (monochrome) 24 W Stainless steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

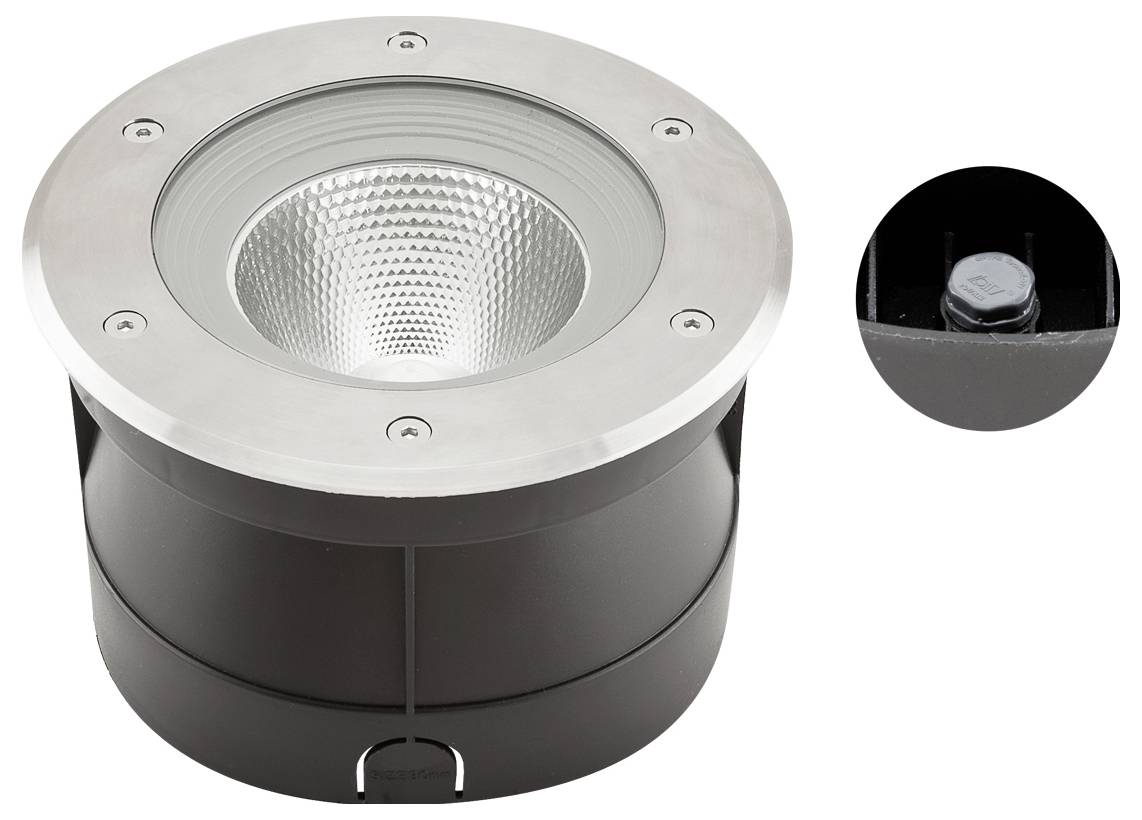

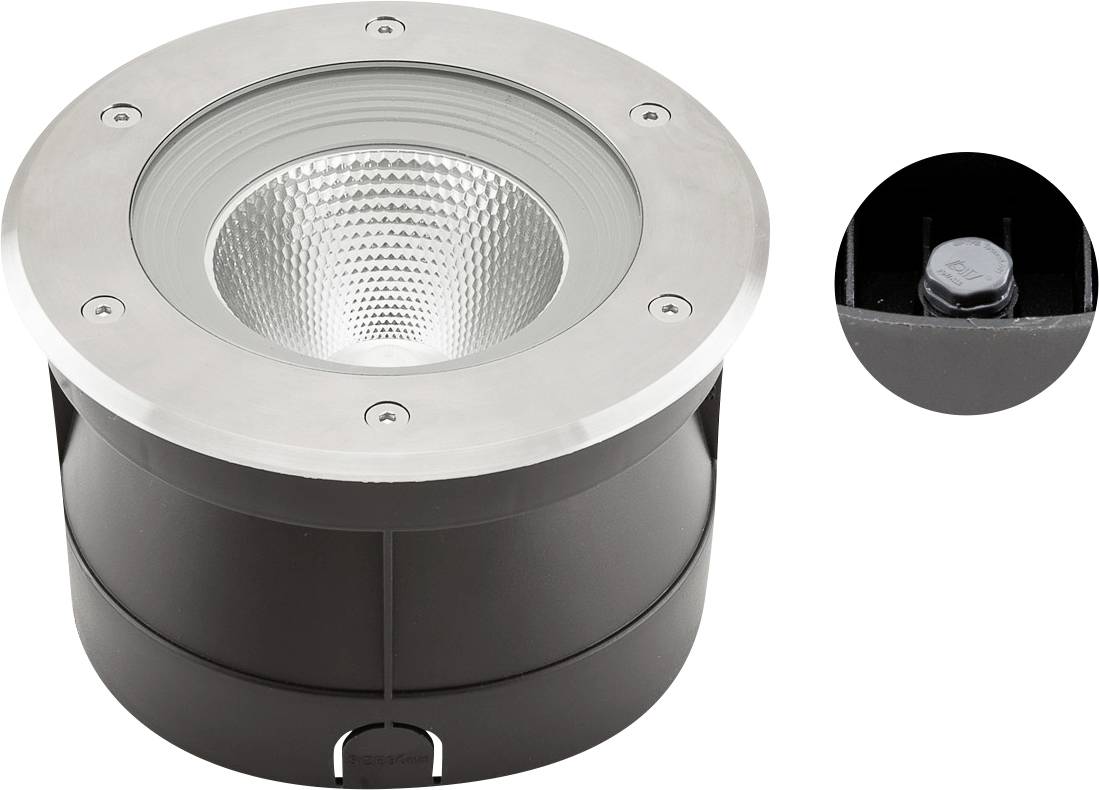

LED sunken ground light, IP67
- Power= 24 W
- Total luminous flux= 1636 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Product type
Recessed floor light
- Operating voltage
100 V AC
240 V AC

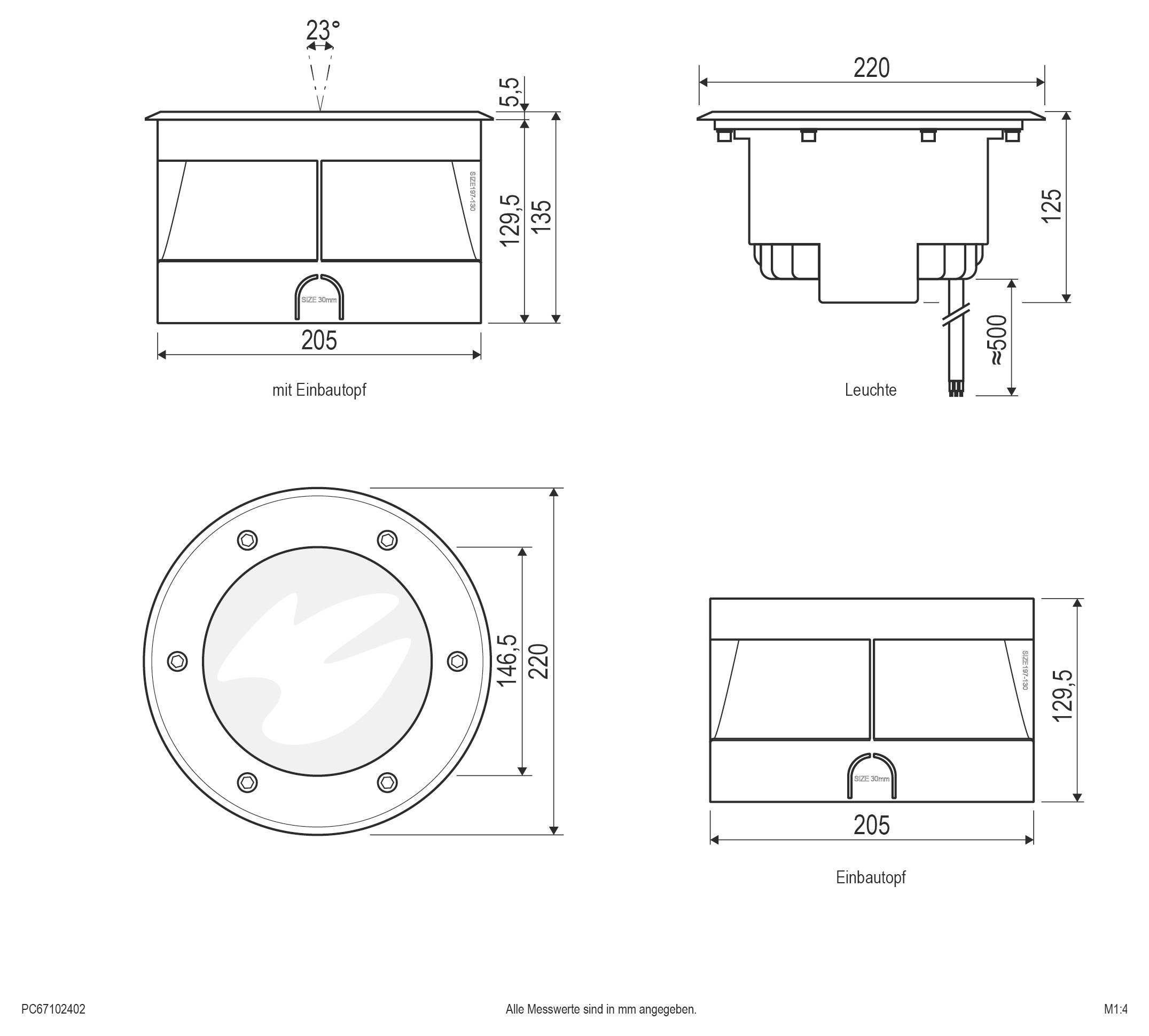

- Outside Ø
220 mm
- Bulb type
LED (monochrome)
- Rating per bulb
24 W
24 W
3000 K
- Colour
Warm white
1636 lm
- Total luminous flux
1636 lm
- Recess diameter
205 mm
- Recess depth
130 mm
- Protection screen
Textured
- Light features
Hardwearing
- Protection class
I
IP67
- Factory colour
Stainless steel
- Material
Aluminium
n.rel.
- Radiation angle
20°
40°
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
135 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2484139 EVN PC67102402 PC67102402 Recessed floor light LED (monochrome) 24 W Stainless steel
User & Safety Instructions
User & Safety Instructions 2484139 EVN PC67102402 PC67102402 Recessed floor light LED (monochrome) 24 W Stainless steel
Description
The lamp body of the sunken ground light is made of solid aluminum, the upper cover ring is made of V2A stainless steel and can be used for a variety of outdoor applications. The installation is done by means of the plastic mounting sleeve included in the delivery. Since the COB LED chip is permanently installed, there is no additional cost for bulbs. Likewise, there is no additional cost for a ballast, since the connection is made directly to the 230V supply line. The maximum overtravel speed is 20km/h. A matt glass and a glare shield are available as an option for the lamp.
