1/3
EVN PC67106002N PC67106002N Recessed floor light Bulb cannot be changed LED (monochrome) 6 W Stainless steel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

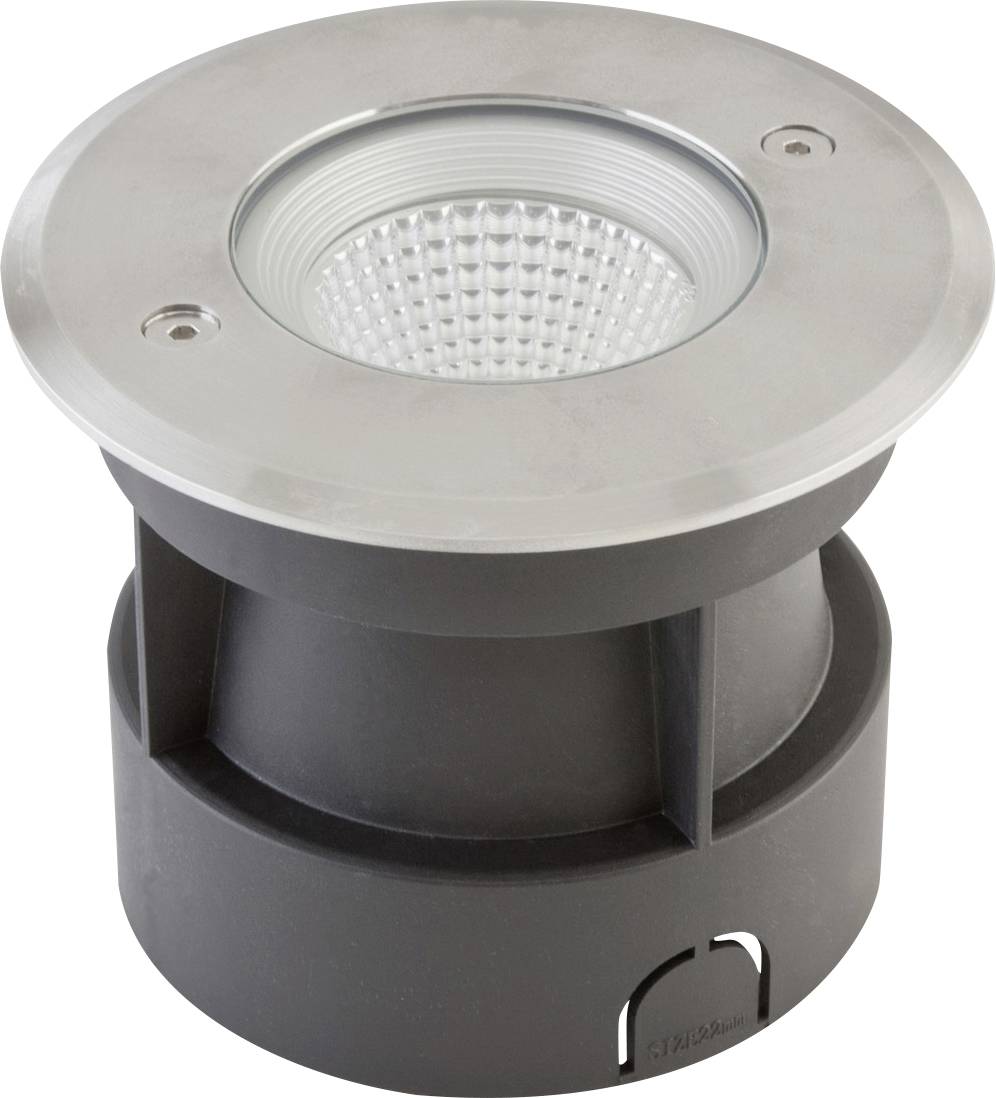

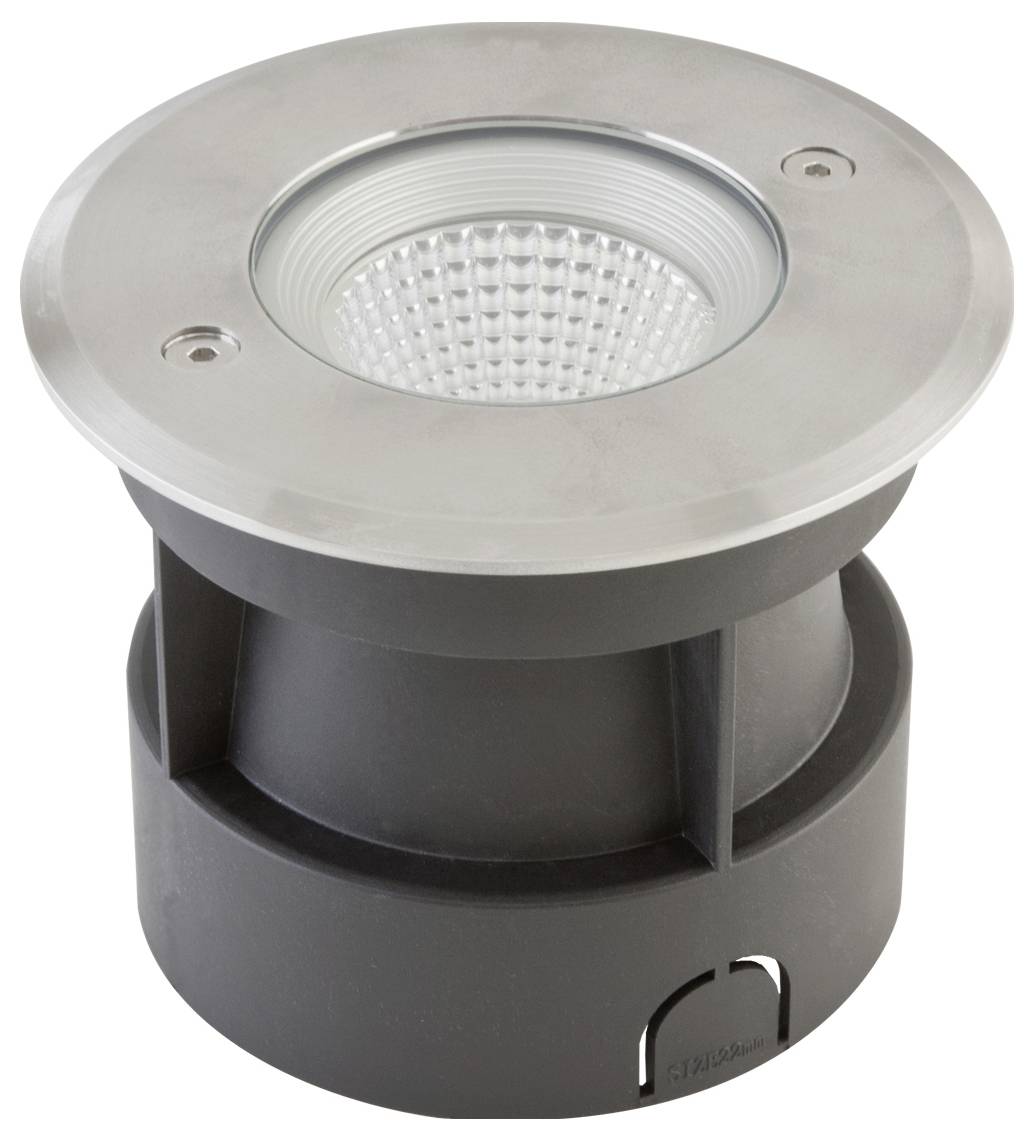

LED sunken ground light, IP67
- Power= 6 W
- Total luminous flux= 420 lm
- Colour temperature= 3000 K
- Warm white
Technical specifications
- Product type
Recessed floor light
- Operating voltage
100 V AC
240 V AC
- Outside Ø
120 mm
- Bulb type
LED (monochrome)
Bulb cannot be changed
- Rating per bulb
6 W
6 W
3000 K
- Colour
Warm white
420 lm
- Total luminous flux
420 lm
- Recess diameter
100 mm
- Recess depth
90 mm
- Protection screen
Textured
- Protection class
I
IP67
- Factory colour
Stainless steel
- Material
Aluminium
n.rel.
- Radiation angle
40°
80°
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
94 mm
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2484140 EVN PC67106002N PC67106002N Recessed floor light Bulb cannot be changed LED (monochrome) 6 W Stainless steel
User & Safety Instructions
User & Safety Instructions 2484140 EVN PC67106002N PC67106002N Recessed floor light Bulb cannot be changed LED (monochrome) 6 W Stainless steel
Description
The lamp body of the sunken ground light is made of solid aluminum, the upper cover ring is made of V2A stainless steel and can be used for a variety of outdoor applications. The installation is done by means of the plastic mounting sleeve included in the delivery. Since the COB LED chip is permanently installed, there is no additional cost for bulbs. Likewise, there is no additional cost for a ballast, since the connection is made directly to the 230V supply line. The maximum overtravel speed is 20km/h. The lamp has a beam angle of 60°.
