Name: EVN PLC651002 PLC651002 LED garden spotlight LED (monochrome) LED 10 W Anthracite
Brand: EVN
SKU: 2484143

Black outdoor spotlight on a ground stake with attached power cable, shown in side view on a white background.

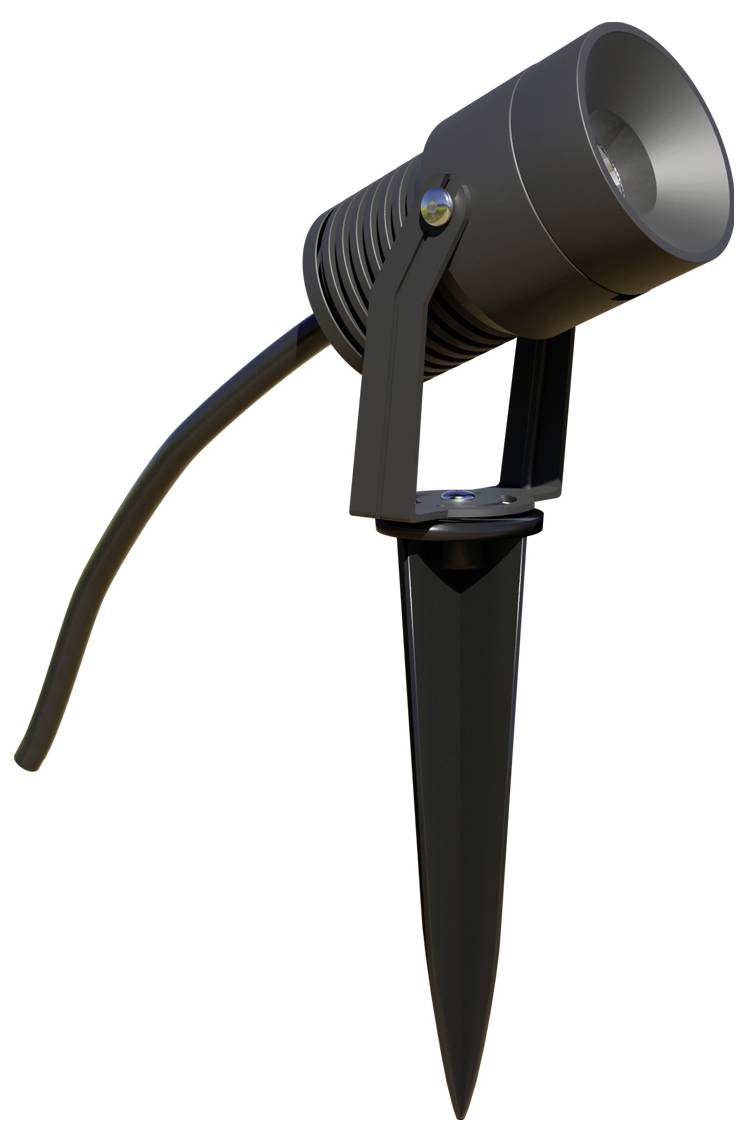

Black outdoor spotlight fixture with a stake mount and attached power cable, shown on a white background.

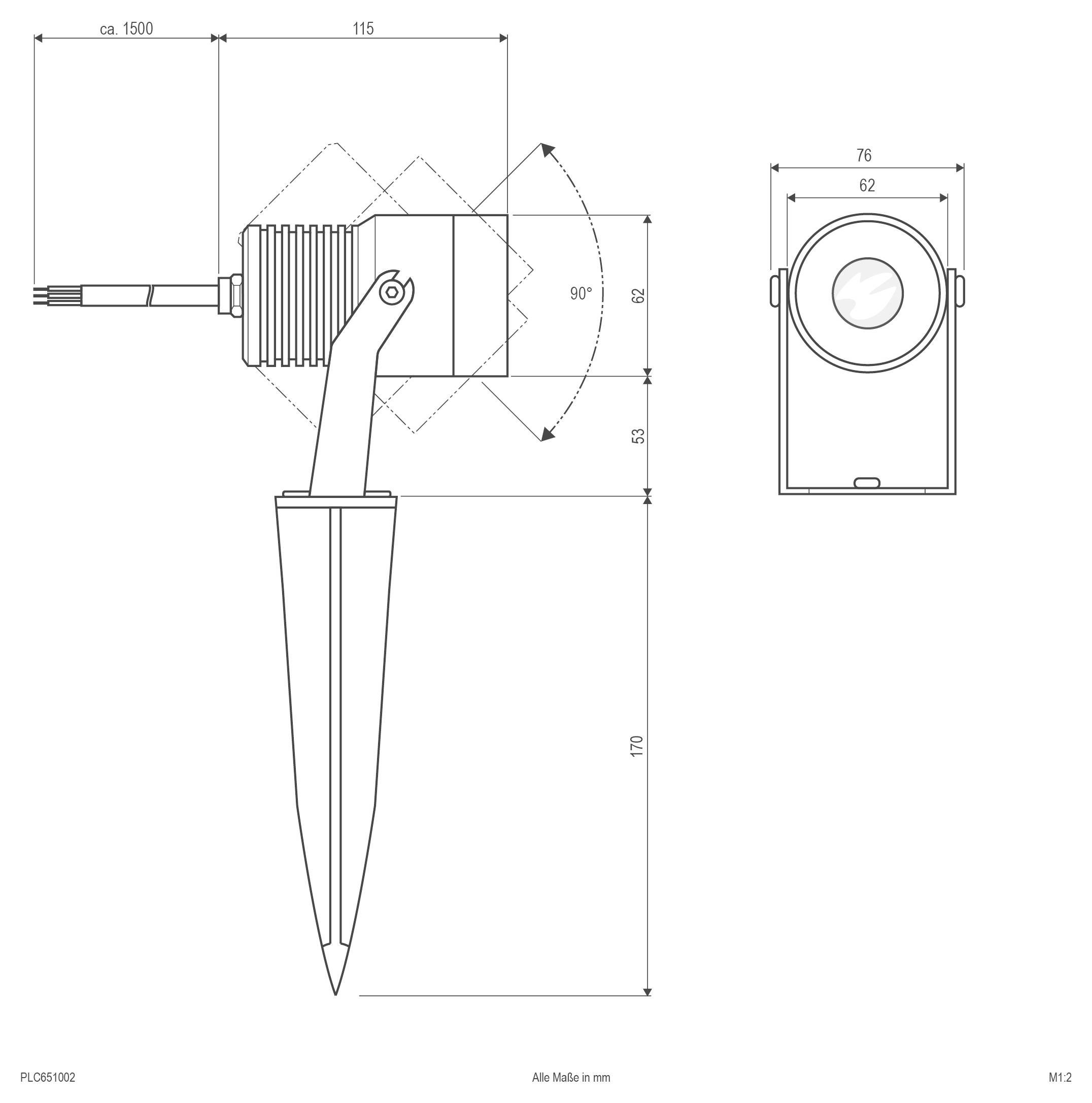

Technical dimension drawing of a ground spotlight on a stake, showing side and front views with measurements in millimeters and 90° tilt range.<br>

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LED spot with ground spike, IP65

Power= 10 W
Colour temperature= 3000 K
Warm white

Technical specifications

Product type: LED garden spotlight

Operating voltage: 240 V

Bulb type: LED (monochrome)

: LED

Rating per bulb: 10 W

: 10 W

: 3000 K

Colour: Warm white

Outside Ø: 62 mm

Light features: Incl. ground spike
Ceiling mount option

Swivel range (max.): 45°

Factory colour: Anthracite

Material: Aluminium

: IP65

Protection class: I

Feed length: 1.5 m

Dim: (L x W x H) 115 x 76 x 115 mm

: n.rel.

Width: 76 mm

Height: 115 mm

Length: 115 mm

Light bulb included: Yes

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2484143 EVN PLC651002 PLC651002 LED garden spotlight LED (monochrome) LED 10 W Anthracite

User & Safety Instructions

User & Safety Instructions 2484143 EVN PLC651002 PLC651002 LED garden spotlight LED (monochrome) LED 10 W Anthracite

Description

The lamp can be mounted either directly on the surface by means of the mounted bracket, or optionally with the provided ground spike in soft ground. At the radiator there is a 1.5m long connection cable with free wire ends. The swivel angle of the lamp is 45°. The ground spike has a length of 170mm.

This text is machine translated.
