Name: EVN R30180125 R30180125 LED ceiling light LED (monochrome) Built-in LED 18 W White
Brand: EVN
SKU: 2484180

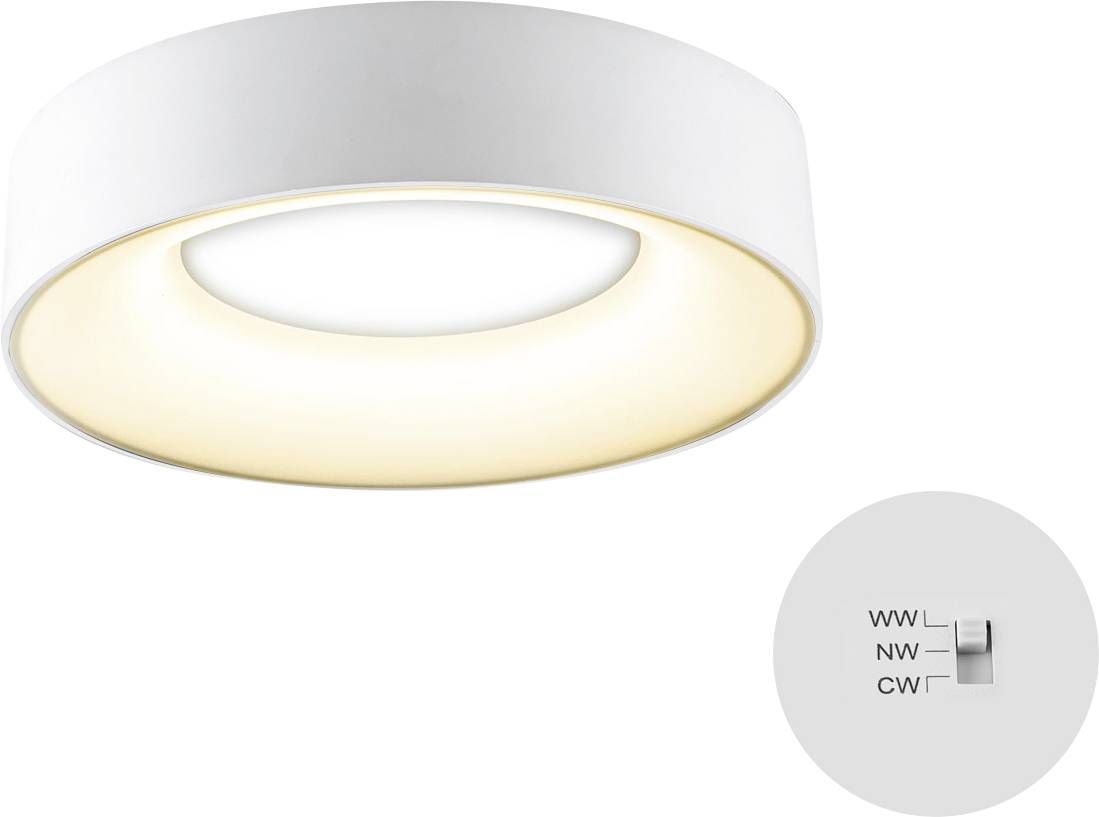

Round white LED ceiling light with warm glow, shown with a small switch labeled WW, NW, and CW to select light color temperature.

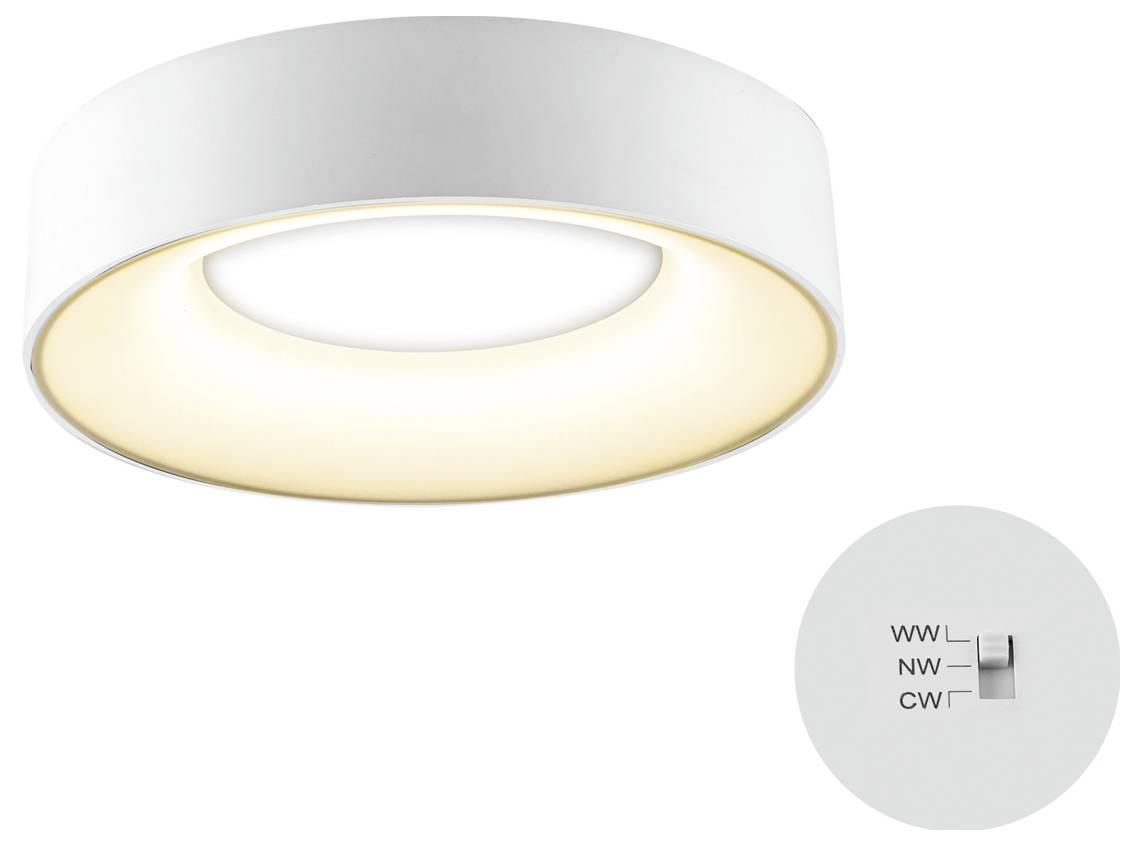

White round flush-mount ceiling light with warm glow; inset shows a small switch labeled WW, NW, and CW for color temperature control.

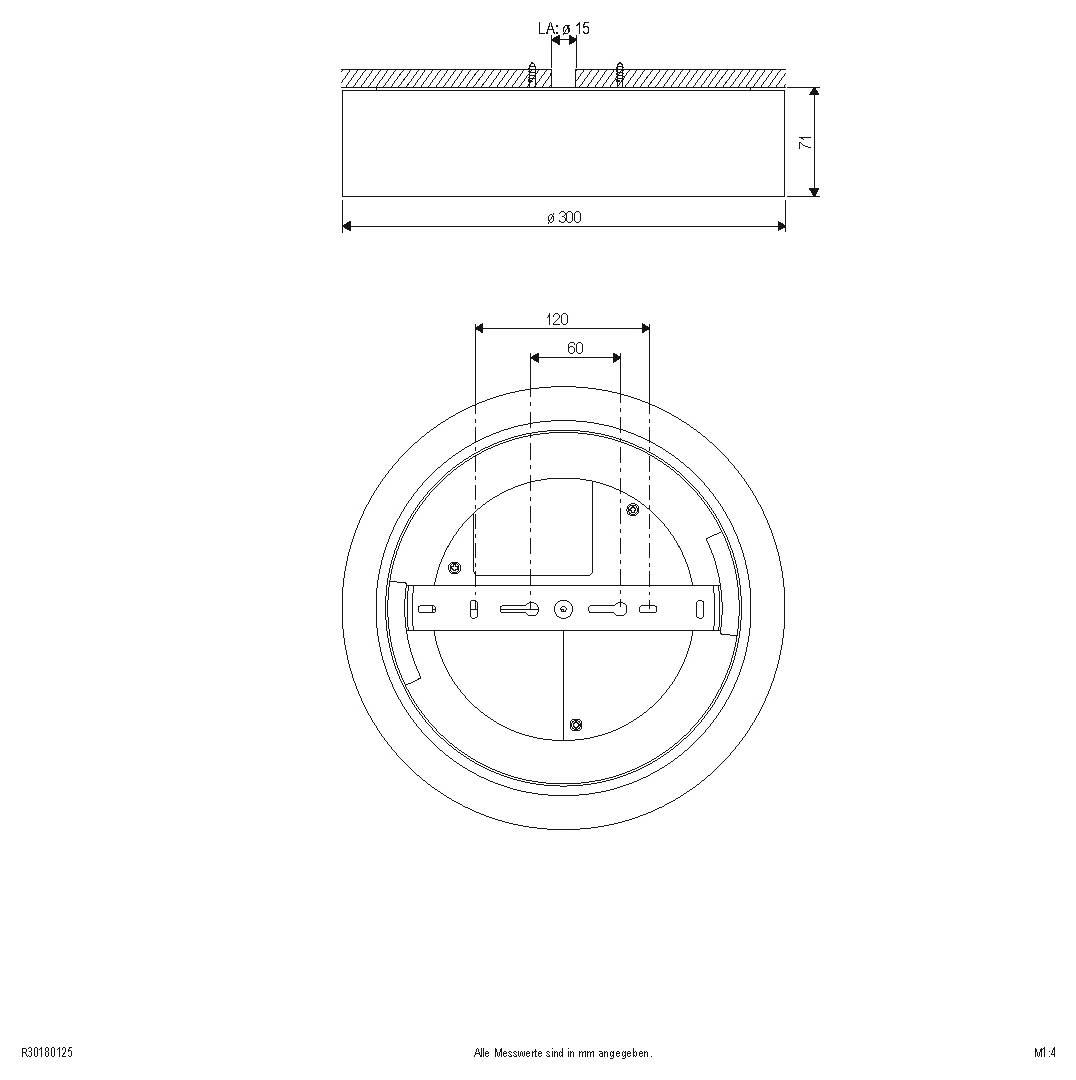

Technical drawing of a circular wall fixture, showing front and side views with dimensions Ø300, 120, 60, and depth 71.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LED mounted light with adjustable color temperature

Power= 18 W Total luminous flux= 1584 lm Colour temperature= 5700 K Warm white to daylight white

Technical specifications

Dim: (Ø x H) 300 mm x 71 mm

Operating voltage: 200 V
240 V

Product type: LED ceiling light

Bulb type: LED (monochrome)

Height: 71 mm

: Built-in LED

Rating per bulb: 18 W

: 18 W

(Ø): 300 mm

Light features: Suitable for wall mounting

Protection class: II

: IP54
IK06

Factory colour: White

Material: Plastic

: n.rel.

Colour: Warm white to daylight white

Light bulb included: Yes

: 5700 K

Colour temperature (max.): 5700 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 5700 K

Total luminous flux: 1584 lm

: 1584 lm

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Bulb type

Dim

Factory colour

Light features

Power

Product type

EVN AL20100102 AL20100102 LED ceiling light LED (monochrome) 10 W White

Item no:2483542

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 80 mm x 130 mm

White

Dimmable

10 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL20100902 AL20100902 LED ceiling light LED (monochrome) 10 W Black

Item no:2483543

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 80 mm x 130 mm

Black

Dimmable

10 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL20180902 AL20180902 LED ceiling light LED (monochrome) 18 W Black

Item no:2483545

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 80 mm x 160 mm

Black

Dimmable

18 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL54100102 AL54100102 LED ceiling light LED (monochrome) Built-in LED 10 W White

Item no:2483546

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x H) 70 mm x 100 mm

White

10 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN AL54101502 AL54101502 LED ceiling light LED (monochrome) Built-in LED 10 W Anthracite

Item no:2483547

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x H) 70 mm x 100 mm

Anthracite

10 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54130125 ALG54130125 LED ceiling light LED (monochrome) 13 W White

Item no:2483548

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x H) 213 mm x 129 mm

White

Incl. switch

13 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54131525 ALG54131525 LED ceiling light LED (monochrome) 13 W Anthracite

Item no:2483549

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x H) 213 mm x 129 mm

Anthracite

Colour-changing

13 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54250125 ALG54250125 LED ceiling light LED (monochrome) 25 W White

Item no:2483550

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 213 mm x 129 mm

White

Incl. switch

25 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALG54251525 ALG54251525 LED ceiling light LED (monochrome) 25 W Anthracite

Item no:2483551

Unavailable

Conrad Electronic

LED (monochrome)

(Ø x L) 213 mm x 129 mm

Anthracite

Colour-changing

25 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

EVN ALQ250102 ALQ250102 LED ceiling light LED (monochrome) 12 W White

Item no:2483552

Unavailable

Conrad Electronic

LED (monochrome)

(L x W x H) 250 x 250 x 33 mm

White

Suitable for wall mounting

12 W

LED ceiling light

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2484180 EVN R30180125 R30180125 LED ceiling light LED (monochrome) Built-in LED 18 W White

User & Safety Instructions

User & Safety Instructions 2484180 EVN R30180125 R30180125 LED ceiling light LED (monochrome) Built-in LED 18 W White

Description

LED mounted light for different application areas, such as covering area, but also effective lighting in hall, living room, office and much more. Due to the given protection class and the UV resistance, the lamp can also be used in outdoor areas without any problem. The switch on the rear side can be used to set one of three possible color temperatures. The possible color temperatures and resulting lumen are: 3000K (1440lm), 4000K (1584lm) and 5700K (1512lm). Through the large area of light emission, a very homogeneous illumination always arises.

This text is machine translated.
