1/3
EVN W840902 W840902 LED recessed wall light Built-in LED 1.5 W LED (monochrome) Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EVN Light technology LED Wall installation light W840902
- Power= 1.5 W
- Total luminous flux= 35 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Material of the housing: Glass
- Surface protection housing: Powder-coated
- Black enclosure
- Cover material: Glass opal
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 500 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: No.
- Without dimming function: Yes
- Light emission: Direct
- Protection class (IP) IP20
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Max. System power 1.5 W
- Light output 24 lm/W
- Rated light current according to IEC 62722-2-1: 35 lm
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 90-100
- Constant luminous flux regulation: No.

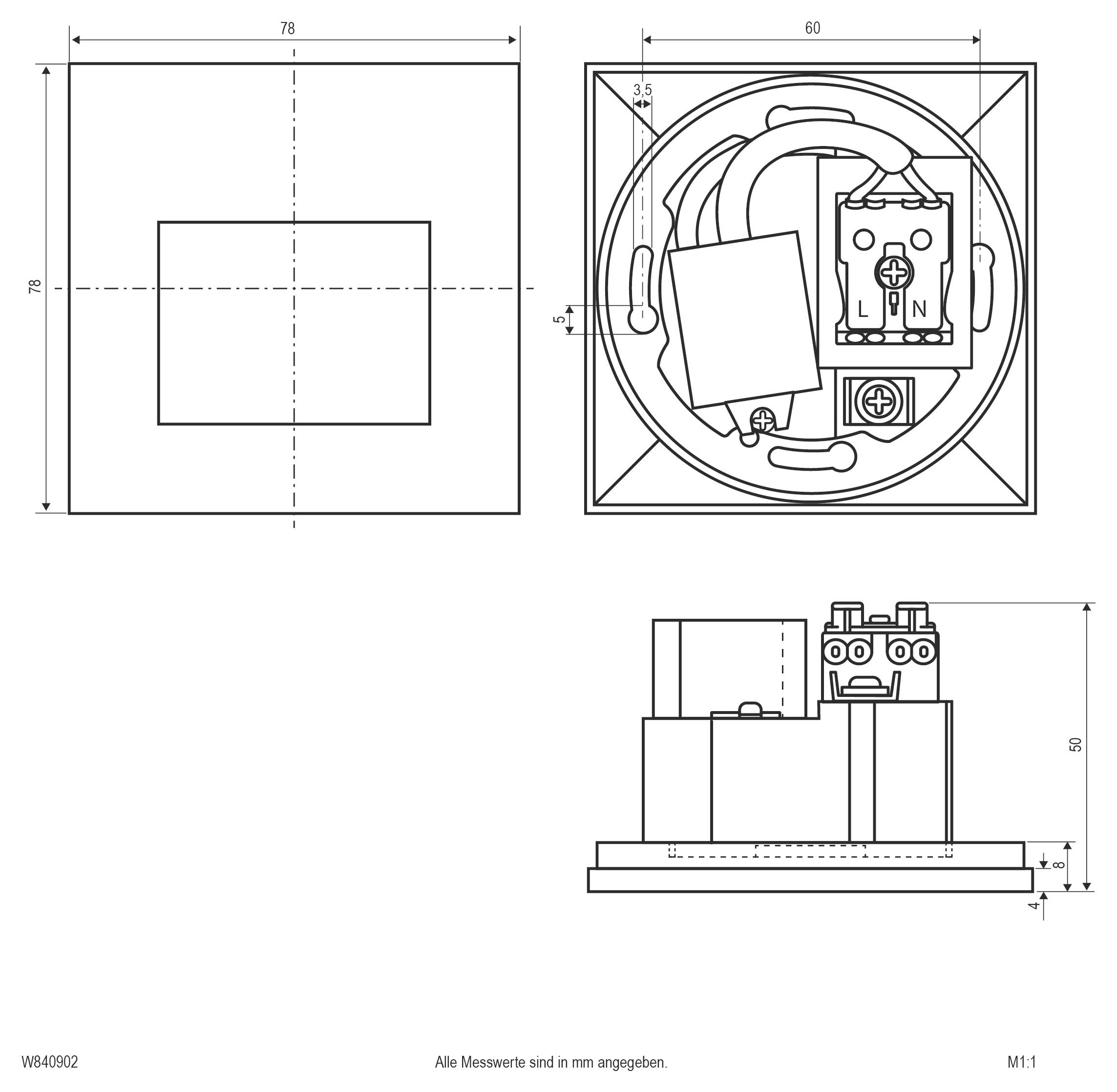

- Width 78 mm
- Height/depth 50 mm
- Length: 78 mm
- Installation height/depth 42 mm
- Installation diameter 60 mm
- Type of wiring: Suitable for through-wiring
- Number of poles: 3
- Connection type: Plug-in terminal
- Adjustable color temperature: No.
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED recessed wall light
- Operating voltage
230 V
- Operating current
500 mA
- Bulb type
LED (monochrome)
Built-in LED
1.5 W
- Light features
Incl. ballast
- Protection class
I
IP20
- Factory colour
Black
- Material
Glass
- Dim
(Ø x H) 60 mm x 50.00 mm
n.rel.
- Colour
White
- Light bulb included
Yes
3000 K
- Total luminous flux
35 lm
35 lm
- Width
78.00 mm
- Height
50.00 mm
- Length
78.00 mm
- Depth
50 mm
- (Ø)
60 mm
- Rated luminous flux
35 lm
- Colour rendering index
90-100
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Recess depth
42 mm
- Nominal voltage
230 V
- Recess diameter
60 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3152087 EVN W840902 W840902 LED recessed wall light Built-in LED 1.5 W LED (monochrome) Black
User & Safety Instructions
User & Safety Instructions 3152087 EVN W840902 W840902 LED recessed wall light Built-in LED 1.5 W LED (monochrome) Black
Description
The LED recessed wall light is designed in such a way that it can be mounted either directly on the wall with two screws, or alternatively in switch boxes. The screws are covered by the magnetically removable frame. The design and power make this lamp perfect for orientation. Thanks to the MM mark, the lamp can also be used in furniture construction. The mains adapter is already installed at the rear of the lamp.
