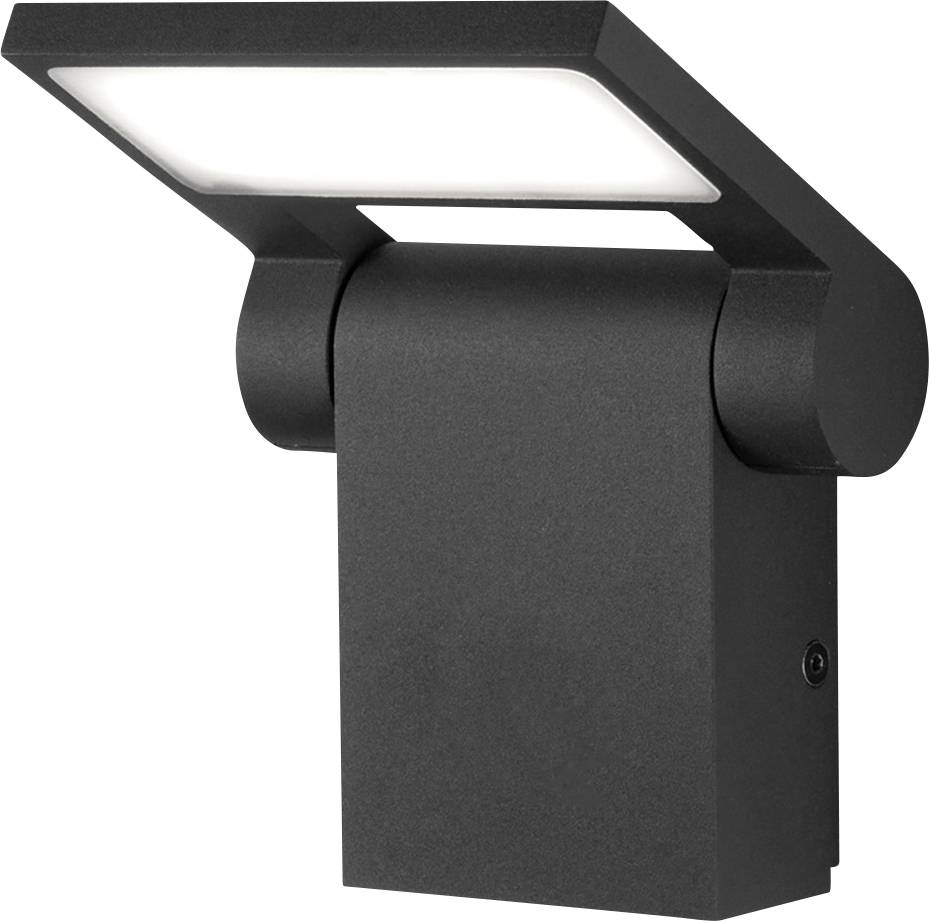

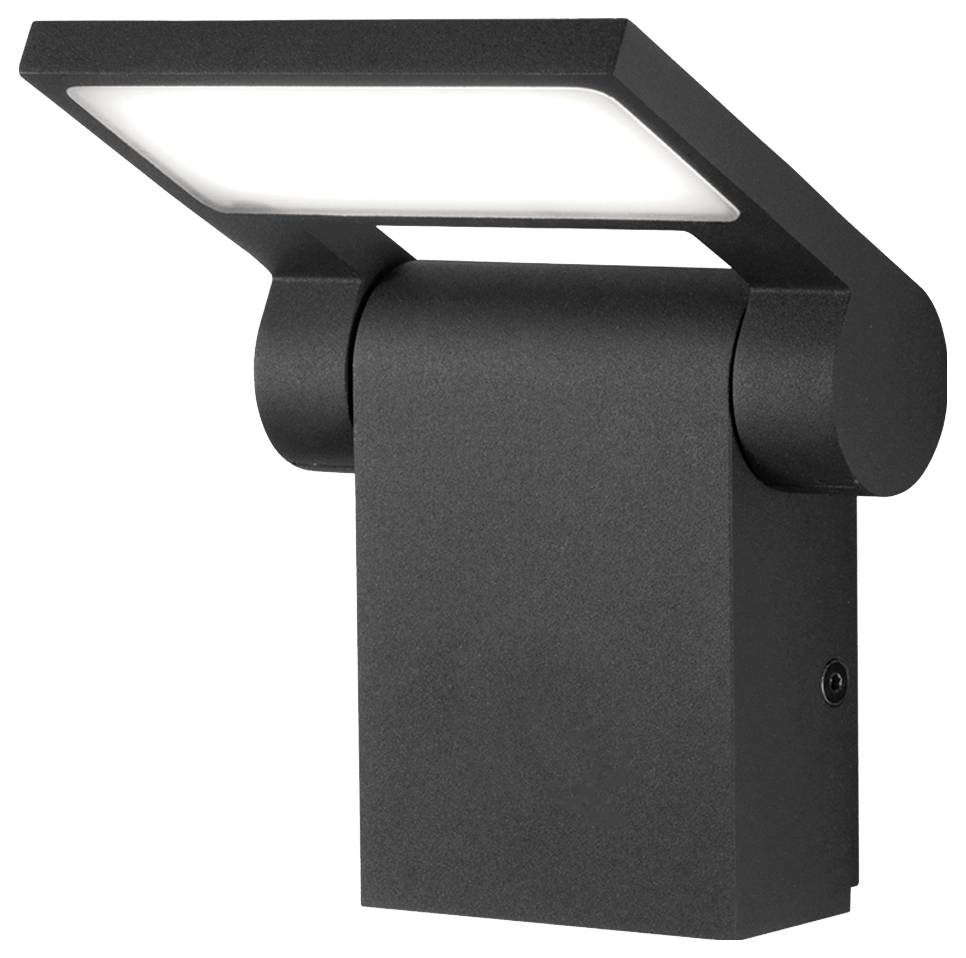

EVN WL54151002 WL54151002 LED outdoor wall light LED (monochrome) 10 W Anthracite
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED wall light, swiveling, IP54
- Power= 10 W Total luminous flux= 600 lm Colour temperature= 3000 K Warm white
Technical specifications
- Product type
LED outdoor wall light
- Operating voltage
100 V
240 V
- Bulb type
LED (monochrome)
- Rating per bulb
10 W
10 W
3000 K
- Colour
Warm white
600 lm
- Total luminous flux
600 lm
- Light features
Swivelling
- Swivel range (max.)
90°
- Protection class
I
IP54
- Factory colour
Anthracite
- Material
Aluminium
- Dim

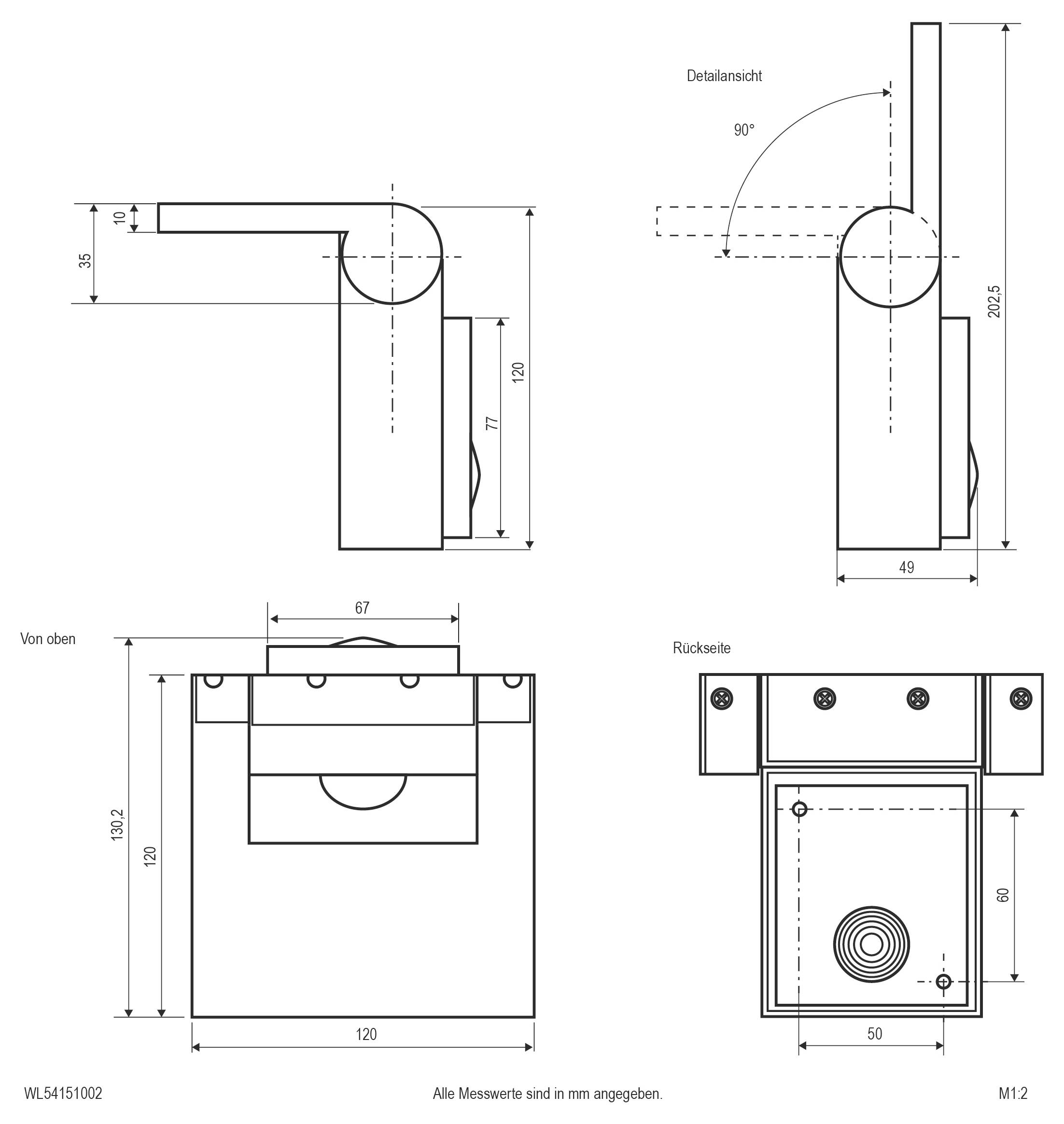

(L x W x H) 118 x 120 x 130 mm
n.rel.
- Light bulb included
Yes
- Width
120 mm
- Height
130 mm
- Length
118 mm
- Radiation angle
80°
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2484345 EVN WL54151002 WL54151002 LED outdoor wall light LED (monochrome) 10 W Anthracite
User & Safety Instructions
User & Safety Instructions 2484345 EVN WL54151002 WL54151002 LED outdoor wall light LED (monochrome) 10 W Anthracite
Description
The LED wall light was made of aluminum in the die-cast process and is suitable for various applications in indoor and outdoor areas. The swiveling head has a swivel range of 90°. The ballast is integrated in the base of the lamp. The road light (PL54151002) is suitable for the wall light.
