EVOline 1592.7100.2200 Built-in power strip Glass matt PG connector 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
EVOline 1592.7100.2200 Built-in power strip
- Protection class: I
- Connection power (max.): 3600 W
- With touch protection
Technical specifications
- Charging current of the USB Chargers: 1,000 mA
- Standby power of the USB Charger: 0.5 W
- Approvals: TÜV type certificate
- Nominal current: 16 A
- Product type
Built-in power strip
- Light bulb features
Retractable
incl. USB
- Outlets
2
- Cable length
3.00 m
- Used at
Indoors
- Mounting type
Recess-mount
- Material
Plastic
- Type
With flat plug EVOline ® PlugFix
- Plug type
PG connector
- Operating voltage
230 V
- Power rating
3600 W
- Factory colour
Glass matt
- Length
225.2 mm
- Width
104.8 mm
- Height
53 mm
IP40
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1597630 EVOline 1592.7100.2200 Built-in power strip Glass matt PG connector 1 pc(s)
Description

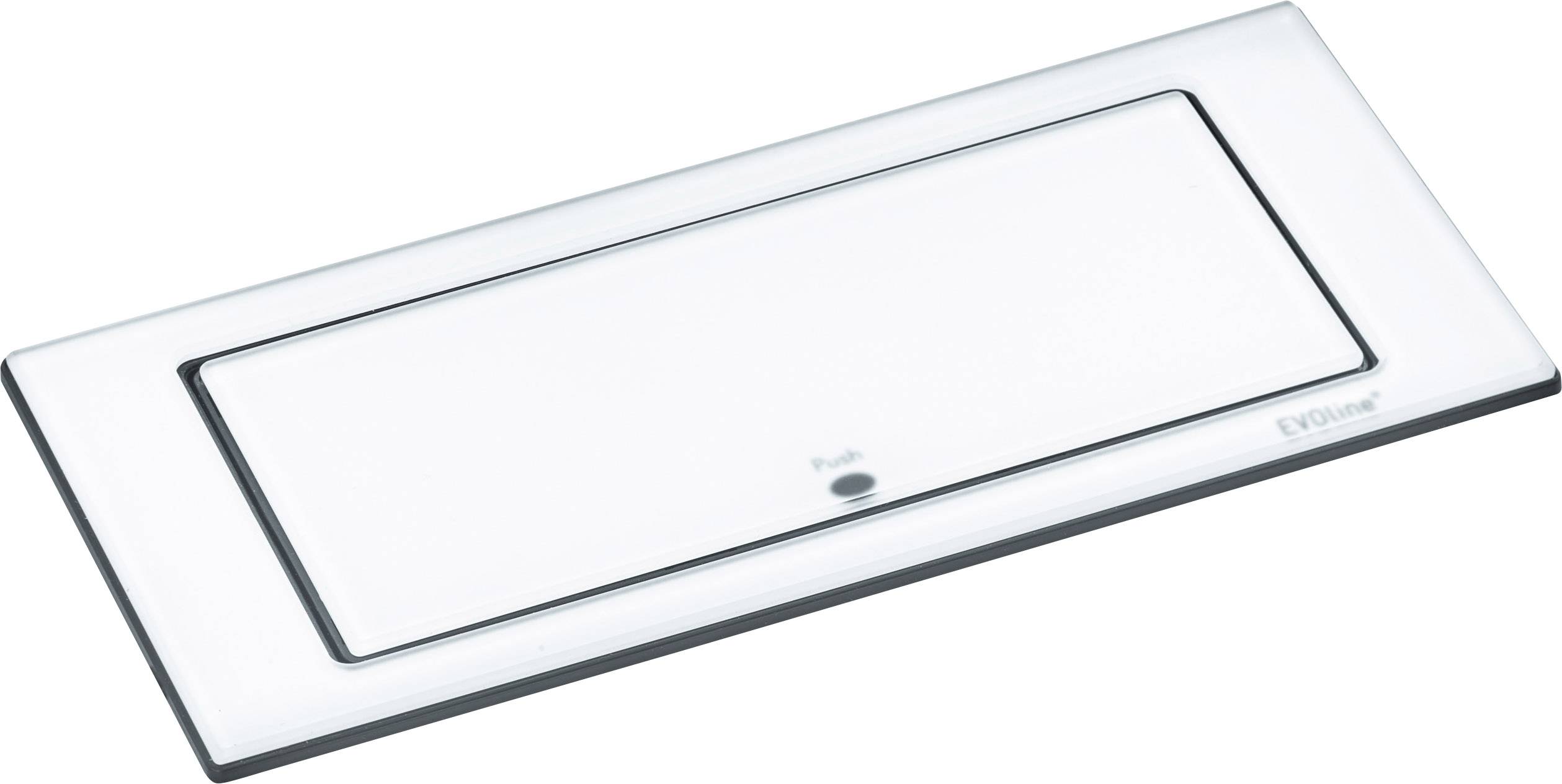

The EVOline BackFlip opens simply by tapping the cover (soft-touch). Charging function via a USB socket type A, without PC connection, for commercially available devices with USB connection as: mobile phones, MP3 Player, Apple products and other mobile devices.

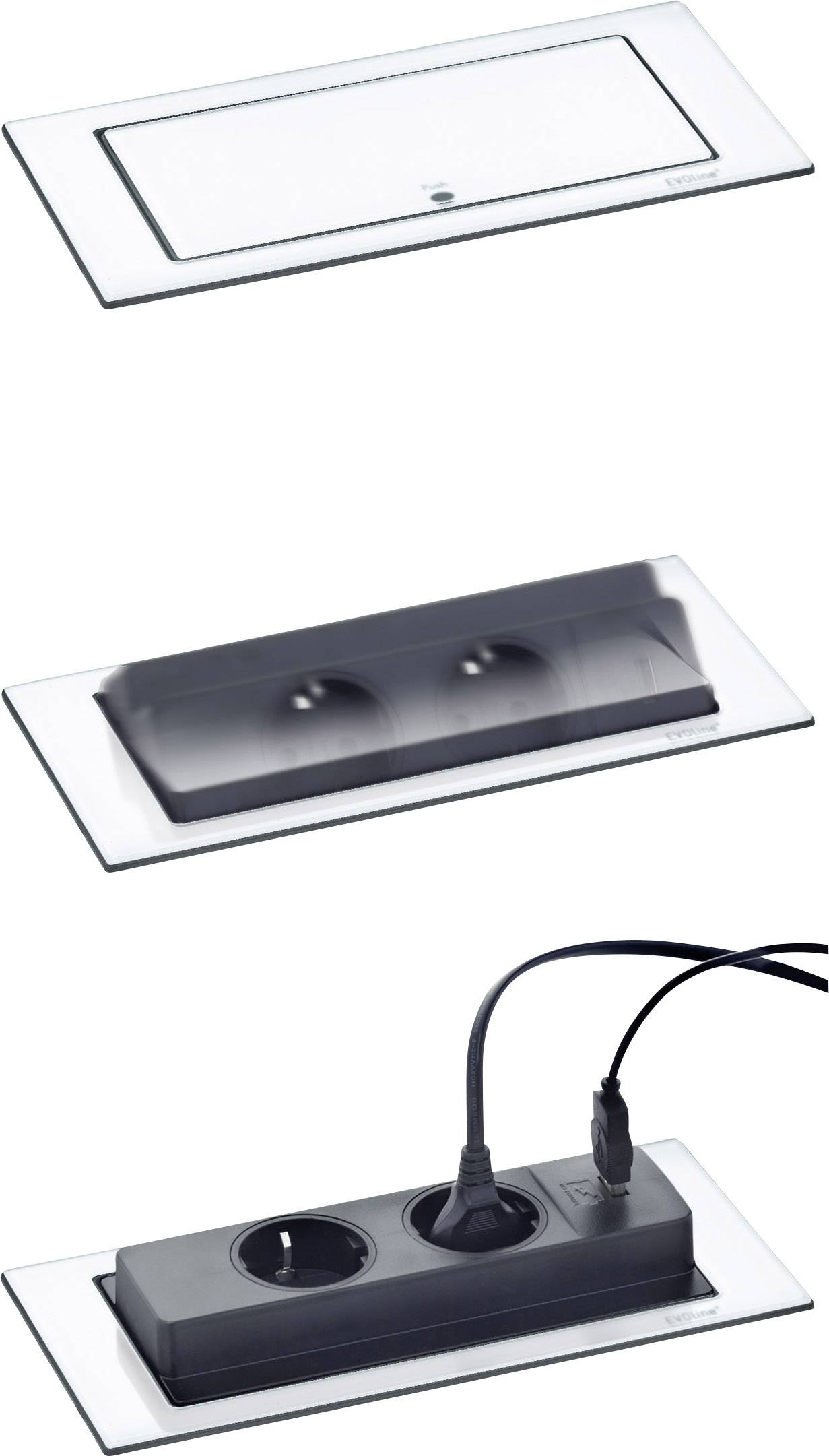

Always available, but never in the way. Is closed EVOline ® BackFlip only a thin plate on the work surface. With a finger when touched he turns 180 degrees and shows its useful side: USB charger and sockets are high above the plate that they run in the side of water are protected. The mounting depth is still only 53 millimeters, so that even a mounting with drawers or devices is possible.
This text is machine translated.
Always available, but never in the way. Is closed EVOline ® BackFlip only a thin plate on the work surface. With a finger when touched he turns 180 degrees and shows its useful side: USB charger and sockets are high above the plate that they run in the side of water are protected. The mounting depth is still only 53 millimeters, so that even a mounting with drawers or devices is possible.
This text is machine translated.
Features
- Fixed mains connection cable 3m
- With EVOline PlugFix.
Scope of delivery
- BackFlip socket
- 2 x installation wedge
- User manual.
Hints
The Charging function of the USB chargers can be due to the large number of providers and devices will not in any case can be guaranteed.
