Name: Exsys Exsys EX-6084 - Netzwerkadapter - PCIe - Gigabit PCI card
Brand: Exsys
SKU: 3796888

Highlights & Details

EXSYS EX-6084 Network Card Built-in Ethernet 1000 Mbit / s.

Cable connected
PCI Express Ethernet
Gigabit Ethernet 1000 Mbit/s
4 x Realtek RTL8153B chipset

Technical specifications

Host Interface: PCI Express
Interface: Ethernet
Maximum data transfer rate of 1000 Mbit/s.

Product type: PCI card

10/100/1000 Mbps ports: 4 x

Depth: 67 mm

Width: 115 mm

Transfer type: Corded

Weight: 200 g

UKCA: yes

Operating temperature (T-T): 0 - 55 °C

Ethernet LAN: yes

VLAN tagging: yes

Jumbo frames: 16000

Internal: yes

Wake-on-LAN ready: yes

Flow control support: yes

Jumbo frames support: yes

Manual: yes

Full duplex: yes

Auto MDIX IEEE: yes

Drivers included: yes

Operating relative humidity (H-H): 5 - 95 %

Storage temperature (T-T): -40 - 75 °C

Documents & Downloads

Datasheet

Datasheet 3796888 Exsys Exsys EX-6084 - Netzwerkadapter - PCIe - Gigabit PCI card

User & Safety Instructions

User & Safety Instructions 3796888 Exsys Exsys EX-6084 - Netzwerkadapter - PCIe - Gigabit PCI card

Description

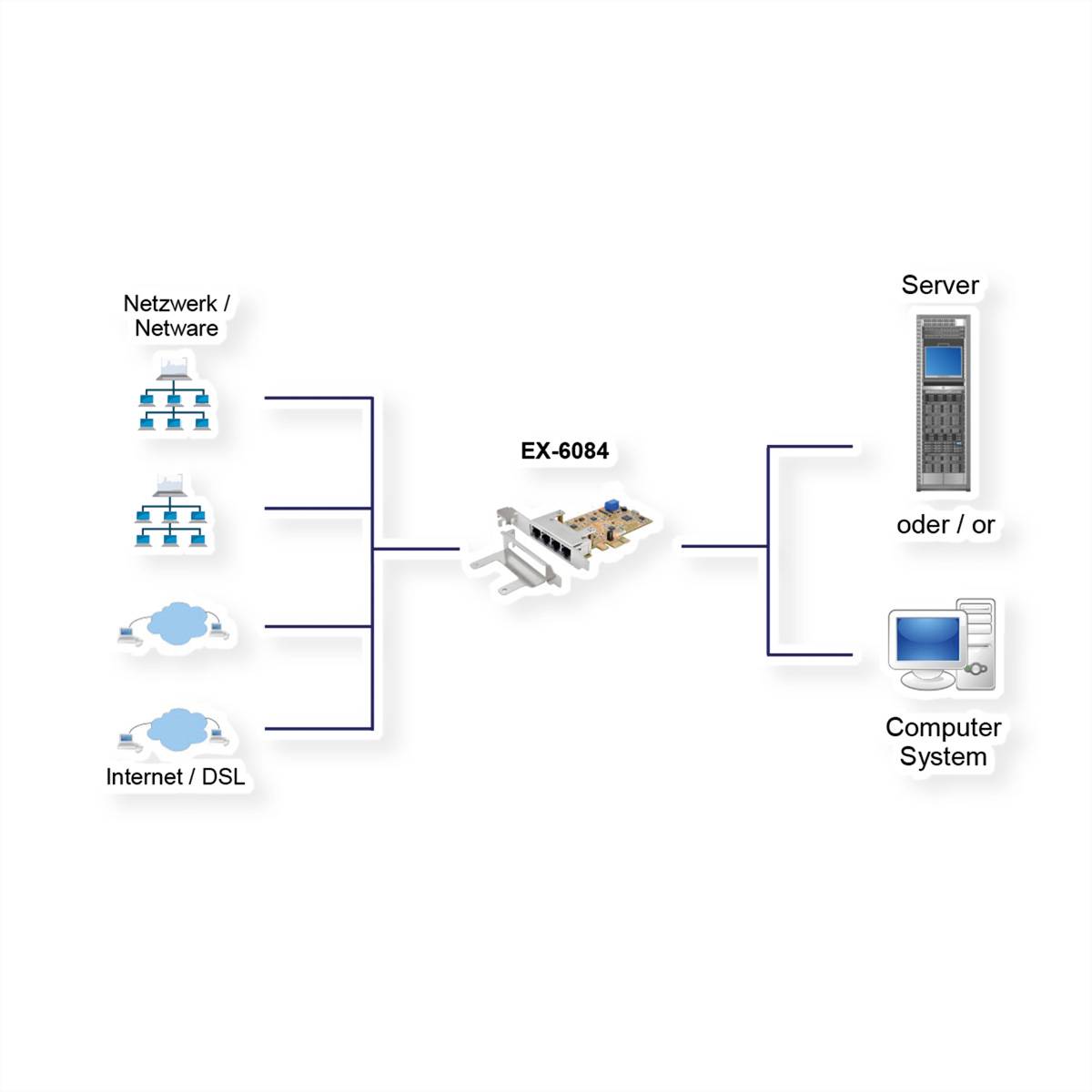

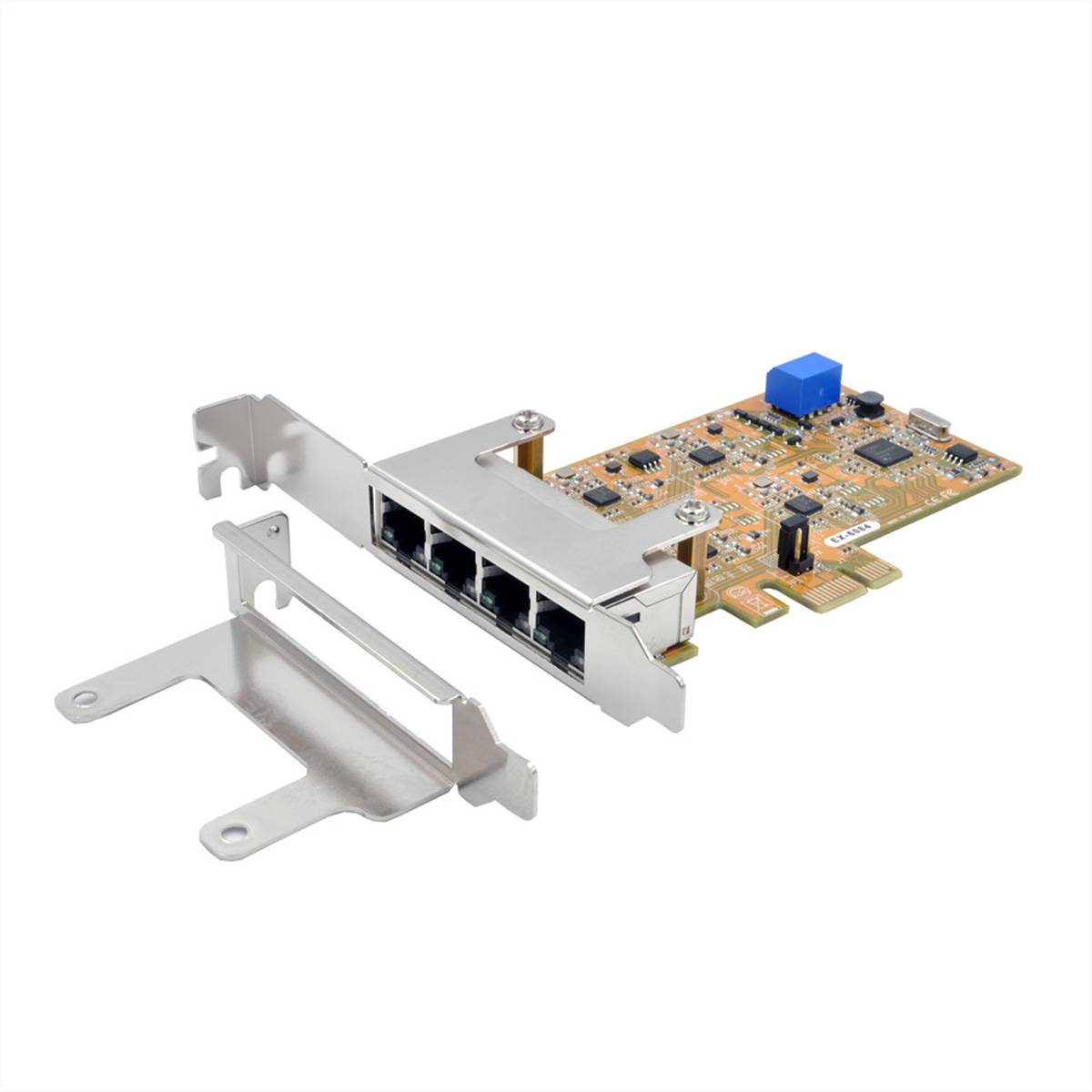

The EX-6084 is a fast Quad (quad) Gigabit Ethernet card for the PCIe x1 Bus. The EX-6084 supports a data transfer rate of up to 1000 Mbit per second for each connection. Larger amounts of data can thus be transferred faster and more efficiently in the network. The EX-6084 supports half and full duplex as well as NWay auto-negotiation, in order to have the speed in the network (10/100/1000 Mbit/s.) automatically. Furthermore, the card is equipped with Auto-MDI/MDI-X and it offers a very far-reaching support of various operating systems. The installation is very simple and you can switch each individual port on and off during operation. With the EX-6084 a Low Profile bracket is supplied for slim computers up to 8cm height.

This text is machine translated.

Features

Supports 100/1000/10000 Base-T Ethernet standard
Supports Auto-MDI/MDI-X Auto (for crossover cable)
Supports Jumbo frame up to 16Kbytes
EEE (Energy Efficient Ethernet)
Wake-on-LAN and Remote Wake-up
Supports full duplex flow control (IEEE 802.3x)
Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging, IEEE 802.11P Layer 2 priority encoding
Virtual NIC support
LED display of data transfer
Standard CAT-6A wiring with RJ45 connection

Scope of delivery

EX-6084, driver CD, manual
