Name: Exsys Exsys USB 3.2 Gen1 HUB 10-Port Managed N. inkl.USB-Kabel DIN-Rail-Kit (EX-1580SH USB hub Black
Brand: Exsys
SKU: 3797015

Highlights & Details

Managed, network-divisible 10-port USB 3.2 Gen 1 metal HUB, 15KV ESD protection (DIN-rail)...

USB 3.2 Gen 1 metal HUB with ten downstream USB ports
15KV ESD surge protection per output
Software manageable bus power for each port
Up to 1.5 A on all 10 ports in self-Power mode
Heavy duty metal casing

Technical specifications

Product group: Hubs
Product type USB Hub
Colour, black
PC connections 1x USB 3.2 1st Gen 1 upstream C socket
Connections: 10x USB 3.2 1st Gen 1 downstream C socket
Transmission quality USB 3.2 Gen 1 1 SuperSpeed 5 Gbps (USB 3.1 1st Gen, USB 3.0)
Page 1 Type of connector: USB Type C (USB-C)
Page 1 Type of connection: Female (female)
Page 2 Type of connector: USB Type C (USB-C)
Page 2 Type of connection: Female (female)
Total number of ports: 10
Range of application: External
Material (casing): Metal
Power supply included in delivery: No.
Min. Operating temperature 0 °C
Max. operating temperature: 55 °C
Height: 198 mm
Width 55 mm
Depth: 30.8 mm
Weight: 360 g
Packaging height 60 mm
Package width 170 mm
Packaging depth 250 mm
Package weight: 0,598 kg
Gross weight: 0.598

Product type: USB hub

Factory colour: Black

Weight: 0.598

Cable length: 0 m

Version: Cable

Type A: USB-C® socket

Type B: USB-C® socket

Keyboard layout: German, QWERTZ

Cable use: USB 3.2 1st Gen (USB 3.0)

Connector version: threaded

Connection type: USB-C®

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3797015 Exsys Exsys USB 3.2 Gen1 HUB 10-Port Managed N. inkl.USB-Kabel DIN-Rail-Kit (EX-1580SH USB hub Black

User & Safety Instructions

User & Safety Instructions 3797015 Exsys Exsys USB 3.2 Gen1 HUB 10-Port Managed N. inkl.USB-Kabel DIN-Rail-Kit (EX-1580SH USB hub Black

Description

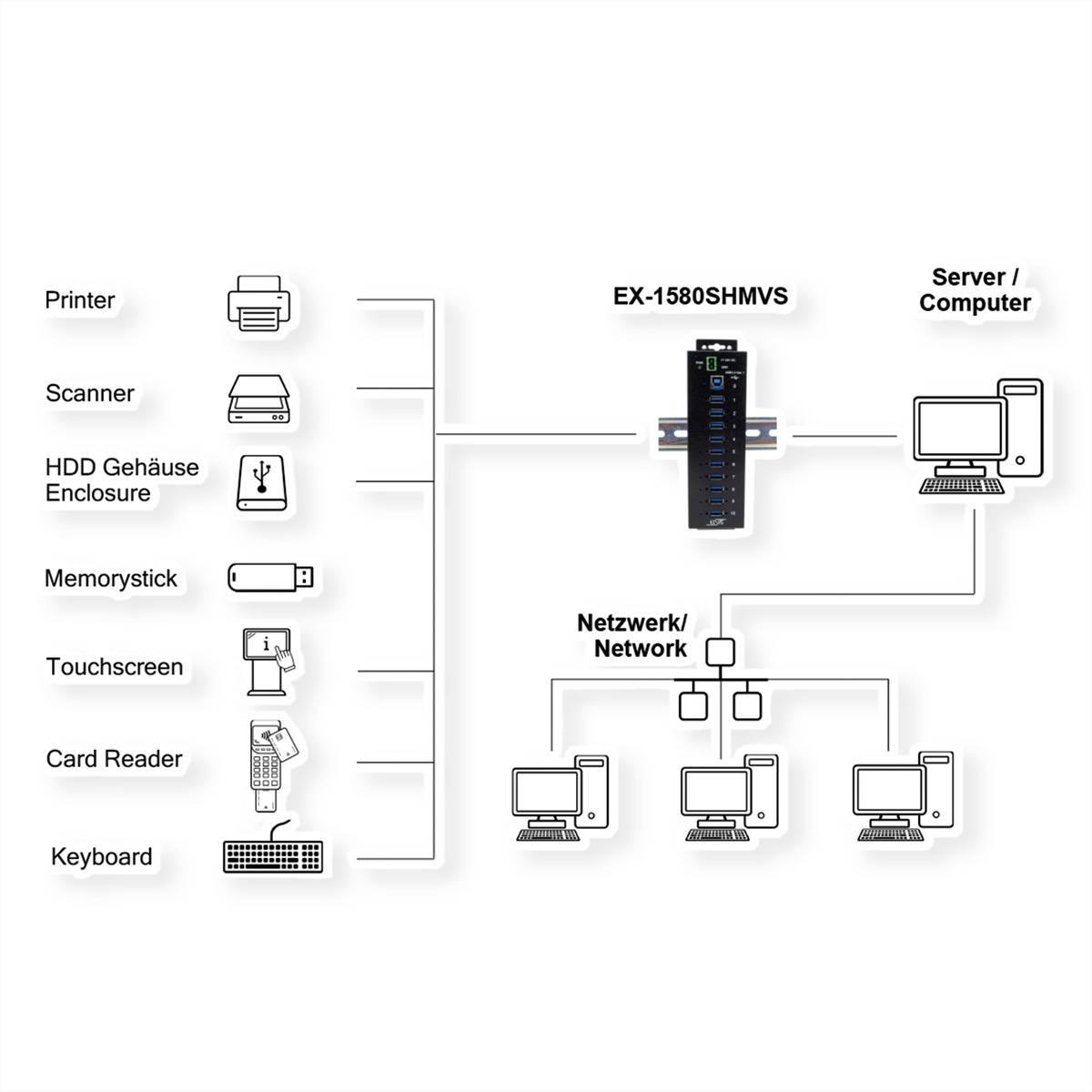

Managed, network-divisible 10-port USB 3.2 Gen 1 metal HUB, 15KV ESD protection (DIN-rail) The USB 3.2 Gen 1 (formerly USB 3.0 or 3.1 Gen 1) Managed Metal Hub EX-1580SHMVS with ten screw-able downstream ports offers extensive and unique functions for industrial applications. It can be controlled by multiple users over the network. The EX-1580SHMVS supports the USB battery charging specification v1.2 (SDP, CDP, DCP) as well as some manufacturer-specific charging modes such as Apple 2.4 A and Samsung. It can be used in automation, industrial and office applications and mounted on the wall, under a table or in a 19" cabinet thanks to its well thought-out housing. . The EX-1580SHMVS comes with management software that allows the USB bus voltage (ports) of the individual devices to be switched on and off or reset the entire USB hub. It possesses a flash-memory for storing the desired starting status.

This text is machine translated.

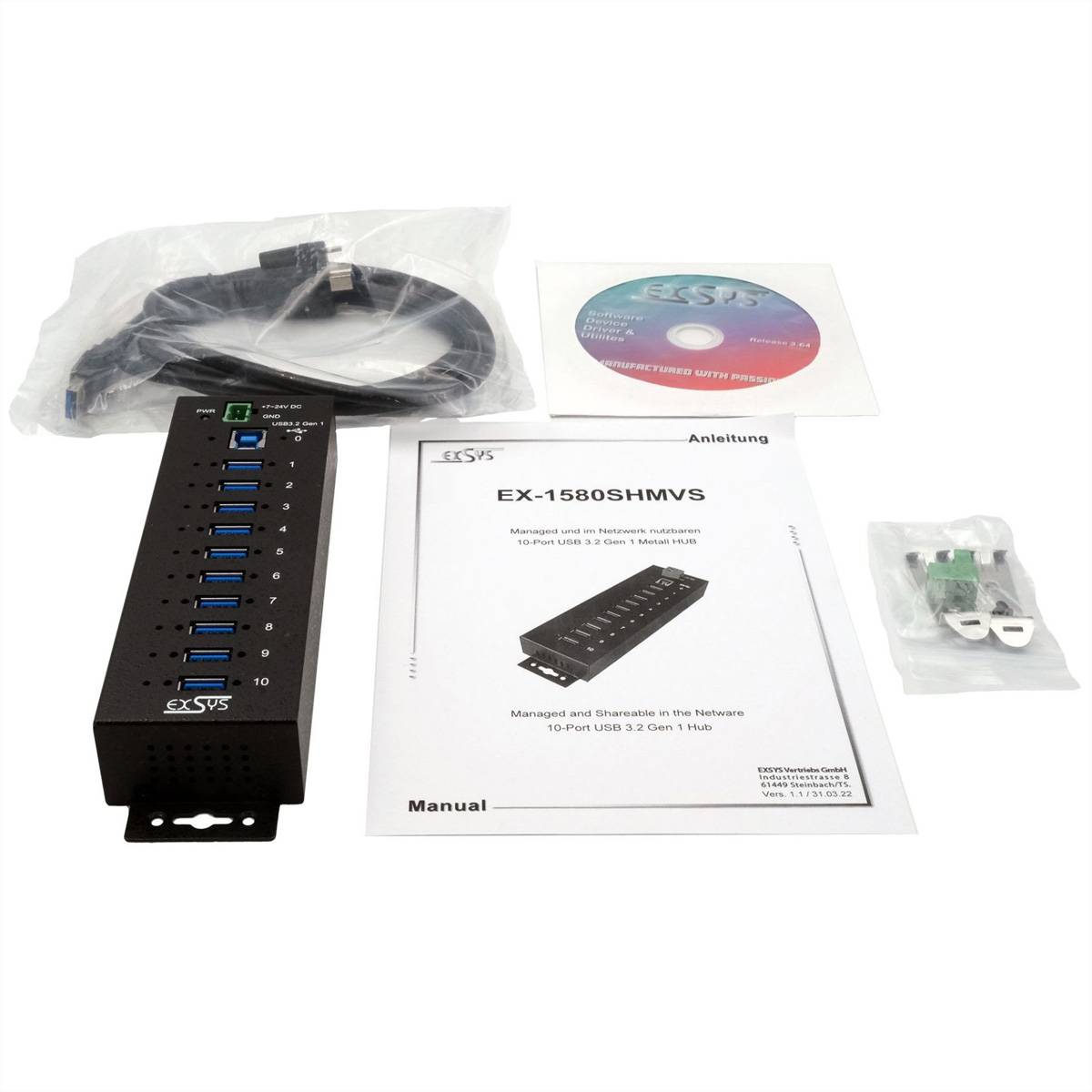

Scope of delivery

EX-1580SHMVS, USB 3.2 Gen1 cable 1.5 m, DIN rail kit, driver CD, manual

Description

Managed, network-divisible 10-port USB 3.2 Gen 1 metal HUB, 15KV ESD protection (DIN-rail) The USB 3.2 Gen 1 (formerly USB 3.0 or 3.1 Gen 1) Managed Metal Hub EX-1580SHMVS with ten screw-able downstream ports offers extensive and unique functions for industrial applications. It can be controlled by multiple users over the network. The EX-1580SHMVS supports the USB battery charging specification v1.2 (SDP, CDP, DCP) as well as some manufacturer-specific charging modes such as Apple 2.4 A and Samsung. It can be used in automation, industrial and office applications and mounted on the wall, under a table or in a 19" cabinet thanks to its well thought-out housing. . The EX-1580SHMVS comes with management software that allows the USB bus voltage (ports) of the individual devices to be switched on and off or reset the entire USB hub. It possesses a flash-memory for storing the desired starting status.

This text is machine translated.

Scope of delivery

EX-1580SHMVS, USB 3.2 Gen1 cable 1.5 m, DIN rail kit, driver CD, manual
