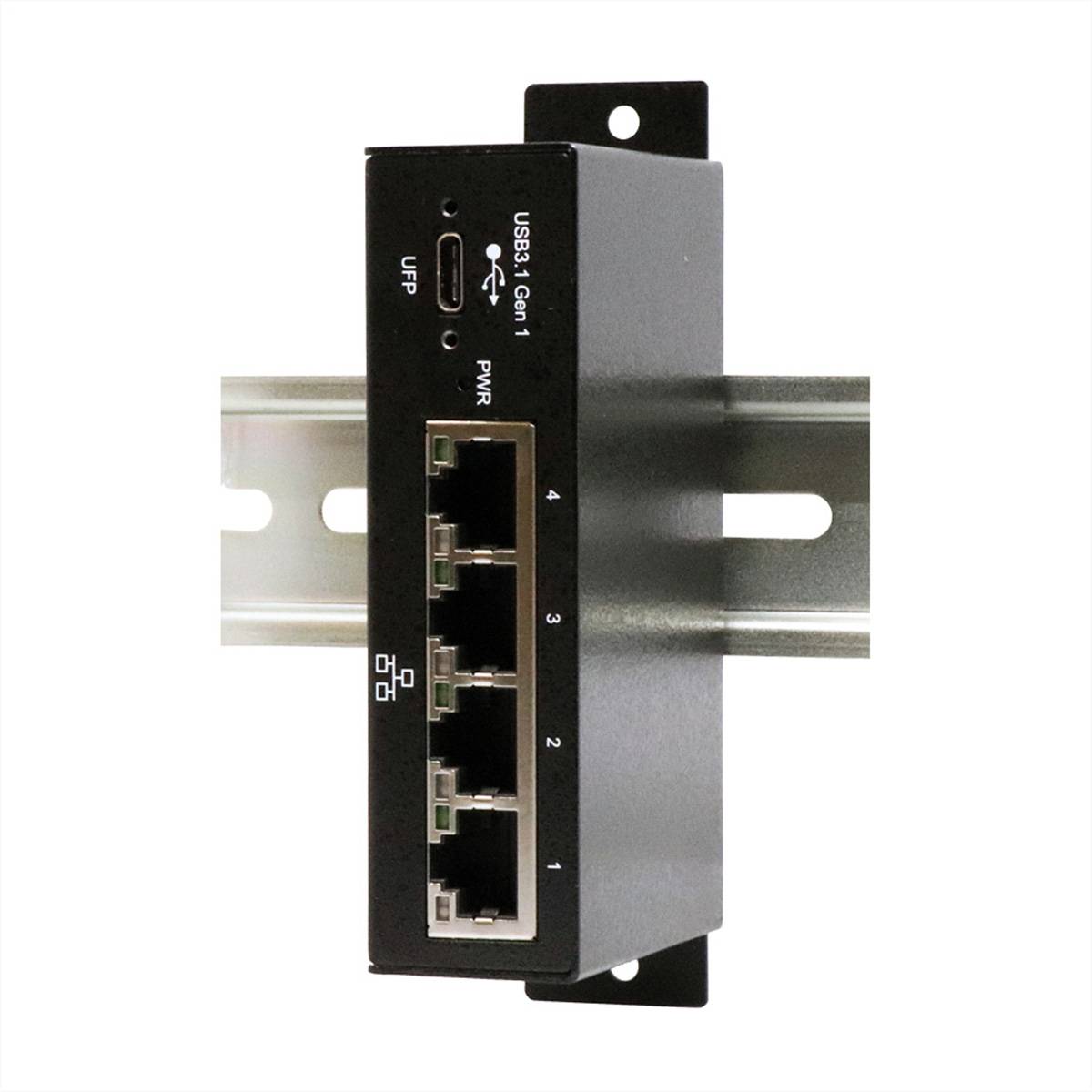

Exsys PC Adapter Exsys EX-1330M - Netzwerkadapter - USB 3.1 Gen 1 0 cm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
EXSYS EX-1330M interface hub USB 3.2 Gen 1 (3.1 Gen 1) type B 1000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces RJ-45
- Number of connections: 5
- 1000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 1000 Mbit/s.
- Product type
PC Adapter
- Cable length
0 cm
- Factory colour
Black
- Cable use
PC
- Version
Adapter
- Range of use
USB adapters
- Depth
57 mm
- Height
26.2 mm
- Width
114.7 mm
- Material (details)
Metal
- 10/100/1000 Mbps ports
4 x
- Weight
380 g
- UKCA
yes
- Operating temperature (T-T)
0 - 55 °C
- Ports quantity
5
- Operating temperature (T-T)
32 - 131 °F
- Quantity per pack
1 Stück(e)
- Jumbo frames
16000
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- Jumbo frames support
yes
- DIN rail kit included
yes
- Full duplex
yes
- Auto MDI/MDI-X
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-40 - 75 °C
Documents & Downloads
Datasheet
Datasheet 3796890 Exsys PC Adapter Exsys EX-1330M - Netzwerkadapter - USB 3.1 Gen 1 0 cm
User & Safety Instructions
User & Safety Instructions 3796890 Exsys PC Adapter Exsys EX-1330M - Netzwerkadapter - USB 3.1 Gen 1 0 cm
Description

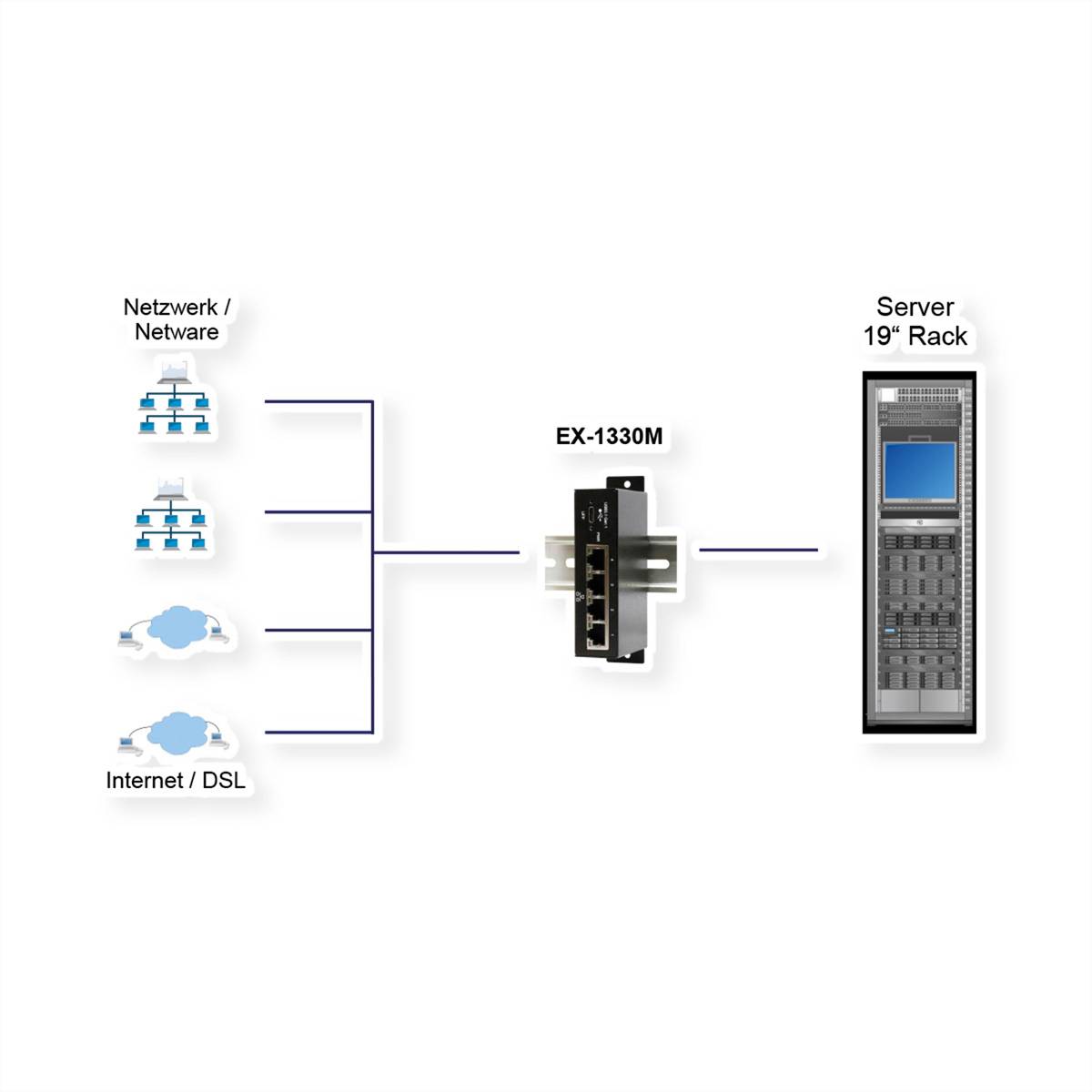

With the EX-1330M you can Windows, Linux or MAC computer/notebook via the USB
3.0 with A- or C-socket output, simultaneously in four 10/100/1000Mbps networks or
Internet connection. The EX-1330M can be installed simultaneously to an existing network card and provides four additional 1Gigabit outputs. Installation is very easy without having to open the systems. The EX-1330M has a metal housing and an adapter C-connector to A-socket EX-47990. The outputs can be switched on and off individually.
This text is machine translated.
3.0 with A- or C-socket output, simultaneously in four 10/100/1000Mbps networks or
Internet connection. The EX-1330M can be installed simultaneously to an existing network card and provides four additional 1Gigabit outputs. Installation is very easy without having to open the systems. The EX-1330M has a metal housing and an adapter C-connector to A-socket EX-47990. The outputs can be switched on and off individually.
This text is machine translated.
Features
- Supports 100/1000/10000 Base-T Ethernet standard
- Supports Auto-MDI/MDI-X Auto (for crossover cable)
- Supports Jumbo frame up to 16Kbytes
- EEE (Energy Efficient Ethernet)
- Wake-on-LAN and Remote Wake-up
- Supports full duplex flow control (IEEE 802.3x)
- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging
- IEEE 802.1p layer 2 priority encoding
- Virtual NIC support
- LED display of data transfer
- Standard CAT-6A wiring with RJ45 connection
- Realtek RTL8153B chip set
Scope of delivery

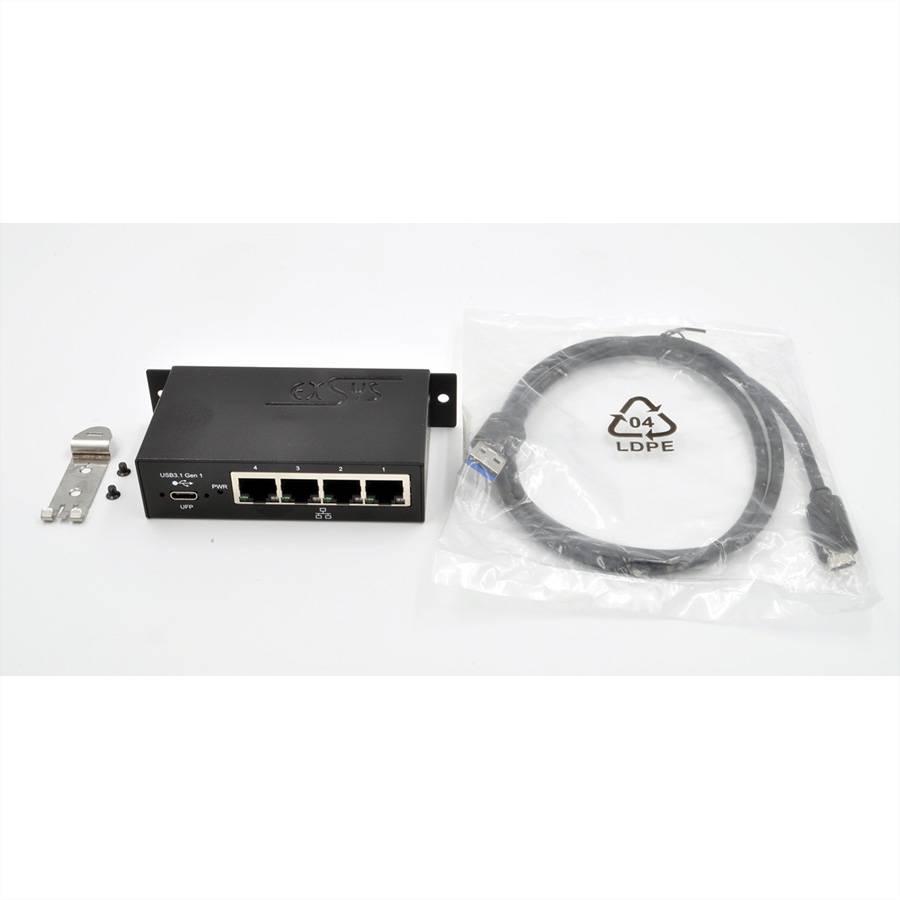

- EX-1330M, USB cable, adapter EX-47990, DIN rail kit driver CD, manual
