Exsys PC Adapter EXSYS EX-1333VIS USB 2.0 zu 2x Seriell R

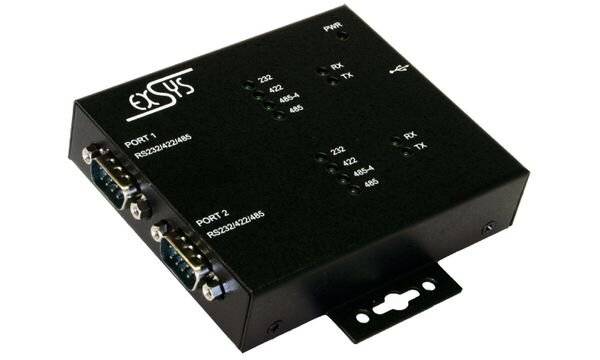

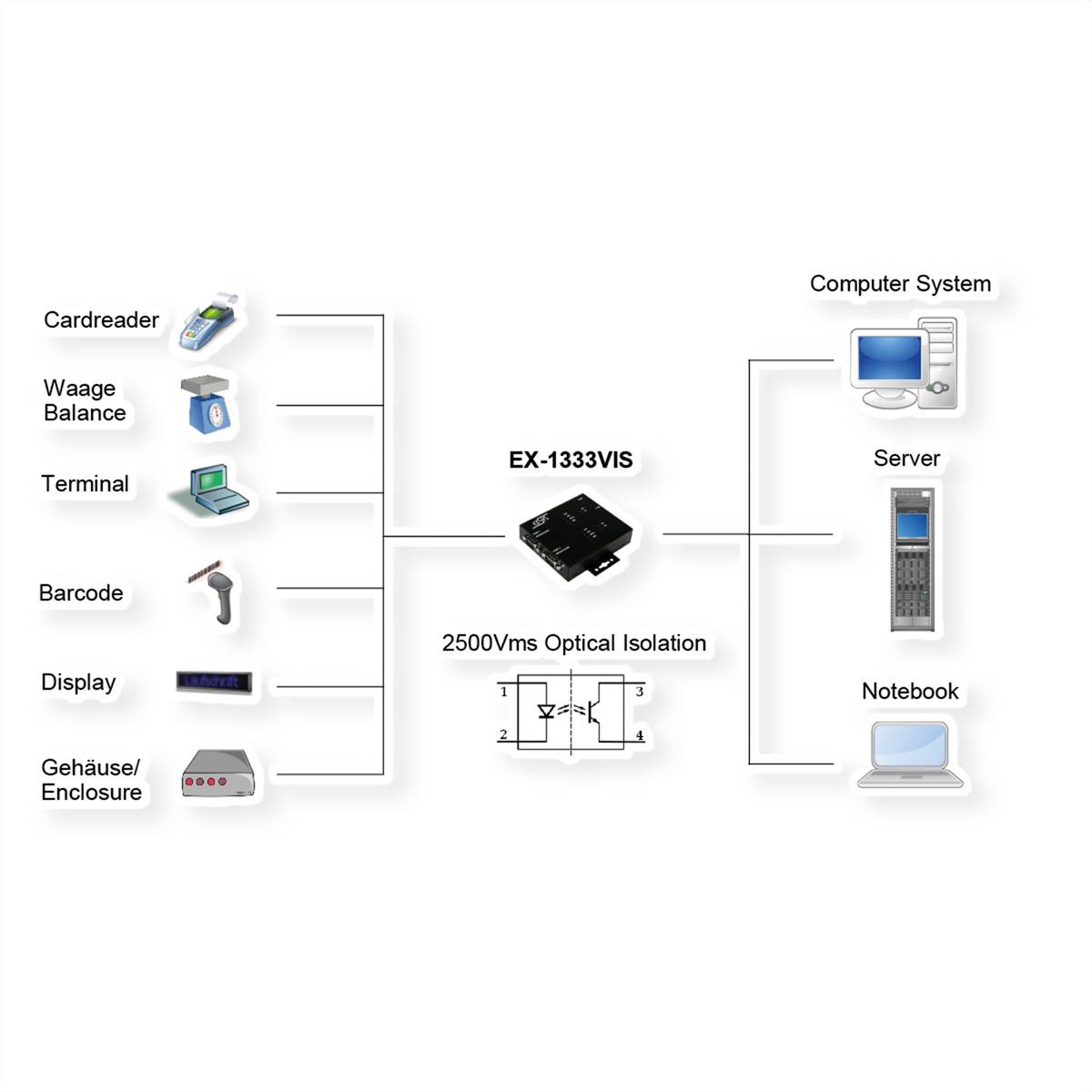

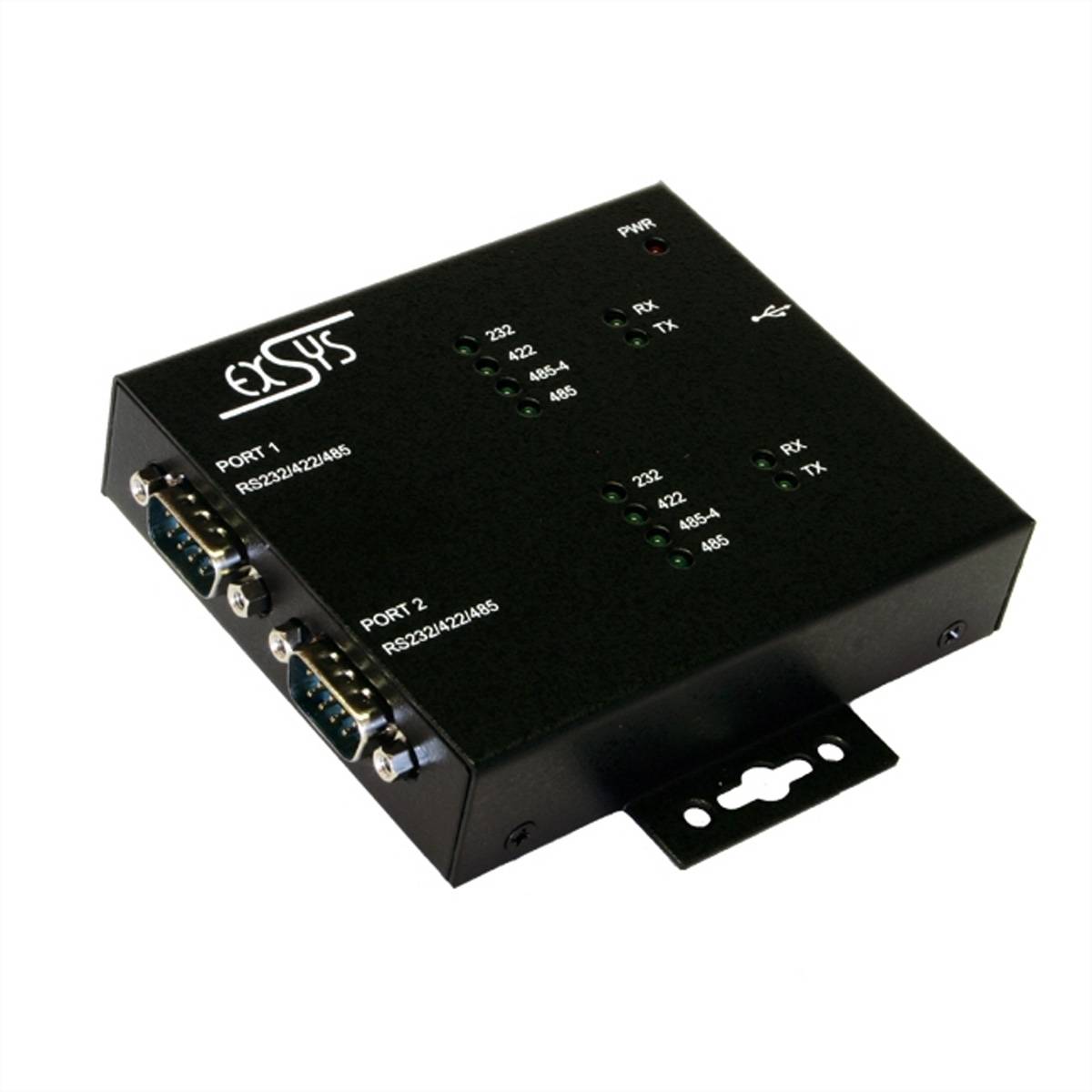

The EX-1333VIS USB 2.0 to serial RS-232/422/485 in a metal housing provides two serial RS-232, 422, or 485 high performance UART 16C550 combo-outputs with surge protection and optical insulation. It has been developed to expand two additional serial outputs in a robust metal housing for desktop computer or notebook via the USB 2.0 Bus. Due to the simple installation, the computer does not need to be opened and the article
EX-1333VIS can be installed while running. The supplied cable EX-K1552 A-connector to B-connector can be attached to the EX-1333VIS using knurled screws without using a screwdriver. As a result, the cable can no longer come loose by itself. Optionally, with the article EX-6099 (DIN-Rail-Kit) the EX-1333VIS can be installed on a carrier rail in a 19" rack. The EX-1333VIS has LED displays for operating functions and data transmissions.

- Interface: RS-232 V.24, RS-422 and RS-485
- 15KV ESD Surge Protection and 2500Vrms Optical Isolation
- FIFO buffer: 16C550 with 16 bytes
- I/O addresses and interrupt: Are assigned by the operating system
- Data bits: 7, 8 / Stop bits: 1, 1.5, 2 / Parity: None, even, odd, space, mark
- Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422 signals: 4-wire RS-422 (TXD+/-, RXD+/-) full duplex
- RS-485 signals: 2-wire RS-485 (Data+/-, Data +/-) half duplex
- Power supply from the USB bus (bus Power)
- LED for TX and RX Active Display

This text is machine translated.
