Exsys PC Cable EXSYS EX-1346IS USB 2.0 zu 1x Seriell RS 1.80 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
EX-1346IS USB 2.0 to 1S x serial interface RS-422/485 port, 15KV ESD surge protection and 4.0KV optical insulation, converter, cable, F...
- USB 2.0 to RS-422/485
- 16C550 FIFO buffer with 16 bytes
- Power supply from the USB bus
- LED display for RX and TX
- Over-voltage protection & optical insulation
Technical specifications
- Product group: Adapters, terminators, converters
- Product type: USB-serial converter
- Colour, black
- Length: 1.8 m
- Connections on page 1 (PC): 1 x USB 2.0 A-plug upstream
- Connections on side 2 (peripherals): 1 x 9 pin serial RS-422/485 plug
- Page 1 Type of connector: USB 2.0 Type A.
- Page 1 Type of connection: Male (plug)
- Page 2 Type of connection: D-Sub 9-pin (DE-9)
- Page 2 Type of connection: Male (plug)
- Colour (cable): Black
- Range of application: External
- Technical features: Chip set FTDI
- Weight: 150 g
- Packaging height 40 mm
- Package width 170 mm
- Packaging depth 250 mm
- Package weight: 0,201 kg
- Gross weight: 0.201
- Product type
PC Cable
- Connection type
USB 2.0
- Type A
USB
- Type B
USB
- Cable length
1.80 m
- Factory colour
Black
- Cable use
PC
- Version
Cable
- Range of use
USB adapters
- Connections
RJ45 connector
- Weight
0.201
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3796912 Exsys PC Cable EXSYS EX-1346IS USB 2.0 zu 1x Seriell RS 1.80 m
User & Safety Instructions
User & Safety Instructions 3796912 Exsys PC Cable EXSYS EX-1346IS USB 2.0 zu 1x Seriell RS 1.80 m
Description

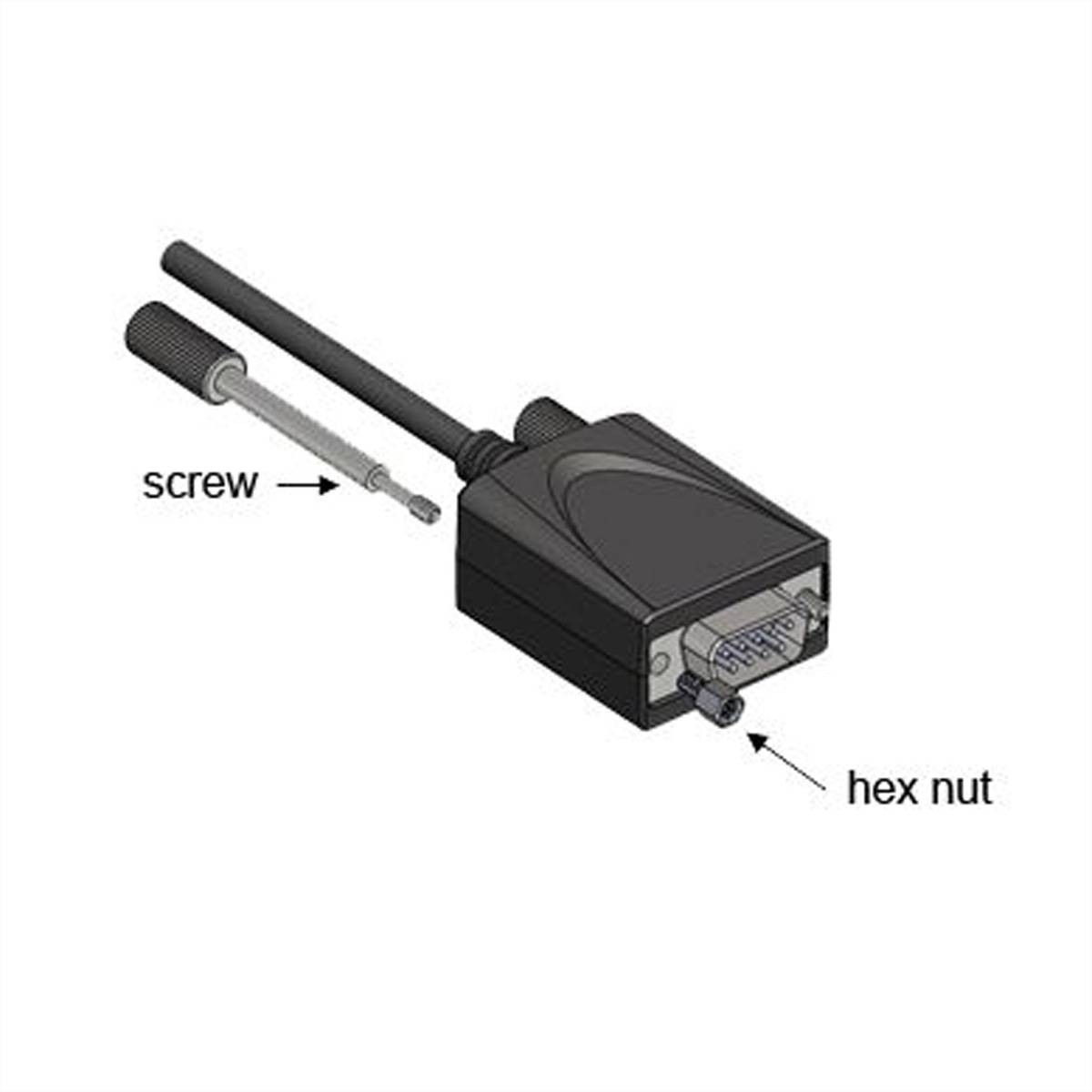

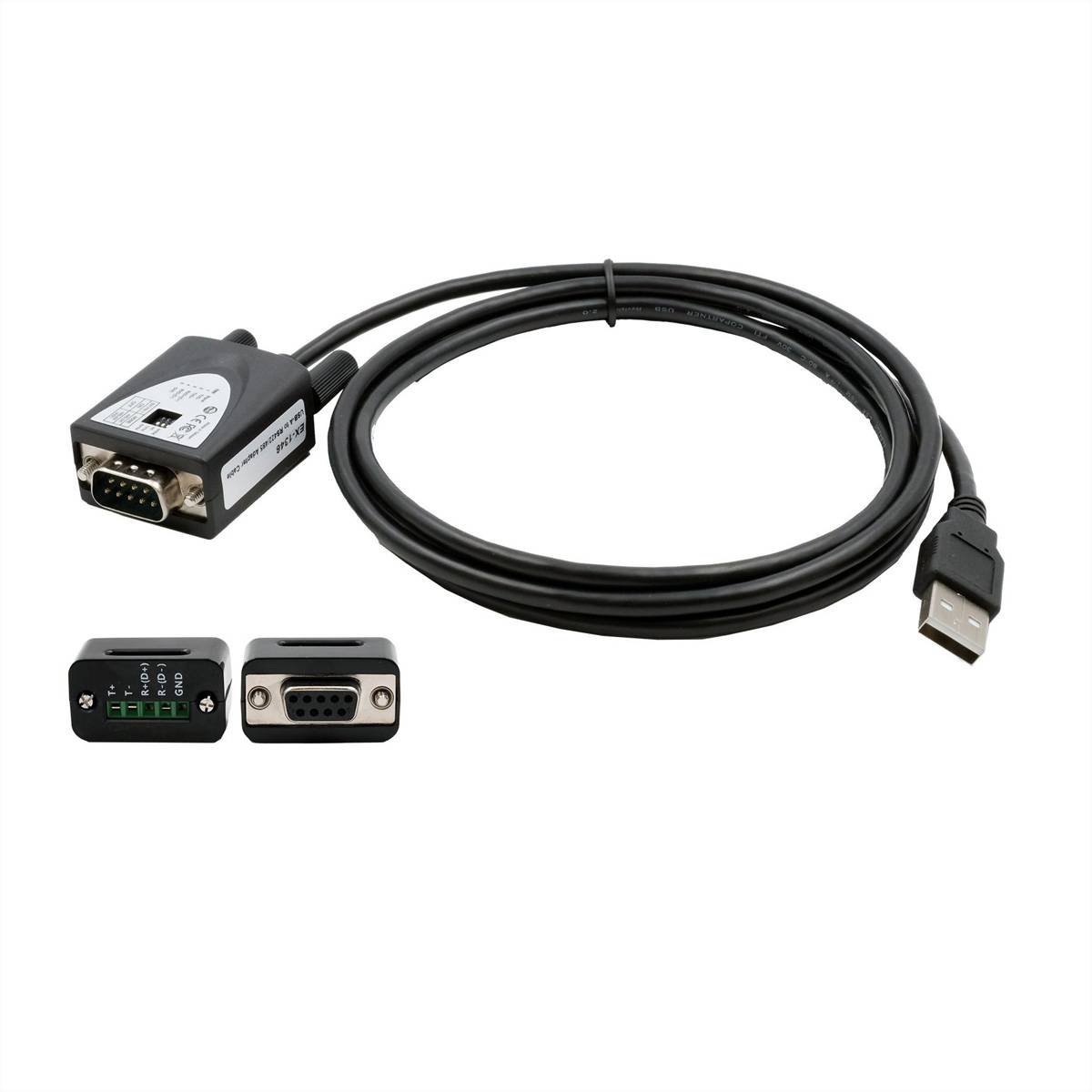

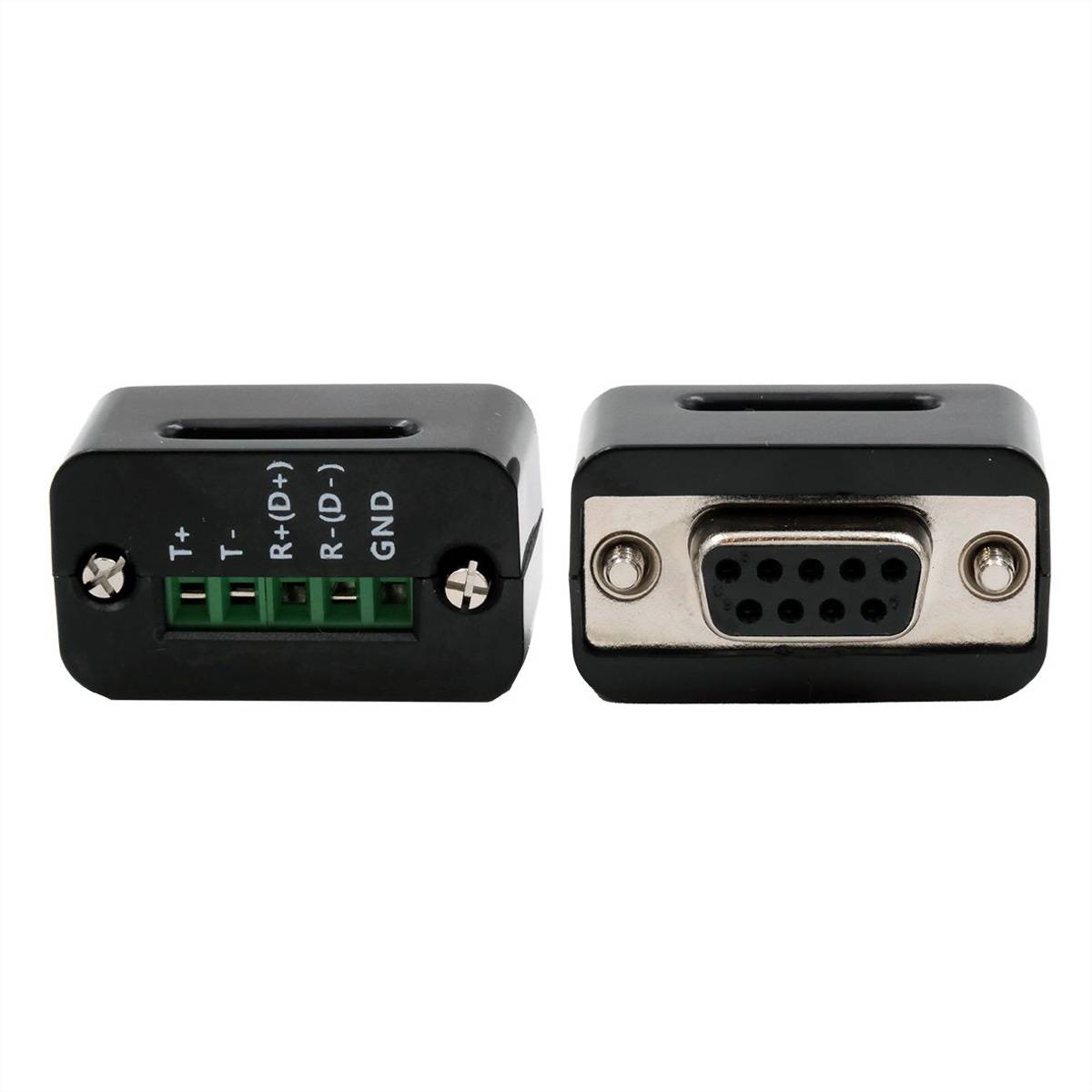

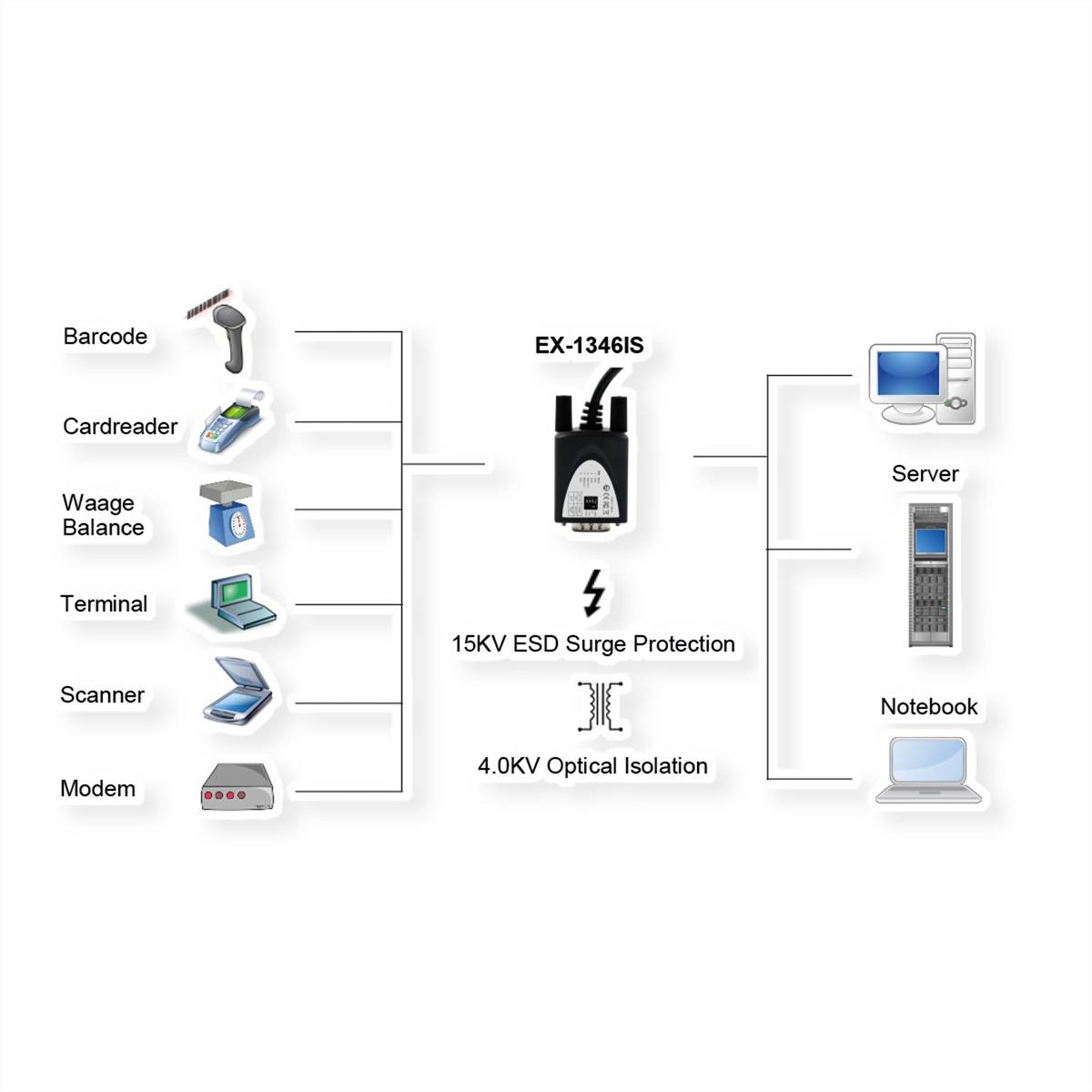

EX-1346IS USB 2.0 to 1S x serial interface RS-422/485 port, 15KV ESD surge protection and 4.0KV optical insulation, converter, cable, FDTI The USB 2.0 to RS-422/485 cable with A connector provides a serial RS-422/485 high performance UART 16C550 output with 15KV ESD surge protection and 4.0KV optical insulation. It has been developed to expand a second serial output for PC, small workstations or server via the USB 1.1 or 2.0 bus. Through the easy installation the computer does not need to be opened and the EX-1346IS can be installed with running operation. Two nuts are supplied, which can be easily replaced with the knurled screws if the cable to be connected has screws. Furthermore, a 9 pin adapter is supplied from socket to 5 pin terminal Block.
This text is machine translated.
Scope of delivery
- EX-1346IS, Driver CD, 2x hexagonal nuts, Adapter 9 pin socket to 5 pin TB, Manual
