Exsys Sonstiges USB-Gerät USB hub Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
EXSYS EX-11227HMVS Interface Hub USB 3.2 Gen 1 (3.1 Gen 1) Type B 5000 Mbit/s black
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Hub interfaces: USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Number of connections: 7
- 5000 Mbit/s
- Black Metal
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type B
- Data transfer rate 5000 Mbit/s.
- Product type
USB hub
- No. of outputs
7 x
- Interfaces (output)
USB type A
- Distributor/switch features
Steel casing
- Factory colour
Black
- Weight
547 g
- Width
158 mm
- Height
32.2 mm
- Depth
80.7 mm
- Cable length
1 m
- No. of USB type A 3.1 / 3.2 1st Gen
7 x
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Material (details)
Metal
- Used at
External
- Type
DC
- UKCA
yes
- Minimum operating temperature
0 °C
- Ports quantity
7
- Terminal block port
yes
- Quantity per pack
1 Stück(e)
- DC-in jack
yes
- Maximum operating temperature
55 °C
- Manual
yes
- Operating relative humidity (H-H)
5 - 95 %
- Storage temperature (T-T)
-20 - 85 °C
- Surge protection
yes
Documents & Downloads
Datasheet
Datasheet 3796936 Exsys Sonstiges USB-Gerät USB hub Black
User & Safety Instructions
User & Safety Instructions 3796936 Exsys Sonstiges USB-Gerät USB hub Black
Description

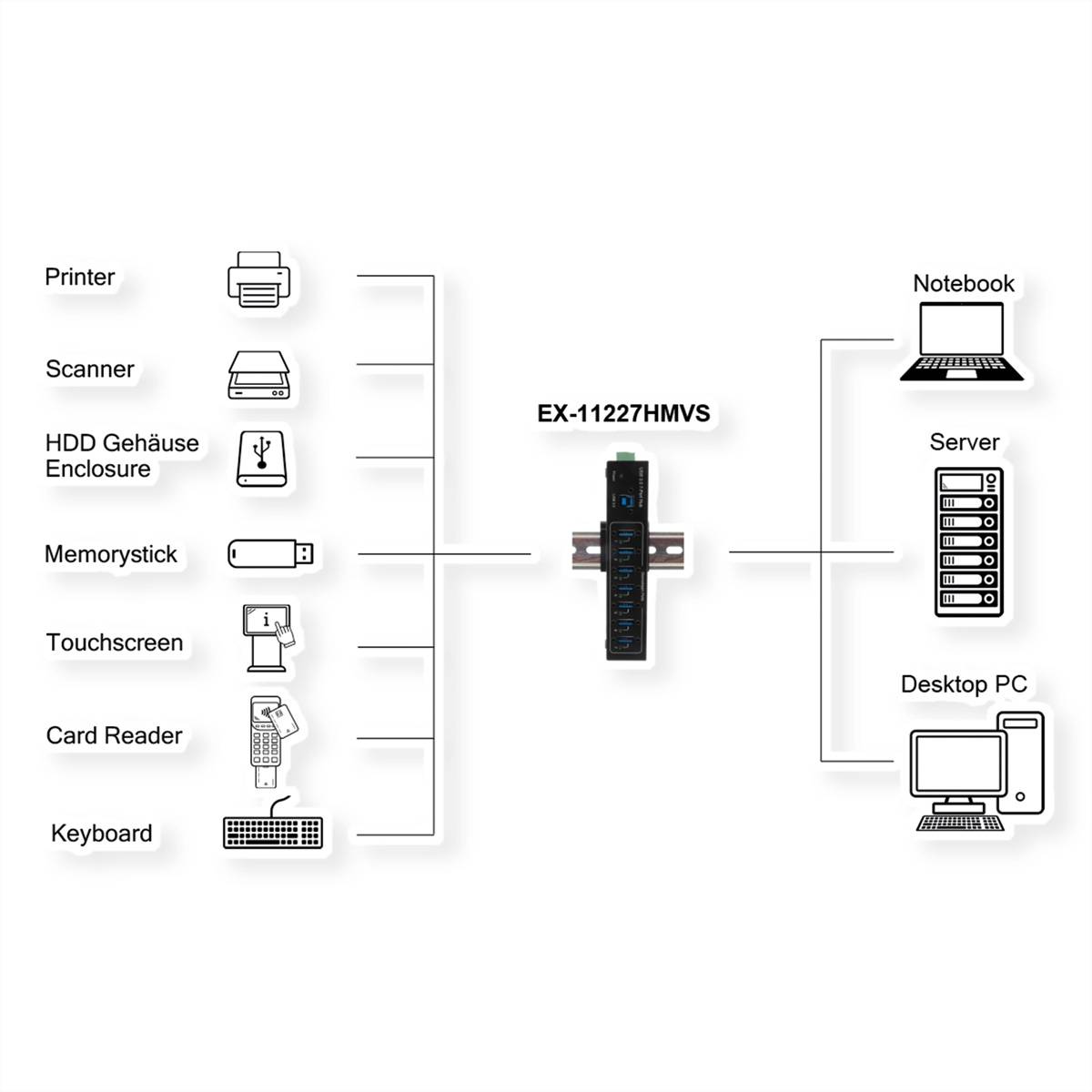

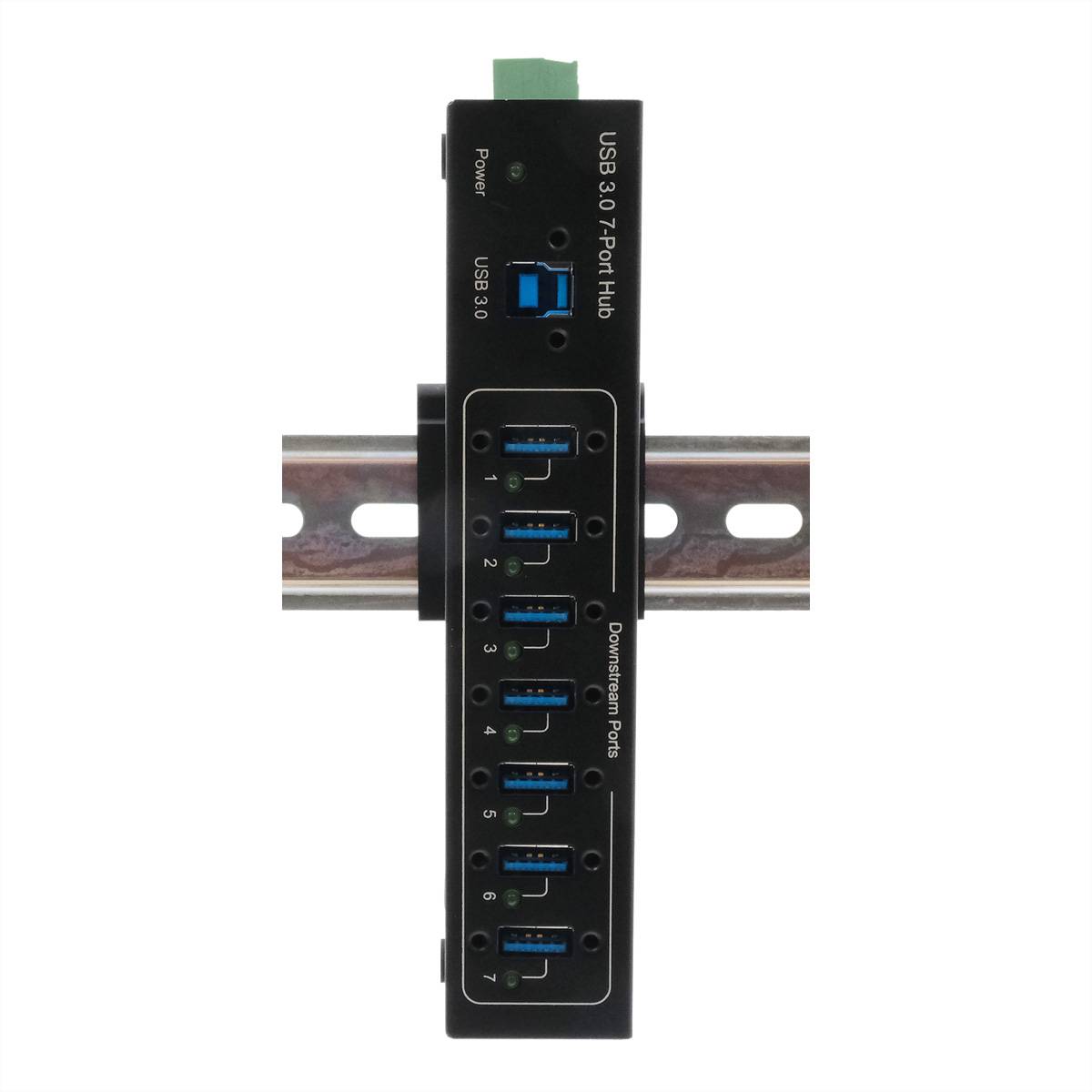

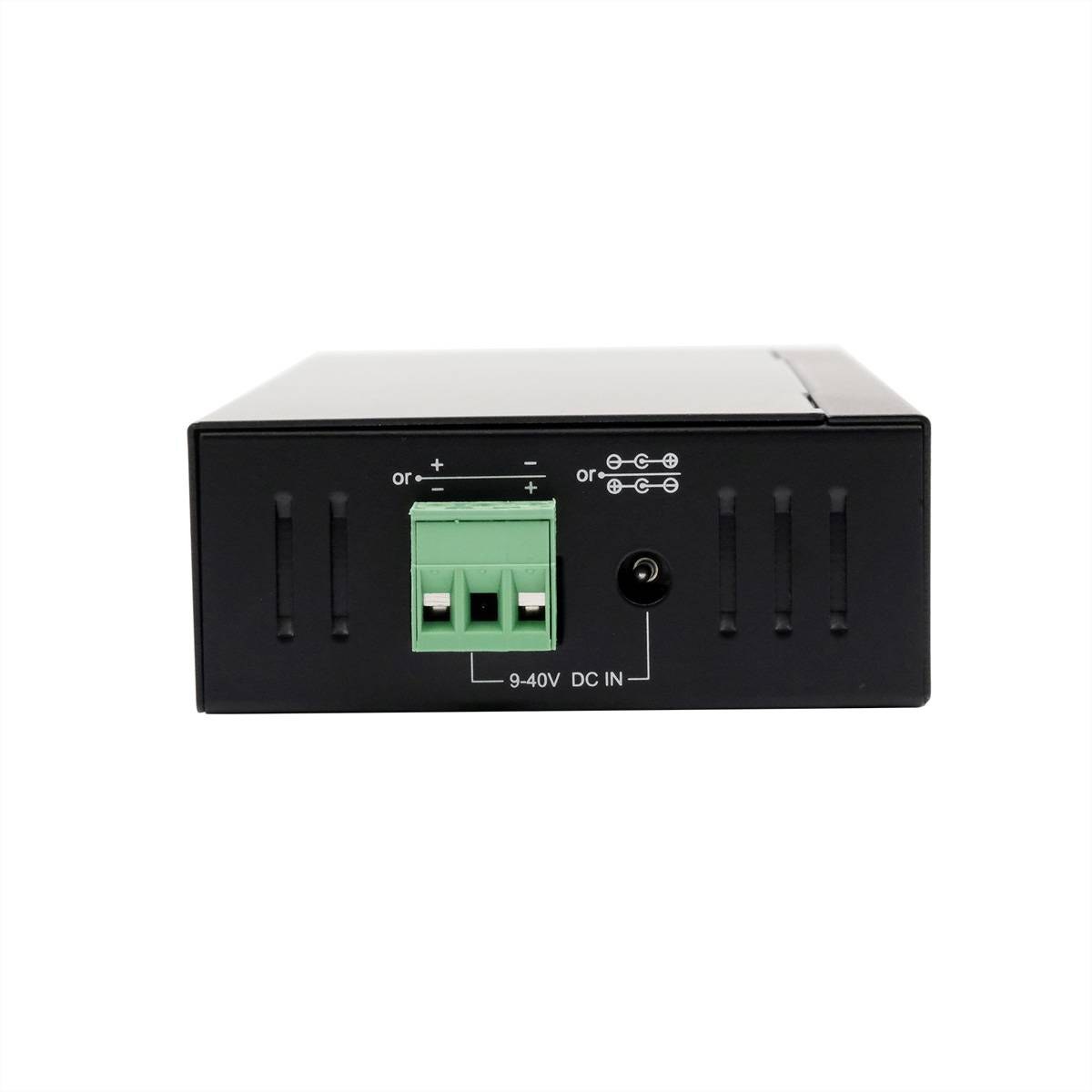

7-Ports USB 3.2 Gen 1 metal HUB with 15KV ESD surge protection for table, wall and DIN rail mounting The robust, industry-compatible EX-11227HMVS USB hub with seven screw-able USB 3.2 Gen 1 outputs is suitable for consumers and industrial applications. It can be installed on the wall or on a carrier rail and is connected to computer, notebook or server with the accompanying USB 3.2 Gen 1 cable. It ensures secure data transfer with excellent performance of up to 5 Gbit/s (SuperSpeed USB 5 Gbps) and is. Backward compatible with USB 1.1 . It can be powered with USB-bus-Power or via a two-wire terminal strip connection (+9V to 40V). . Optionally a power supply (EX-6988/6989) can be connected to the DC-jack
This text is machine translated.
Scope of delivery
- EX-11227HMVS, USB 3.2 Gen 1 Cable , DIN Rail Kit, Wall Mount Kit, Manual
