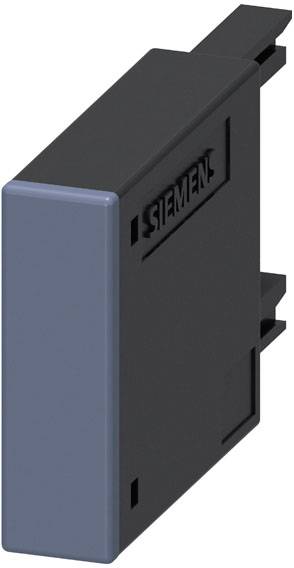

Extra-load module 3RT29161GA00 + surge protection 1 pc(s) Siemens 3RT2916-1GA00
Product type
Extra-load module
Content
1 pc(s)
Features
+ surge protection
Mounting type
Push-fit
Min. operating voltage
180 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Contactor size: S00
- All mounting positions permitted
- Control supply voltage frequency 50/60 Hz
- Product type
Extra-load module
- Content
1 pc(s)
- Features
+ surge protection
- Mounting type
Push-fit
- Min. operating voltage
180 V AC
- Max. operating voltage
255 V AC
- Operating voltage
180 - 255 V AC
- Compatible with
Siemens
- Compatible with series
Siemens S00 type
- Min. temperature
-25 °C
- Max. temperature
+60 °C

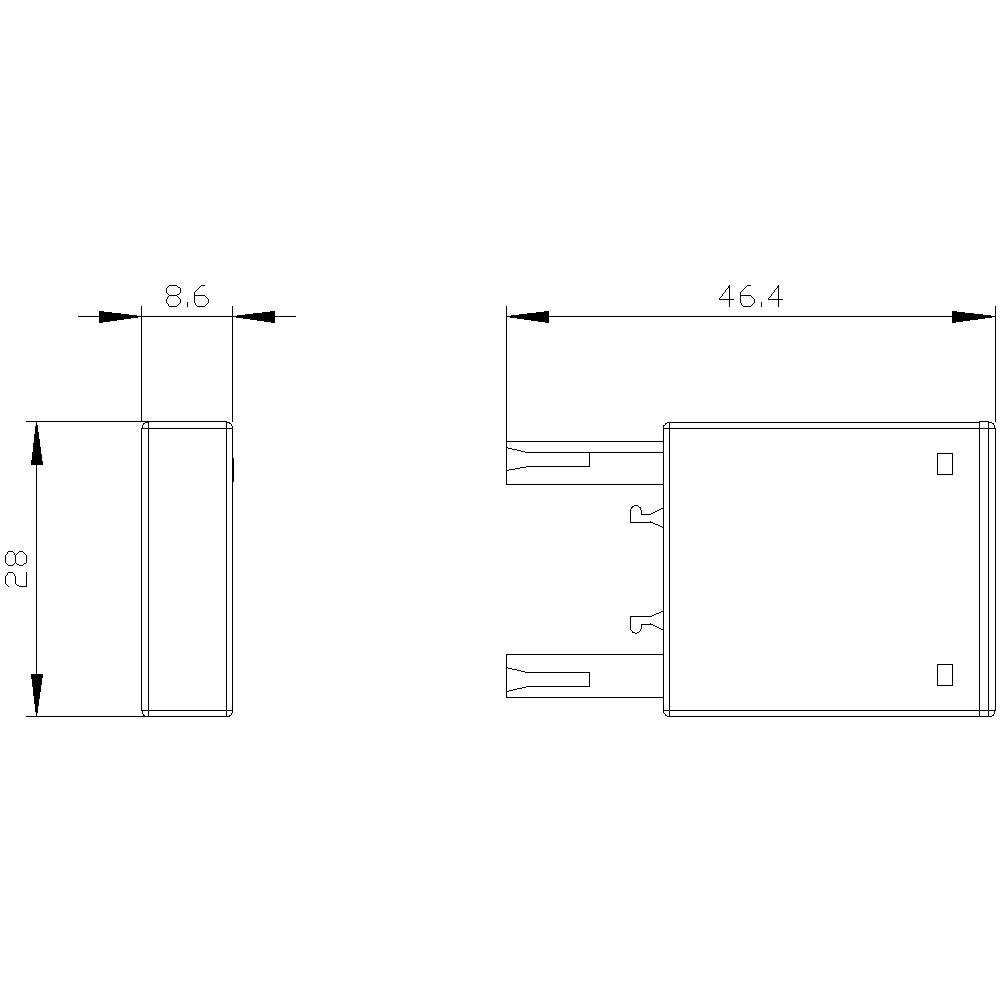

- Width
9 mm
- Height
46 mm
- Length
28 mm
- Dim
(L x W x H) 28 x 9 x 46 mm
- RoHS-compliant
Yes
- Type
3RT2916-1GA00
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2863694 Extra-load module 3RT29161GA00 + surge protection 1 pc(s) Siemens 3RT2916-1GA00
User & Safety Instructions
User & Safety Instructions 2863694 Extra-load module 3RT29161GA00 + surge protection 1 pc(s) Siemens 3RT2916-1GA00
Description
Auxiliary consumer component, AC 50 / 60 Hz, 180 ... 255 V, for auxiliary and motor contactors size S00 Simple, efficient, always up-to-date – the SIRIUS system kit.
