Fein AKFH 18-5 AS Fase mit 2x 8Ah ProCORE Edger 18 V
EAN:
Part number:
Item no:
Highlights & Details
AKFH 18-5 AS basic set with 2 x 8 Ah ProCore battery
- Dim. table
Technical specifications
- Battery voltage: 18 V
- Battery compatibility: Li-Ion / ProCORE Li-Ion
- Battery interface 18 V AMPShare
- Idling speed 2 400 - 7 500
- Weight without rechargeable battery: 2.52 kg
- Fibre length max. at 45°: 5 mm
- Chamfer height max. at 45° 3.5 mm
- Chamfer angle 45°
- Radius 1.2 / 2.5 mm
- Milling head equipment: 3x SX plate
- Support plate Ø 98 mm
- Product type
Edger
- Operating voltage
18 V
- Rotational speed range
2 400 - 7 500 U/min
- Weight
2.52 kg
- Voltage
18 V
Documents & Downloads
Information
Test Summary Report 3323886 Fein AKFH 18-5 AS Fase mit 2x 8Ah ProCORE Edger 18 V
Security datasheet
Security datasheet 3323886 Fein AKFH 18-5 AS Fase mit 2x 8Ah ProCORE Edger 18 V
Signal word
Attention
GHS / H Statements
- H 315: Causes skin irritation
- H 319: Causes serious eye irritation
- H 410: Highly toxic to aquatic life, with long-lasting effects
GHS / P Statements
- P 264: Rinse … thoroughly after use
- P 273: Avoid release into the environment
- P 280: Wear protective gloves/protective clothing/eye protection/face protection
- P 337+313: If eye irritation persists: seek medical advice
- P 391: Collect spillage
- P 501: Dispose of contents/container at …
Description
Battery edge milling cutter up to 5 mm with user set|AKFH 18-5 AS base set chamfer with 2x 8 Ah ProCore rechargeable battery|Powerful battery edge milling cutter meets optimal accessories for creating a 45° chamfer. For optimal preparation of subsequent coatings for flexible work in the workshop and at the construction site. Includes two ProCORE 8 Ah AS battery and a GAL 18V-160 AS charger.
This text is machine translated.
This text is machine translated.
Features

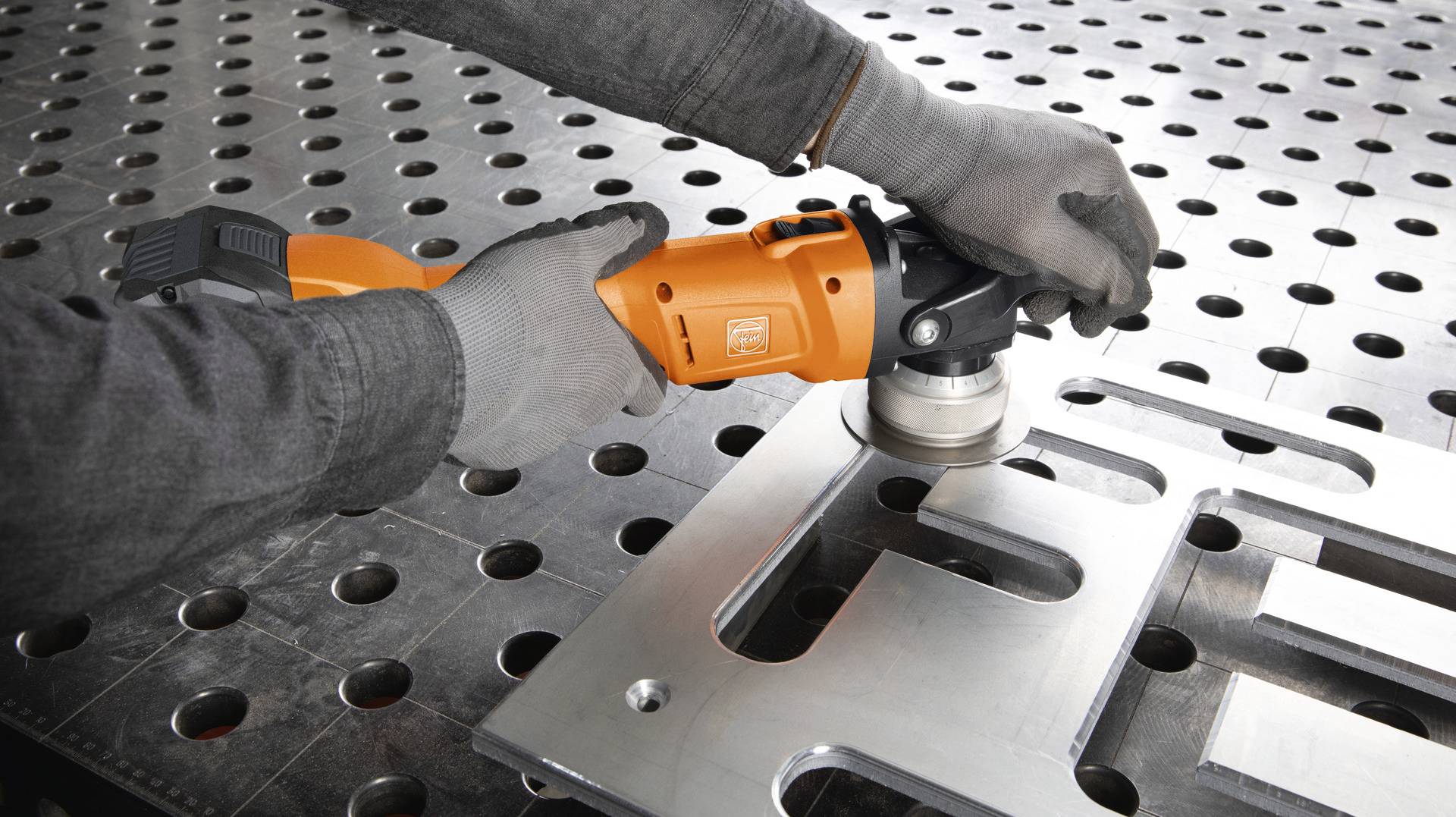

- Unpack the machine and get started: Set is designed for the production of chamfers on flat materials, sheets and containers, of inner and outer edges as well as contour curves.
- High removal rate with low application of force and continuous speed adjustment for different materials.
- Ergonomic thanks to light weight and compact design.
- Extensive user protection through soft start-up, restart protection, block monitoring and electronic overload protection.
- High power and long life by brushless FEIN PowerDrive motor.
- Extensive user protection through soft start-up, restart protection, block monitoring and electronic overload protection.
- Compatible with all 18 V AMPShare ProCORE-batteries and chargers for still more Power and flexibility. Suitable also for 18 V Bosch Professional battery-operated devices
- ProCORE Li-ion battery with high-power cells, charge state indicator and "Electronic Cell Protection" (ECP). ECP protects the battery against overloading, overheating and deep discharge.
- COOLPACK 2.0 technology provides for a 135% longer battery life and thus enables longer operating times.
- Best equipped for every use. Mobile working with the L-BOXX system.
- The latest cell technology and intelligent battery management ensure 87% more power than conventional batteries.
Scope of delivery
- 1 AKFH 18-5 AS including 45° milling head
- 3 clamp screws SX
- 1 Allen wrenches 4 mm
- 1 Torx screwdrivers TX 15
- 1 Cutting paste
- 1 10-pack insert SX chamfer for universal application (64302001010)
- 1 guide roller Ø 21.69 mm for 45° bevel and radius 2.5 mm (64303001010)
- 2 PROCORE 18 V 8.0 Ah battery pack
- 1 QUICK CHARGER GAL18 V-160 AS
- 1 plastic tool case (L-BOXX 238)
