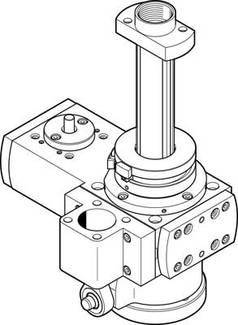

FESTO 1095934 EHMB-25-200 Rotary lift unit
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 4,555.00 / piece)
€ 4,555.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Drive pinion diameter 8 mm
- Working stroke: 0 ... 200 mm
- Size 25
- Rotation angle: Endless
- All mounting positions permitted
- Gear type: Toothed belt gear
- Gear ratio 4:1
- Design: Electromechanical rotary-hub-module
- With toothed belt
- Idle drive torque< 0.18 Nm
- Max. Output speed 300 rpm
- Max. Drive torque 2.2 Nm
- Max. Input speed 1200 rpm
- Max. Feed force Fx 480 N.
- Product weight: 3,620 g
- Ambient temperature: -10 ... 60 °C
- Output shaft material: Steel
- Material Drive shaft: High-alloy steel stainless
- Material cover: Aluminum wrought alloy
- anodized
- Material casing: Aluminum wrought alloy
- anodized
- Material toothed belt: Polychloroprene with glass fiber
- Material note: Substances containing labs contain
- Complies with RoHS
- Toothed belt division: 3 mm
- Product type
Rotary lift unit
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
1095934
- Weight
3620 g
- Operating temperature (max.)
60 °C
- Operating temperature (min.)
-10 °C
- Type
EHMB-25-200
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204557 FESTO 1095934 EHMB-25-200 Rotary lift unit
