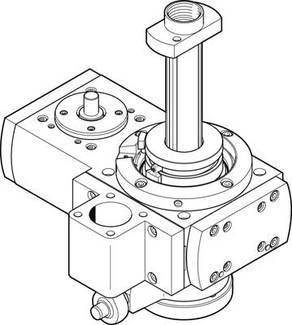

Image similar
FESTO 1098559 EHMB-32-200 Rotary lift unit
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 5,125.00 / piece)
€ 5,125.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Drive pinion diameter 12 mm
- Working stroke: 0 ... 200 mm
- Size: 32
- Rotation angle: Endless
- All mounting positions permitted
- Gear type: Toothed belt gear
- Gear ratio 3:1
- Design: Electromechanical rotary-hub-module
- With toothed belt
- Idle drive torque<: 0.5 Nm
- Max. Output speed 300 rpm
- Max. Drive torque: 6.7 Nm
- Max. Input speed 900 rpm
- Max. Feed force Fx 750 N
- Product weight: 6,388 g
- Ambient temperature: -10 ... 60 °C
- Output shaft material: Steel
- Material Drive shaft: High-alloy steel stainless
- Material cover: Aluminum wrought alloy
- anodized
- Material casing: Aluminum wrought alloy
- anodized
- Material toothed belt: Polychloroprene with glass fiber
- Material note: Substances containing labs contain
- Complies with RoHS
- Toothed belt division: 5 mm
- Product type
Rotary lift unit
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
1098559
- Weight
6388 g
- Operating temperature (max.)
60 °C
- Operating temperature (min.)
-10 °C
- Type
EHMB-32-200
- UKCA
not relevant
