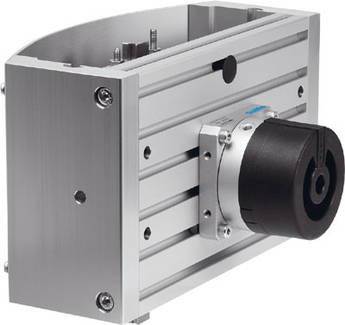

FESTO 533602 HSP-12-AP-SD-WL Handling module 8 bar
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 3,509.00 / piece)
€ 3,509.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Size: 12
- Front unit mounting: With through-hole
- Mounting type: With through hole
- With nuts
- Operating pressure: 4 ... 8 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:-:-]
- Damping: Cc: Shock absorbers on both sides
- Soft characteristic curve
- Mounting position: Guide rail
- vertical
- Operation: Double-acting
- Note on operating and control medium: Oiled operation possible (required in further operation)
- Constructive structure: Cross guide
- Swivel module
- Waiting position optional left
- Forced motion sequence
- Max. Torque Mx dynamic: 1.1 Nm
- Max. Torque Mx static: 5 Nm
- Max. Torque My dynamic: 1.1 Nm
- Max. Moment My static: 5 Nm
- Max. Torque Mz dynamic: 1.1 Nm
- Max. Torque Mz static: 5 Nm
- Max. Z-stroke waiting position: 15 mm
- Maximum payload: 0.5 kg
- Min Cycle time: 0.6 s.
- Pneumatic connection: M5
- Pneumatic connection waiting position: M3
- Position detection: For proximity switches
- Product weight: 2,600 g
- Theoretical force at 6 bar: 40 N.
- Ambient temperature: 0 ... 60 °C
- Twist lock/guide: Cross guide
- Base plate material: Aluminum wrought alloy
- Material cross guide: Quenched steel
- Material side panels: Aluminum wrought alloy
- Repeat accuracy ±0.01 mm
- Y-hub: 52 ... 68 mm
- Z-hub: 20 ... 30 mm
- Z-stroke working stroke: 15 mm
- Product type
Handling module
- Centrifugal force at 6 bar
40 N
- Operating temperature
0 °C (min)
- Max. operating pressure
8 bar
- Min. operating temperature
0 °C
- Manufacturer part #
533602
- Weight
2600 g
- Max. operating pressure
8 bar
- Min. operating pressure
4 bar
- Operating temperature (max.)
60 °C
- Operating temperature (min.)
0 °C
- Type
HSP-12-AP-SD-WL
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204277 FESTO 533602 HSP-12-AP-SD-WL Handling module 8 bar
