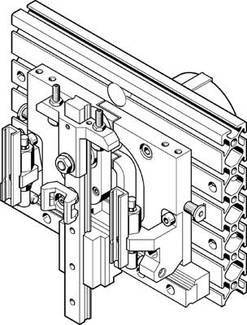

FESTO 533619 HSP-25-AP-WR Handling module 8 bar
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 5,275.00 / piece)
€ 5,275.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Size 25
- Front unit mounting: With through-hole
- Mounting type: With through hole
- With nuts
- Operating pressure: 4 ... 8 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:-:-]
- Damping: Cc: Shock absorbers on both sides
- Soft characteristic curve
- Mounting position: Guide rail
- vertical
- Operation: Double-acting
- Note on operating and control medium: Oiled operation possible (required in further operation)
- Constructive structure: Cross guide
- Swivel module
- Waiting position optional left
- Forced motion sequence
- Max. Torque Mx dynamic: 3.2 Nm
- Max. Torque Mx static: 15 Nm
- Max. Torque My dynamic: 3.2 Nm
- Max. Moment My static: 15 Nm
- Max. Torque Mz dynamic: 3.2 Nm
- Max. Torque Mz static: 15 Nm
- Max. Z-stroke waiting position: 25 mm
- Maximum payload: 1.5 kg
- Min Cycle time: 1 s.
- Pneumatic connection: M5
- Pneumatic connection waiting position: M5
- Position detection: For proximity switches
- Product weight: 6,400 g
- Theoretical force at 6 bar: 65 N.
- Ambient temperature: 0 ... 60 °C
- Twist lock/guide: Cross guide
- Base plate material: Aluminum wrought alloy
- Material cross guide: Quenched steel
- Material side panels: Aluminum wrought alloy
- Repeat accuracy ±0.02 mm
- Y-hub: 130 ... 170 mm
- Z-hub: 50 ... 70mm
- Z-stroke working stroke 25 mm
- Product type
Handling module
- Centrifugal force at 6 bar
65 N
- Operating temperature
0 °C (min)
- Max. operating pressure
8 bar
- Min. operating temperature
0 °C
- Manufacturer part #
533619
- Weight
6400 g
- Max. operating pressure
8 bar
- Min. operating pressure
4 bar
- Operating temperature (max.)
60 °C
- Operating temperature (min.)
0 °C
- Type
HSP-25-AP-WR
- UKCA
not relevant
