Stroke drawing/circuit diagram

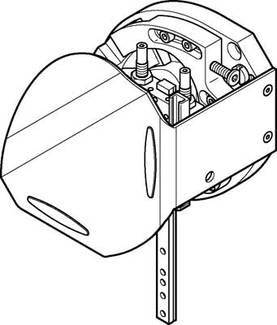

FESTO 540227 HSW-10-AS-SD Handling module
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 2,605.00 / piece)
€ 2,605.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Working stroke: 9 ... 15 mm
- Size 10
- Mounting type: With through hole and centering sleeve
- Damping: Noise damping over buffer
- All mounting positions permitted
- Constructive design: Drive shaft
- Linear guide plus rotary bearing
- Forced motion sequence
- Max. Drive torque at drive shaft: 0.85 Nm
- Max. Axial force on drive shaft: 10 N.
- Max. Linear stroke at 90° Swivel angle: 90/90 mm
- Max. Torque Mx 0.6 Nm
- Max. Torque My: 0.6 Nm
- Max. Torque Mz: 0.6 Nm
- Max. Process force in Y direction: 30 N.
- Max. Radial force at drive shaft: 30 N.
- Maximum payload: 0.5 kg
- Position detection: For proximity switches
- Product weight: 1,300 g
- Ambient temperature: 0 ... 60 °C
- Material stops: High-alloy steel
- Material cover: Aluminum wrought alloy
- anodized
- Spring-loaded material: High-alloy steel
- Base plate material: Aluminum wrought alloy
- anodized
- Material holder: Aluminum wrought alloy
- anodized
- Material cross guide: Quenched steel
- Material behind the scenes: Application steel
- hardened
- Swivel lever material: Steel insert
- browned
- Material sensor rail: Aluminum wrought alloy
- anodized
- Material bridge: Aluminum wrought alloy
- anodized
- Material adjusting screw: High-alloy steel
- Material information: Free of copper and PTFE
- Repeat accuracy End positions: +/-0.02 mm
- Z-hub: 80 ... 100 mm
- Product type
Handling module
- Operating temperature
0 °C (min)
- Min. operating temperature
0 °C
- Manufacturer part #
540227
- Weight
1300 g
- Operating temperature (max.)
60 °C
- Operating temperature (min.)
0 °C
- Type
HSW-10-AS-SD
- UKCA
not relevant
