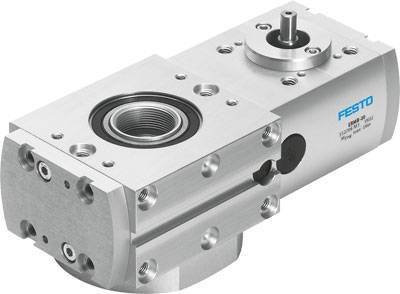

A pneumatic swivel actuator by Festo, Model DSM-HD, for industrial applications. Contains multiple mounting points.

Image similar

A pneumatic swivel actuator by Festo, Model DSM-HD, for industrial applications. Contains multiple mounting points.

Image similar

FESTO

Dispatches on Thu, 17 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,335.29 / piece)

€ 1,335.29

plus VAT.

Report legal concerns

Highlights & Details

Technical specifications

Drive pinion diameter 6 mm
Size: 20
Rotation angle: Endless
All mounting positions permitted
Transmission ratio 4.5:1
Design: Electromechanical turning module
With toothed belt
Idle drive torque<: 0.07 Nm
Max. Output speed 300 rpm
Max. Drive torque: 0.7 Nm
Max. Input speed 1,350 rpm
Product weight: 50 g
Ambient temperature: -10 ... 60 °C
Output shaft material: Aluminum wrought alloy
anodized
Material Drive shaft: High-alloy steel stainless
Material cover: Aluminum wrought alloy
anodized
Material casing: Aluminum wrought alloy
anodized
Material toothed belt: Polychloroprene with glass fiber
Material note: Substances containing labs contain
Complies with RoHS
Toothed belt division: 2 mm

Manufacturer part #: 552706

Weight: 850 g

Type: ERMB-20

Product type: Rotary module

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2204461 FESTO 552706 ERMB-20 Rotary module
