Name: FESTO 557914 DW-80-50-Y-AB Joint cylinder Stroke length: 50 mm 1 pc(s)
Brand: FESTO
SKU: 1938418

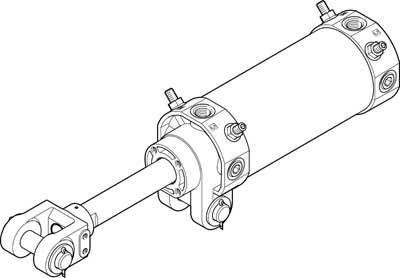

Technical drawing of a hydraulic cylinder with piston rod, threaded connections, and ports.

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Joint cylinder DW-80-50-Y-AB

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Joint cylinder

Stroke length: 50 mm

Min. operating pressure: 1 bar

Max. operating pressure: 10 bar

Material (details): Cover: die-cast aluminum

Manufacturer part #: 557914

Type: Mounting type: with swivel mounting on the bearing cover, with accessories

Weight: 4185 g

Size: 80

Sealant: NBR

Pneumatics connector: R3/8

Piston diameter: 80 mm

Piston rod material: Quenched steel

Piston rod thread: M20 x 1.5

Force (max.): 3016 N

Max. ambient temperature: 60 °C

Min. ambient temperature: -10 °C

Operating principle: Double-acting

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Manufacturer part #

Stroke length

FESTO 557914 DW-80-50-Y-AB Joint cylinder Stroke length: 50 mm 1 pc(s)

Item no:1938418

Unavailable

Conrad Electronic

This article

557914

50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

FESTO 557904 DW-80-50-Y Joint cylinder Enclosure material: Aluminium wrought alloy Stroke length: 50 mm 1 pc(s)

Item no:1946251

Available soon

Conrad Electronic

557904

50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 295.00^*

FESTO 557906 DW-80-100-Y Joint cylinder Stroke length: 100 mm 1 pc(s)

Item no:1938411

Available soon

Conrad Electronic

557906

100 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 299.00^*

FESTO 557907 DW-80-125-Y Joint cylinder Enclosure material: Aluminium Stroke length: 125 mm 1 pc(s)

Item no:1938412

Available soon

Conrad Electronic

557907

125 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 305.00^*

FESTO 557908 DW-80-150-Y Joint cylinder Stroke length: 150 mm 1 pc(s)

Item no:1938413

Available soon

Conrad Electronic

557908

150 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 309.00^*

FESTO 557909 DW-80-50-Y-A Joint cylinder Enclosure material: Aluminium (die-cast) Stroke length: 50 mm 1 pc(s)

Item no:1938414

Available soon

Conrad Electronic

557909

50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 315.00^*

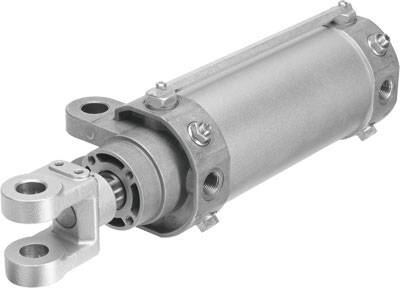

FESTO 557910 DW-80-75-Y-A Joint cylinder Stroke length: 75 mm 1 pc(s)

Item no:1946390

Available soon

Conrad Electronic

557910

75 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 319.00^*

FESTO 557911 DW-80-100-Y-A Joint cylinder Stroke length: 100 mm 1 pc(s)

Item no:1938415

Available soon

Conrad Electronic

557911

100 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 325.00^*

FESTO 557912 DW-80-125-Y-A Joint cylinder Stroke length: 125 mm 1 pc(s)

Item no:1938416

Available soon

Conrad Electronic

557912

125 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

FESTO 557913 DW-80-150-Y-A Joint cylinder Enclosure material: Aluminium Stroke length: 150 mm 1 pc(s)

Item no:1938417

Available soon

Conrad Electronic

557913

150 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Documents & Downloads

Datasheet

Datasheet 1938418 FESTO 557914 DW-80-50-Y-AB Joint cylinder Stroke length: 50 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1938418 FESTO 557914 DW-80-50-Y-AB Joint cylinder Stroke length: 50 mm 1 pc(s)
