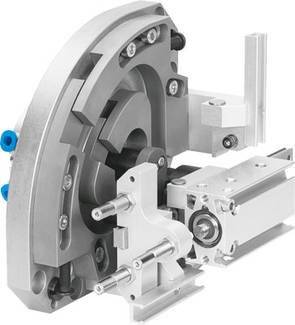

FESTO 562560 HSW-12-AP-AW Handling module 8 bar
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 3,739.00 / piece)
€ 3,739.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Working stroke: 15 ... 25 mm
- Size: 12
- Mounting type: With through hole and centering sleeve
- Operating pressure: 4 ... 8 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:-:-]
- Damping: Cc: Shock absorbers on both sides
- Soft characteristic curve
- All mounting positions permitted
- Note on operating and control medium: Oiled operation possible (required in further operation)
- Design: Linear guide plus rotary bearing
- Swivel drive
- Forced motion sequence
- Max. Linear stroke at 90° Swivel angle: 142/142 mm
- Max. Torque Mx 1.5 Nm
- Max. Torque My: 1.5 Nm
- Max. Torque Mz: 1.5 Nm
- Max. Process force in Y direction: 35 N.
- Max. Z-stroke waiting position: 15 mm
- Maximum payload: 1 kg
- Min Cycle time: 0.8 s.
- Pneumatic connection: M5
- Pneumatic connection waiting position: M5
- Position detection: For proximity switches
- Product weight: 3,060 g
- Theoretical force at 6 bar: 35 N.
- Ambient temperature: 0 ... 60 °C
- Material stops: High-alloy steel
- Spring-loaded material: High-alloy steel
- Base plate material: Aluminum wrought alloy
- anodized
- Material holder: Aluminum wrought alloy
- anodized
- Material cross guide: Quenched steel
- Material behind the scenes: Application steel
- hardened
- Swivel lever material: Steel insert
- browned
- Material sensor rail: Aluminum wrought alloy
- anodized
- Material bridge: Aluminum wrought alloy
- anodized
- Material adjusting screw: High-alloy steel
- Repeat accuracy End positions: +/-0.02 mm
- Z-hub: 80 ... 100 mm
- Product type
Handling module
- Centrifugal force at 6 bar
35 N
- Operating temperature
0 °C (min)
- Max. operating pressure
8 bar
- Min. operating temperature
0 °C
- Manufacturer part #
562560
- Weight
3060 g
- Max. operating pressure
8 bar
- Min. operating pressure
4 bar
- Operating temperature (max.)
60 °C
- Operating temperature (min.)
0 °C
- Type
HSW-12-AP-AW
- UKCA
not relevant
