FESTO 563909 HGRT-25-A-G2 Radial gripper Enclosure material: Aluminium 1 pc(s)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 889.00 / piece)
€ 889.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

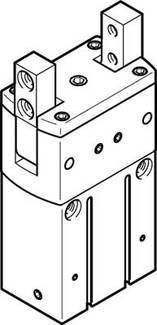

Radial gripper HGRT-25-A-G2
Technical specifications
- No. of jaws: 2
- Size 25
- Mounting type: Internal thread and centering sleeve
- Operating pressure: 4 ... 8 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
- All mounting positions permitted
- Operation: Double-acting
- Gripper function: Radial
- Note on operating and control medium: Oiled operation possible (required in further operation)
- Constructive design: Forced motion sequence
- Corrosion resistance class KBK: 2 - moderate corrosion stress
- Mass moment of inertia: 2.33 kgcm2
- Max. Working frequency gripper:< = 3 Hz
- Max. Replacement accuracy< = 0.2 mm
- Max. Jaw angle play ax,ay:< = 0.1 deg
- Max. Force at gripping jaws Fz static: 180 N.
- Max. Moment on gripping jaws My static: 10 Nm
- Max. Moment on gripping jaws Mz static: 1 Nm
- Max. Opening angle 180 degrees
- Min Opening time at 6 bar: 443 ms
- Min Closing time at 6 bar: 301 ms
- Relubrication interval guide elements: 10 million SP
- Pneumatic connection: M5
- Position detection: For proximity switches
- For inductive sensors
- Product weight: 24 g
- Rotation symmetry<: = 0.2 mm
- Ambient temperature: 5 ... 60 °C
- Material casing: Aluminum
- glideroxated
- Material gripping jaws: Steel
- hardened
- Material information: Free of copper and PTFE
- Complies with RoHS
- Repeat accuracy of gripper:< = 0.02 mm
- Operating medium
Compressed Air
- Product type
Radial gripper
- Enclosure material
Aluminium
- Connection
M5
- Max. operating pressure
8 bar
- Operating temperature
5 °C (min)
- Min. operating temperature
5 °C
- Manufacturer part #
563909
- Operating pressure (min.)
4 bar
- Accuracy (+/-)
0.02 mm
- Weight
610 g
- Medium
ISO 8573-1:2010 [1:4:1] compliance
- Max. ambient temperature
+60 °C
- Min. ambient temperature
+5 °C
- Operating principle
Double-acting
- UKCA
not relevant
