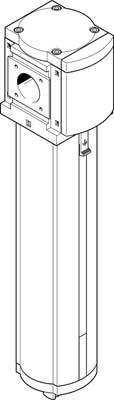

Image similar
FESTO Activated charcoal air intake filter MS9-LFX-G-U 564038 Battery unit Enclosure material Aluminium (die-cast) Seala
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 485.00 / piece)
€ 485.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Size: 9
- Mounting type: either: cable installation, with accessories
- Material Filter: active charcoal
- Material: aluminum wrought alloy shell
- Operating medium
Compressed air according to ISO 8573-1:2010[1:4:2]
- Type
564038
- Product type
Activated charcoal air intake filter
- Enclosure material
Aluminium (die-cast)
- Connection
Battery unit
- Max. flow
6500 l/min
- Max. operating pressure
20 bar
- Type
Corrosion resistance class: 2-moderate corrosion stress
- Manufacturer part #
564038
- Size
9
- Operating pressure (min.)
0 bar
- Sealant
NBR
- Weight
2000 g
- Material
Aluminium (die-cast)
- Material (filter)
Activated charcoal
- Media temperature (range)
+5 up to +30 °C
- Max. media temperature
+30 °C
- Media temperature (min.)
+5 °C
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2121154 FESTO Activated charcoal air intake filter MS9-LFX-G-U 564038 Battery unit Enclosure material Aluminium (die-cast) Seala
User & Safety Instructions
User & Safety Instructions 2121154 FESTO Activated charcoal air intake filter MS9-LFX-G-U 564038 Battery unit Enclosure material Aluminium (die-cast) Seala
Description
Active carbon filter MS9-lfx-G-U metal bowl, flow direction from left to right. Size=9, series = MS, mounting position = vertically +/-5°, constructive design = active carbon filter, Operating pressure = 0 - 20 bar
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
