FESTO Connector 8059258 NPHS-S6-M-G14 External thread: G1/4" Pipe diameter: 7.85 mm Thread size: 1/4" 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
20 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 5.49 / piece)
€ 5.49
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

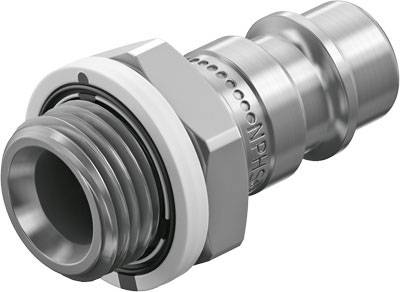

Connector NPHS-S6-M-G14
Technical specifications
- Weight: 20g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Connector
- Pipe Ø
7.85 mm
- Thread size
1/4"
- External thread
G1/4"
- Manufacturer part #
8059258
- Type
Coupling plug NPHS-S6-M-G14 nominal width = 7.85 mm, note for the operating and control medium = oiled operation possible, corrosion resistance class KBK = 1 - Low corrosion stress
- Vacuum
-0.95 bar
- Max. operating pressure
10 bar
- Min. operating pressure
-0.95 bar
- Operating medium
Druckluft nach ISO 8573-1:2010 [7:-:-]
- Features
P port connector (G1/4)
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 1940135 FESTO Connector 8059258 NPHS-S6-M-G14 External thread: G1/4" Pipe diameter: 7.85 mm Thread size: 1/4" 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1940135 FESTO Connector 8059258 NPHS-S6-M-G14 External thread: G1/4" Pipe diameter: 7.85 mm Thread size: 1/4" 1 pc(s)
