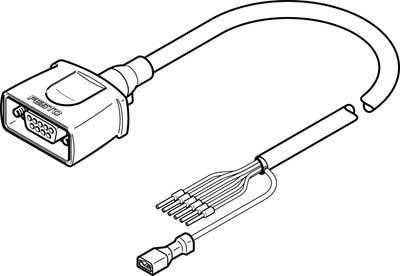

FESTO NEBM-S1G9-E-25-Q5-LE6 5085057 Motor cable 1 pc(s)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 379.00 / piece)
€ 379.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- cable diameter 6.2 mm
- Corrosion resistance class KBK: 0 - no corrosion stress
- Material cable sheath: TPE-U (PUR)
- Color Cable sheath: Gray
- Electrical connection 1: box, straight, D-sub, 9-pin
- Electrical connection 2: cable, open end, 6-pin
- Ambient temperature: -40 °C to +80 °C
- Product type
Motor cable
- Type
NEBM-S1G9-E-25-Q5-LE6
- Connection
Box
- Manufacturer part #
5085057
- Factory colour
Grey
- Cable length
25.00 m
- Width
6.2 mm
IP65
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2124443 FESTO NEBM-S1G9-E-25-Q5-LE6 5085057 Motor cable 1 pc(s)
Description
Motor cable NEBM-S1 G9-E-25-Q 5-LE 6 line name = without shield support, electrical connection 1, Function = field device side, electrical connection 1, design = square, electrical connection 1, connection type = socket, electrical connection 1, straight cable outlet =
This text is machine translated.
This text is machine translated.
