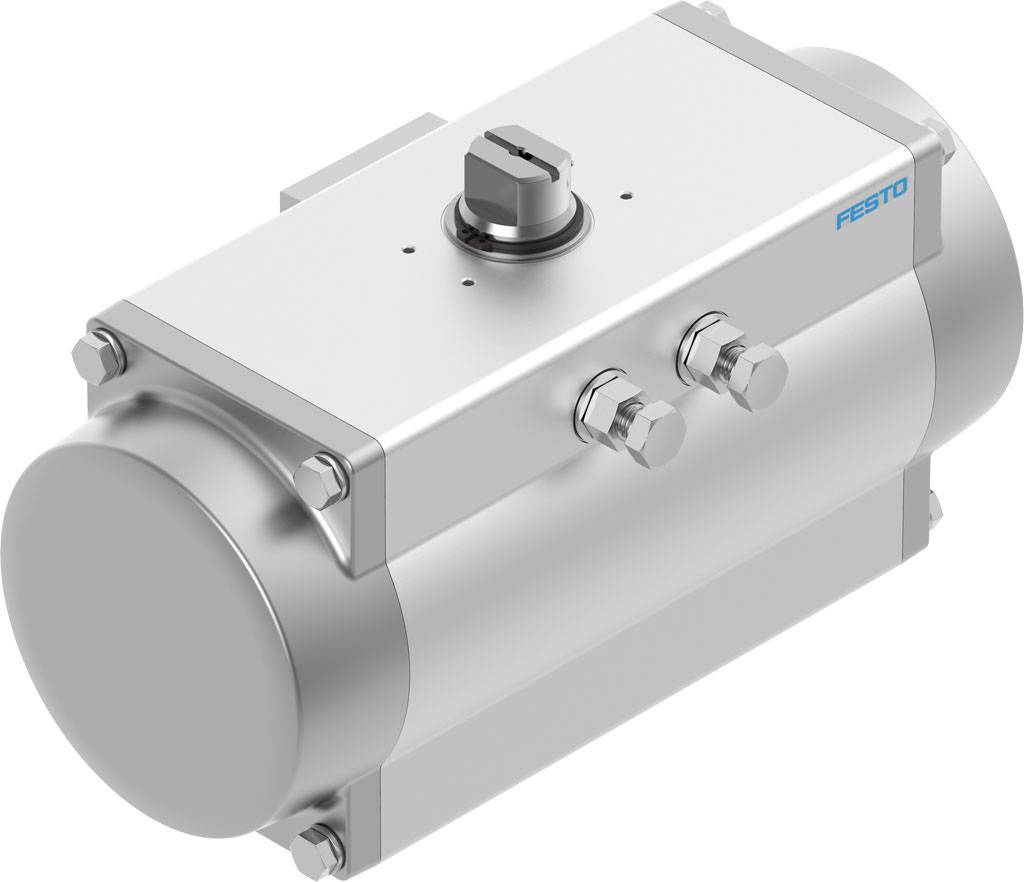

FESTO Rotary actuator 8048152 DFPD-480-RP-90-RS60-F1012-R3-EP Enclosure material: Aluminium wrought alloy 1 pc(s)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,105.00 / piece)
€ 1,105.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Swivel angle: 90 deg
- Design: rack/pinion
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary actuator
- Max. operating pressure
8 bar
- Manufacturer part #
8048152
- Weight
18485 g
- Connection
G1/4"
- Min. operating pressure
2 bar
- Operating medium
Compressed air
- Sealant
NBR
- Enclosure material
Aluminium wrought alloy
- Piston rod material
Aluminium (die-cast)
- Material
Aluminium wrought alloy
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2125020 FESTO Rotary actuator 8048152 DFPD-480-RP-90-RS60-F1012-R3-EP Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Swivel drive DFPD-480-RP-90-RS60-F1012-R3-EP size actuator = 480, flange drilling pattern = F 1012, swivel angle = 90 deg, adjustment range end position at 0° = -5 - 5 deg, adjustment range end position at 90° = -5 - 5 deg
