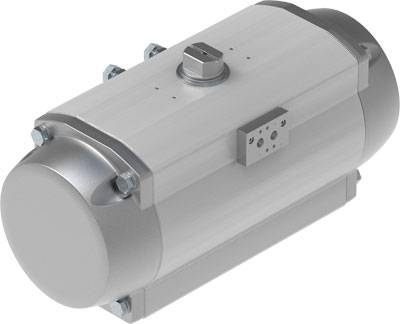

FESTO Rotary actuator 8065271 DFPD-1200-RP-90-RD-F14-R3-EP Enclosure material: Aluminium wrought alloy 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product type
Rotary actuator
- Max. operating pressure
8 bar
- Min. device temperature
-20 °C
- Device temperature (max.)
80 °C
- Manufacturer part #
8065271
- Weight
35834 g
- Operating pressure (min.)
2 bar
- Operating medium
ISO 8573-1:2010 [7:-:-] compliance
- Sealant
NBR
- Pneumatics connector
G1/4"
- Enclosure material
Aluminium wrought alloy
- Piston rod material
Aluminium (die-cast)
- Material
Aluminium wrought alloy
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2800024 FESTO Rotary actuator 8065271 DFPD-1200-RP-90-RD-F14-R3-EP Enclosure material: Aluminium wrought alloy 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2800024 FESTO Rotary actuator 8065271 DFPD-1200-RP-90-RD-F14-R3-EP Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Double-acting swivel drive DFPD-1200-RP-90-RD-F14-R3-EP, design rack pinion, connection diagram according to NAMUR VDI/VDE 3845 for mounting solenoid valves, position feedback detectors and position controllers, standard connection to fitting ISO 5211, epoxy coated, stainless steel shaft. Frame size actuator=1200, flange drill image=F14, swivel angle=90 deg, end position adjustment range at 0°=-5 - 5 deg, end position adjustment range at nominal swivel angle=-5 - 5 deg
