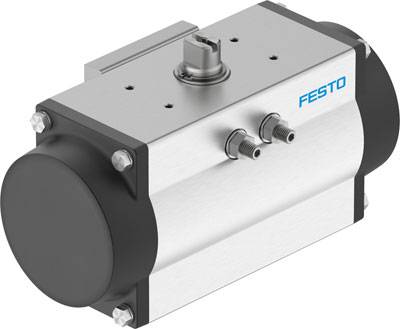

FESTO Rotary actuator 8102809 DFPD-80-RP-90-RS35-F07-R3-C Enclosure material: Aluminium wrought alloy 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product type
Rotary actuator
- Max. operating pressure
8 bar
- Min. device temperature
-20 °C
- Device temperature (max.)
80 °C
- Manufacturer part #
8102809
- Weight
3792 g
- Size
80
- Operating pressure (min.)
2 bar
- Min. operating pressure
2 bar
- Operating medium
Compressed air
- Sealant
NBR
- Pneumatics connector
G1/8"
- Enclosure material
Aluminium wrought alloy
- Piston rod material
Aluminium (die-cast)
- Material
Aluminium wrought alloy
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Single-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2800051 FESTO Rotary actuator 8102809 DFPD-80-RP-90-RS35-F07-R3-C Enclosure material: Aluminium wrought alloy 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2800051 FESTO Rotary actuator 8102809 DFPD-80-RP-90-RS35-F07-R3-C Enclosure material: Aluminium wrought alloy 1 pc(s)
