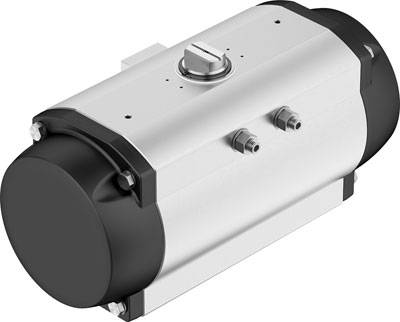

FESTO Rotary actuator 8145412 DFPD-2300-RP-90-RS35-F16-X-R3-C Enclosure material: Aluminium wrought alloy 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product type
Rotary actuator
- Max. operating pressure
8 bar
- Min. device temperature
-20 °C
- Device temperature (max.)
80 °C
- Manufacturer part #
8145412
- Weight
72562 g
- Operating pressure (min.)
2 bar
- Operating medium
ISO 8573-1:2010 [7:-:-] compliance
- Sealant
NBR
- Pneumatics connector
G1/2"
- Enclosure material
Aluminium wrought alloy
- Piston rod material
Aluminium (die-cast)
- Material
Aluminium
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Single-acting
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2800102 FESTO Rotary actuator 8145412 DFPD-2300-RP-90-RS35-F16-X-R3-C Enclosure material: Aluminium wrought alloy 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2800102 FESTO Rotary actuator 8145412 DFPD-2300-RP-90-RS35-F16-X-R3-C Enclosure material: Aluminium wrought alloy 1 pc(s)
Description
Swivel drive DFPD-2300-RP-90-RS35-F16-X-R3-C Frame size actuator=2300, flange drill image=F16, swivel angle=90 deg, end position adjustment range at 0°=-5 - 5 deg, end position adjustment range at nominal swivel angle=-5 - 5 deg
This text is machine translated.
This text is machine translated.
