FESTO Rotary/linear actuator 556718 DSL-32-100-270-CC-A-S20-KF-B Stroke length: 100 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 3,055.00 / piece)
€ 3,055.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

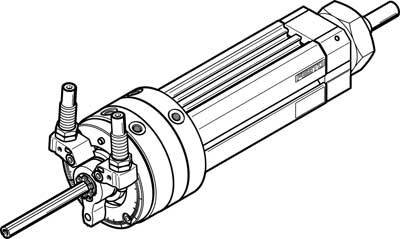

Rotary/linear actuator DSL-32-100-270-CC-A-S20-KF-B
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Rotary/linear actuator
- Stroke length
100 mm
- Max. operating pressure
8 bar
- Material (details)
Aluminum wrought alloy
- Manufacturer part #
556718
- Type
Swivel linear unit DSL -32-100-270-CC-a-S20-KF-B for position detection. Rotary and linear motion control independently of each other. Rotation of 0° - 270° infinitely variable. Loss angle = 12 deg, setting range swivel angle = 0 - 246 deg, Hub = 100 mm, piston diameter = 32 mm, swivel angle = 0 - 246 deg
- Weight
3280 g
- Size
32
- Sealant
TPE-U
- Pneumatics connector
G1/8"
- Piston rod material
Quenched steel
- Piston rod diameter
32 mm
- Force (max.)
403.5 N
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
