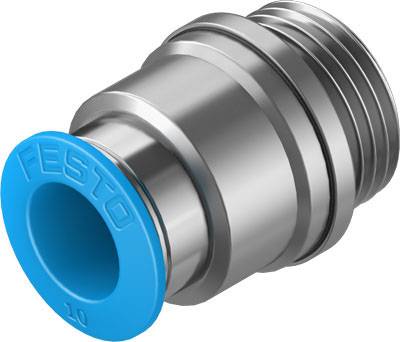

FESTO Screw fastener 186113 QS-G3/8-10-I External thread: G3/8" Pipe diameter: 10 mm Thread size: G3/8" 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
27 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 3.49 / piece)
€ 3.49
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Screw fastener QS-G3/8-10-I
Technical specifications
- Weight: 22 g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- Pipe Ø
10 mm
- Thread size
G3/8"
- External thread
G3/8"
- Manufacturer part #
186113
- Type
Plug-in gland QS-G3/8-10-I External thread with hexagon socket. Size = Standard, nominal width = 7.3 mm, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 10
- Max. operating pressure
6 bar
- Min. operating pressure
-0.95 bar
- Material
Brass (Ni-plated)
- Max. ambient temperature
80 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 1945486 FESTO Screw fastener 186113 QS-G3/8-10-I External thread: G3/8" Pipe diameter: 10 mm Thread size: G3/8" 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1945486 FESTO Screw fastener 186113 QS-G3/8-10-I External thread: G3/8" Pipe diameter: 10 mm Thread size: G3/8" 1 pc(s)
Information
Information 1945486 FESTO Screw fastener 186113 QS-G3/8-10-I External thread: G3/8" Pipe diameter: 10 mm Thread size: G3/8" 1 pc(s)
