FESTO Screw fastener 186151 QSLV-G1/4-8-I External thread: G1/4" Thread size: G1/4" 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
7 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 9.49 / piece)
€ 9.49
incl. VAT
Only 7 Piece(s) available
Only available for business customers
14-day return policy includedHighlights & Details

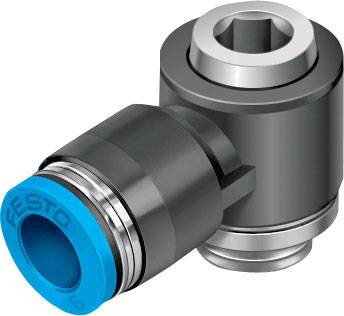

Screw fastener QSLV-G1/4-8-I
Technical specifications
- Weight: 25 g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- Thread size
G1/4"
- External thread
G1/4"
- Manufacturer part #
186151
- Type
L-plug-in gland QSLV-G1/4-8-I 360° can be aligned, outside thread with hexagon socket. Size = Standard, nominal width = 4 mm, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 10
- Max. operating pressure
6 bar
- Min. operating pressure
-0.95 bar
- Material
PBT
- Features
P port connector (G1/4)
- Max. ambient temperature
80 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 1940476 FESTO Screw fastener 186151 QSLV-G1/4-8-I External thread: G1/4" Thread size: G1/4" 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1940476 FESTO Screw fastener 186151 QSLV-G1/4-8-I External thread: G1/4" Thread size: G1/4" 1 pc(s)
Information
Information 1940476 FESTO Screw fastener 186151 QSLV-G1/4-8-I External thread: G1/4" Thread size: G1/4" 1 pc(s)
