FESTO Screw fastener 186270 QSMLL-G1/8-4 External thread: G1/8" Pipe diameter: 4 mm Thread size: G1/8" 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
51 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 3.49 / piece)
€ 3.49
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

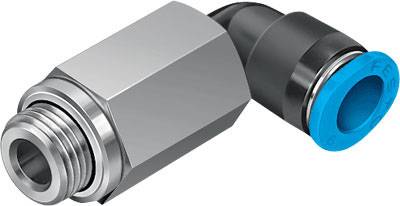

Screw fastener QSMLL-G1/8-4
Technical specifications
- Weight: 23 g
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:-:-]
- Product type
Screw fastener
- Pipe Ø
4 mm
- Thread size
G1/8"
- External thread
G1/8"
- Manufacturer part #
186270
- Type
L-long plug-in gland QSMLL-G1/8-4 360° can be aligned, external thread with hexagon. Size = Mini, nominal width = 2.3 mm, seal type on the screw-in stud = sealing ring, mounting position=any, container size = 10
- Max. operating pressure
6 bar
- Min. operating pressure
-0.95 bar
- Material
PBT
- Features
P port connector (G1/8)
- Max. ambient temperature
80 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 1940372 FESTO Screw fastener 186270 QSMLL-G1/8-4 External thread: G1/8" Pipe diameter: 4 mm Thread size: G1/8" 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1940372 FESTO Screw fastener 186270 QSMLL-G1/8-4 External thread: G1/8" Pipe diameter: 4 mm Thread size: G1/8" 1 pc(s)
