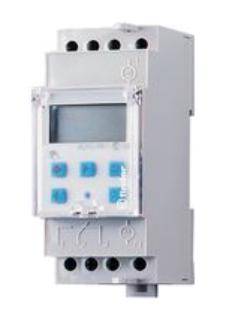

Finder 12.22.8.230.0000-5 - 16A Time Switch N/A 250Vac
Packaging type
Tray
Product type
DIN rail mount timer
Type
Week settings
Contact type
2 change-overs
Switching voltage (max.)
250 V AC
EAN:
Part number:
Item no:
Highlights & Details
TIMER SWITCH 12.22.8.230.0000
Technical specifications
- Connection voltage: 0.85 to 1.1 x UN (at 20 ºC ambient temperature)
- Incandescent lamps (230 V) 2000 W (normally open contact)/compensated fluorescent lamps (230 V) 750 W (normally open contact)/uncompensated fluorescent lamps (230 V) 1000 W (normally open contact)/halogen lamps (230 V) 2000 W (normally open contact)
- Packaging type
Tray
- Product type
DIN rail mount timer
- Type
122282300000
- Type
Week settings
- No. of switching intervals
30
- Power reserve
6 years
- Operating voltage
230 V AC
- Contact type
2 change-overs
- Contact material
AgCdO
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
- Min. temperature
-5 °C
- Max. temperature
+55 °C
IP20
- Width
35.8 mm
- Height
60 mm
- Depth
90 mm
- Dim
(L x W x H) 150 cm x 35.8 mm x 60 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Length
150 cm
- Switching capacity
(AC1) 16 A/250 V/AC, 4000 VA, (AC15, 230 V) 750 VA
- Switching voltage
250 V AC
- Ambient temperature
-5 to +55 °C
- Operating voltage
230 V AC
DIN rail
35.8
60 mm
90 mm
Change-over contact (NO/NC)
2
AC
IP20
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3209594 Finder 12.22.8.230.0000-5 - 16A Time Switch N/A 250Vac
Description
Timer switch for installation in the distribution cabinet, power back-up in case of mains failure, manual switch, insulation to VDE 0730, electronic Electronic, weekly program, 30 memory positions. Operation reserve: 6 years
This text is machine translated.
This text is machine translated.
Hints
CE approved Ratings measured at 50 Hz
